Leviton 278-S00 Dryer Receptacle 30 Amp 125/250V

Product Description

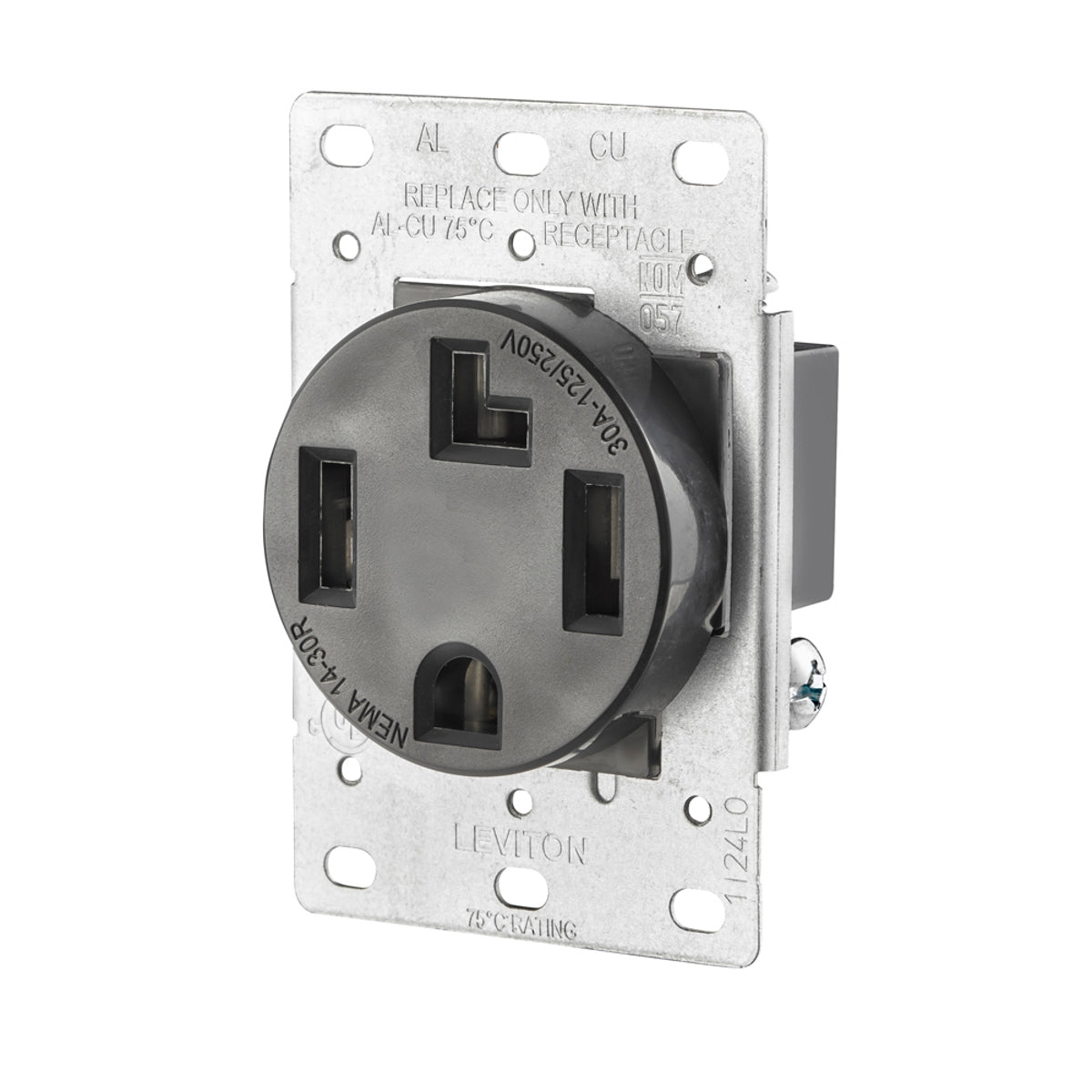

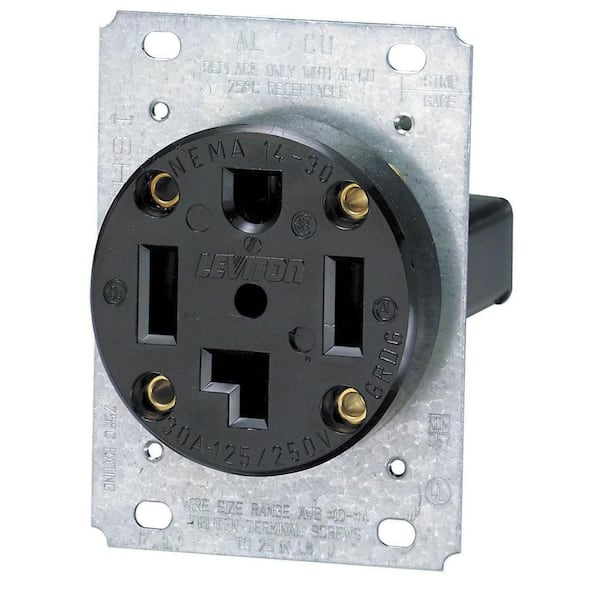

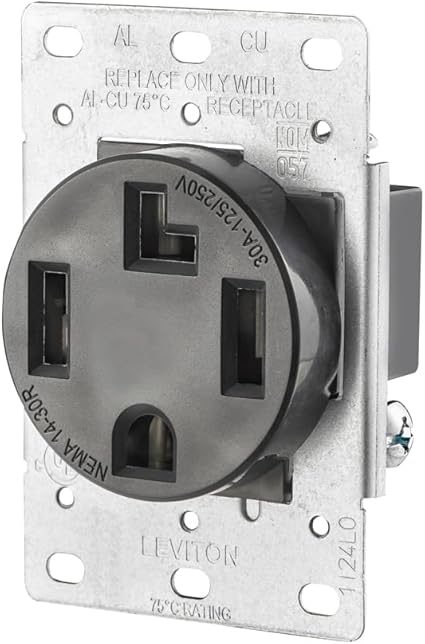

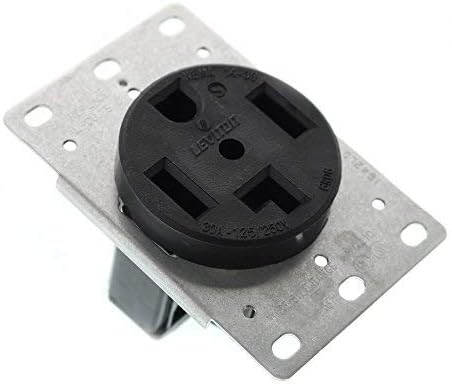

The LEVITON 278-S00 is a 30A, 125/250V flush mount dryer receptacle. Constructed from thermoplastic, this industrial grade receptacle features heavy gauge, double wire copper alloy contacts. Terminals are marked for easy identification and fast wiring. It fits all wallplates with 2.15" diameter center hole and mounting hardware is included.

• 30 Amp, 125/250 Volt
• NEMA 14-30R configuration
• Industrial Grade

Product Highlights

This receptacle is ideal for ranges, dryers, combo washer/dryers, generators, welders and other heavy-duty power applications.

Product Information

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: 278-S00
• Country of Origin: Mexico

Technical Specifications

• Color: Black
• Voltage: 125/250 VAC
• Material: Thermoplastic
• Power Source: Wired Electric
• Mounting Type: Flush
• Amperage Rating: 30 A
• Number of Poles: 3
• Number of Wires: 4
• NEMA Rating: NEMA 14-30R
• Grade: Industrial
• Terminal Type: Side Wire
• Temperature Rating: -40 to 60 deg C
• Horsepower: 2 hp
• Country of Origin: Mexico
• RoHS Compliant: Yes
• Grounding: Grounding
• Body Material: Polypropylene
• Face Material: Polypropylene
• Line Contacts: Brass Double-Wipe
• Strap Material: Galvanized Steel
• Torque Range: 40 in-lbs.
• Flammability: Rated V-2 per UL 94
• Terminal Accom.: #4 AWG
• Current Limiting: Full Rated Current
• Temperature Rise: Max 30C after 50 cycles OL at 150 percent rated current
• Dielectric Voltage: Withstands 2000V per UL498
• Operating Temperature: -40 C to 60 C
• Standards: UL 498, 486E Listed, CSA 22.2 No 42, C22.2 No.14, C22.2 No.65, NEMA WD-6, ANSI C-73, NOM Certified, TSA E13399
• Style: Single
• Dielectric Strength: 2000 Volt
• Conductor Size: 4 AWG
• Environmental Conditions: V2 Flammability Rated Per UL94
• Contact Material: Double-Wipe Brass
