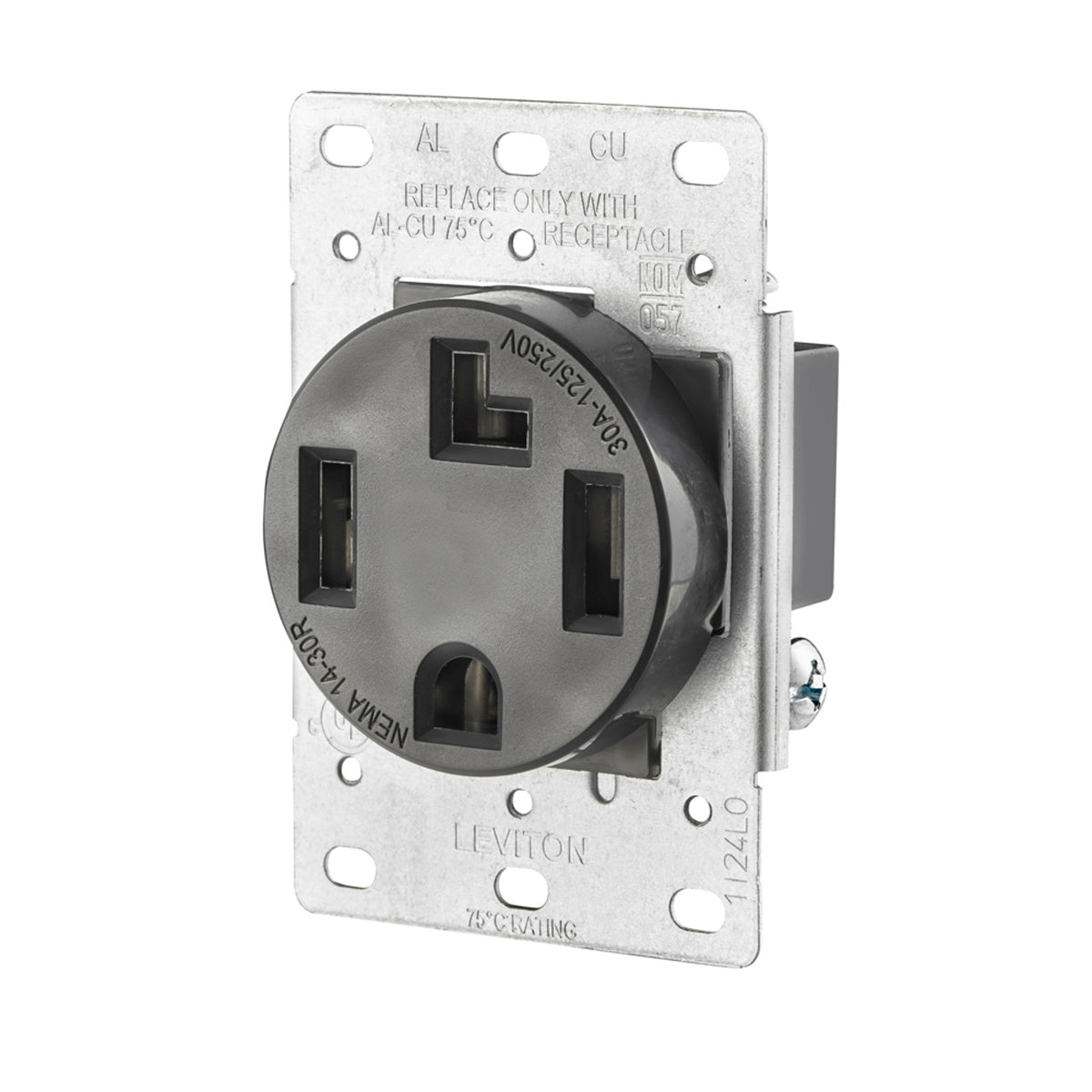

Leviton 278-S Shallow Single Receptacle 30A 125/250V (Flush Mount) 955424

Product Description

Leviton 278-S is a shallow-design, industrial-grade single receptacle rated 30 A at 125/250 V with NEMA 14-30R configuration. It provides a three-pole, four-wire grounded connection for single-phase applications and is intended for flush mounting in compatible wallplates.

• Rated 30 A, 125/250 V AC; NEMA 14-30R three-pole, four-wire (3P4W) grounding configuration
• Shallow design for flush mounting with side-wired terminals, screw mounting and #4 AWG terminal accommodation; terminals require 40 in-lbs torque
• Industrial-grade construction with brass double-wipe line contacts, galvanized steel strap, temperature range -40�C to 60�C, and multiple safety certifications

Product Highlights

Industrial-grade shallow flush-mount receptacle, 3P4W NEMA 14-30R, 30 A 125/250 V, side wired, 40 in-lbs torque, manufacturer part 955424

Product Information

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: 278-S
• Country of Origin: Mexico

Technical Specifications

• Brand: Leviton
• Manufacturer Part Number: 278-S
• Alternate Manufacturer Part Number: 955424
• Product Type: Single receptacle
• NEMA Configuration: 14-30R
• Amperage: 30 A
• Voltage: 125/250 V AC
• Poles: 3
• Wires: 4
• Grounding: Yes
• Grade: Industrial
• Mounting Type: Flush mount; screw mounting
• Wiring Method: Side wired
• Terminal Accommodation: #4 AWG
• Terminal Torque: 40 in-lbs
• Body Material: Polypropylene
• Face Material: Polypropylene
• Strap Material: Galvanized steel
• Line Contacts: Brass double-wipe
• Temperature Range: -40�C to 60�C
• Flammability Rating: V-2 per UL 94
• Dielectric Withstand: 2000 V per UL 498
• AC Horsepower Rating: 2 HP at rated voltage
• RoHS Compliant: Yes
• Standards and Certifications: ANSI C73; CSA C22.2 No.42, C22.2 No.14, C22.2 No.65; UL 498, UL 486E; NEMA WD-6; NOM - ANCE; File E13399
• UNSPSC Code: 39121400
• Number of Phases: 1 Phase
