Product Description

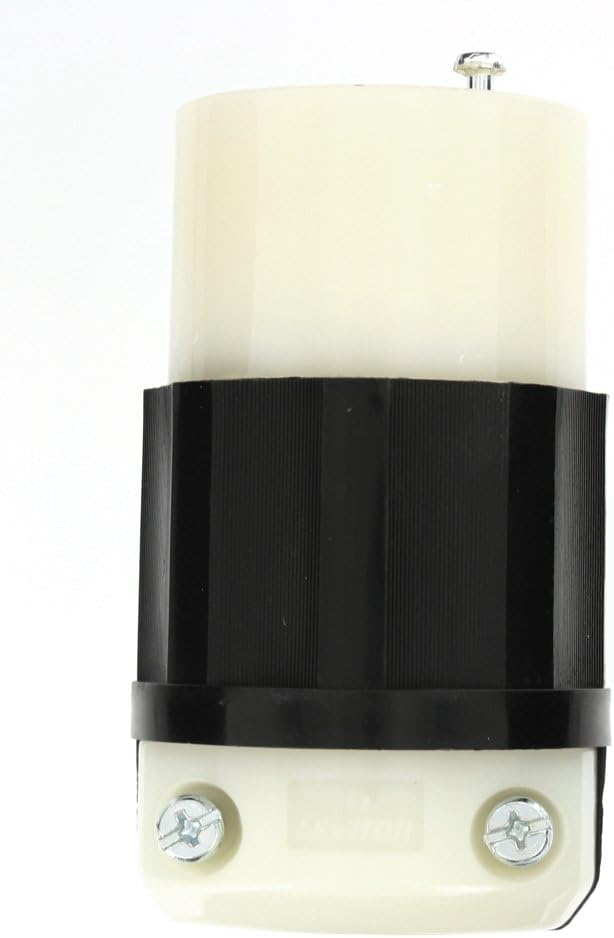

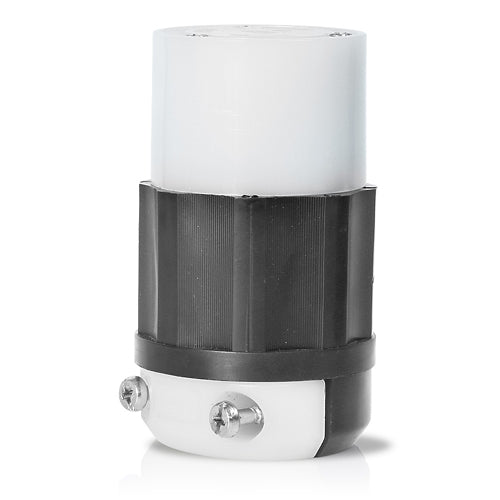

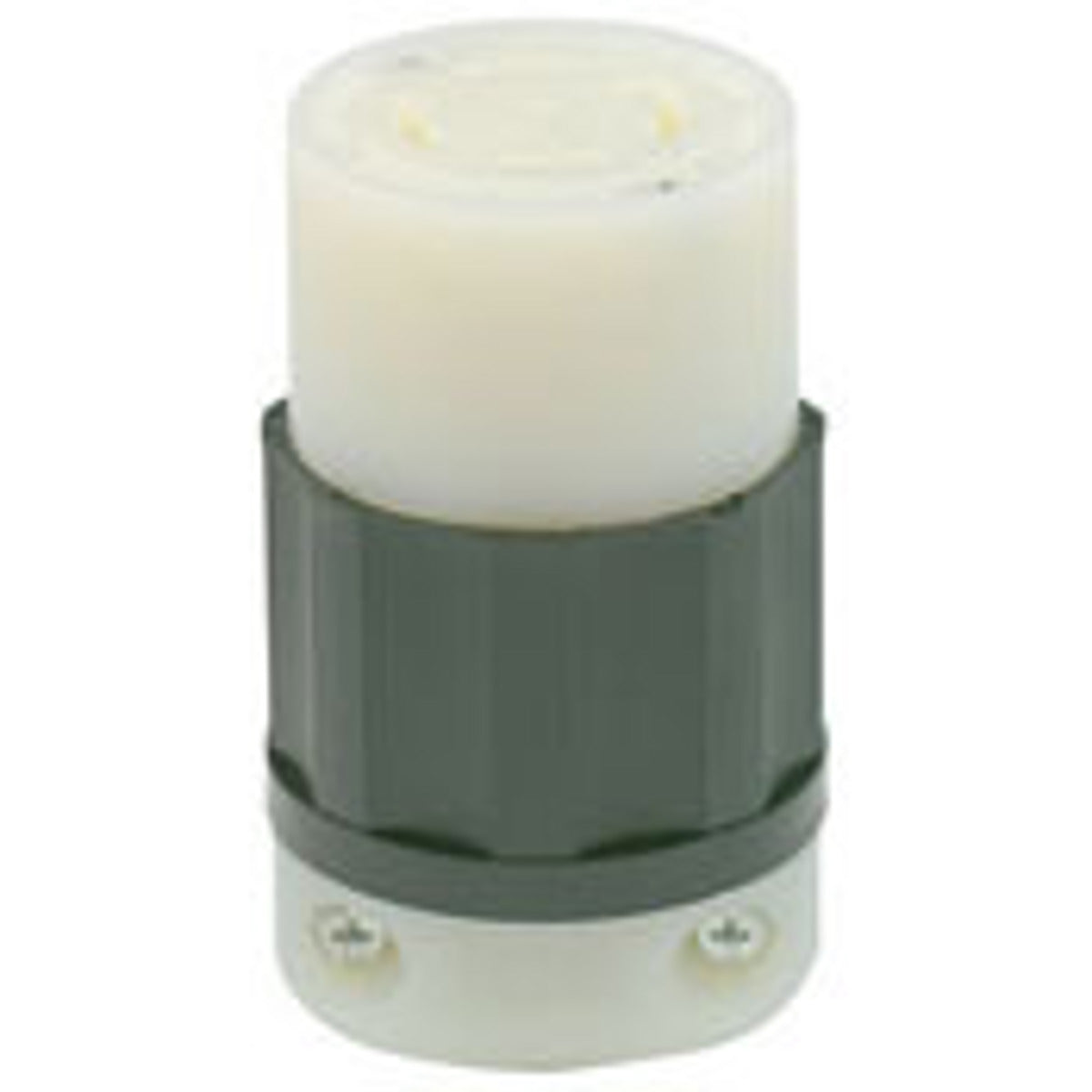

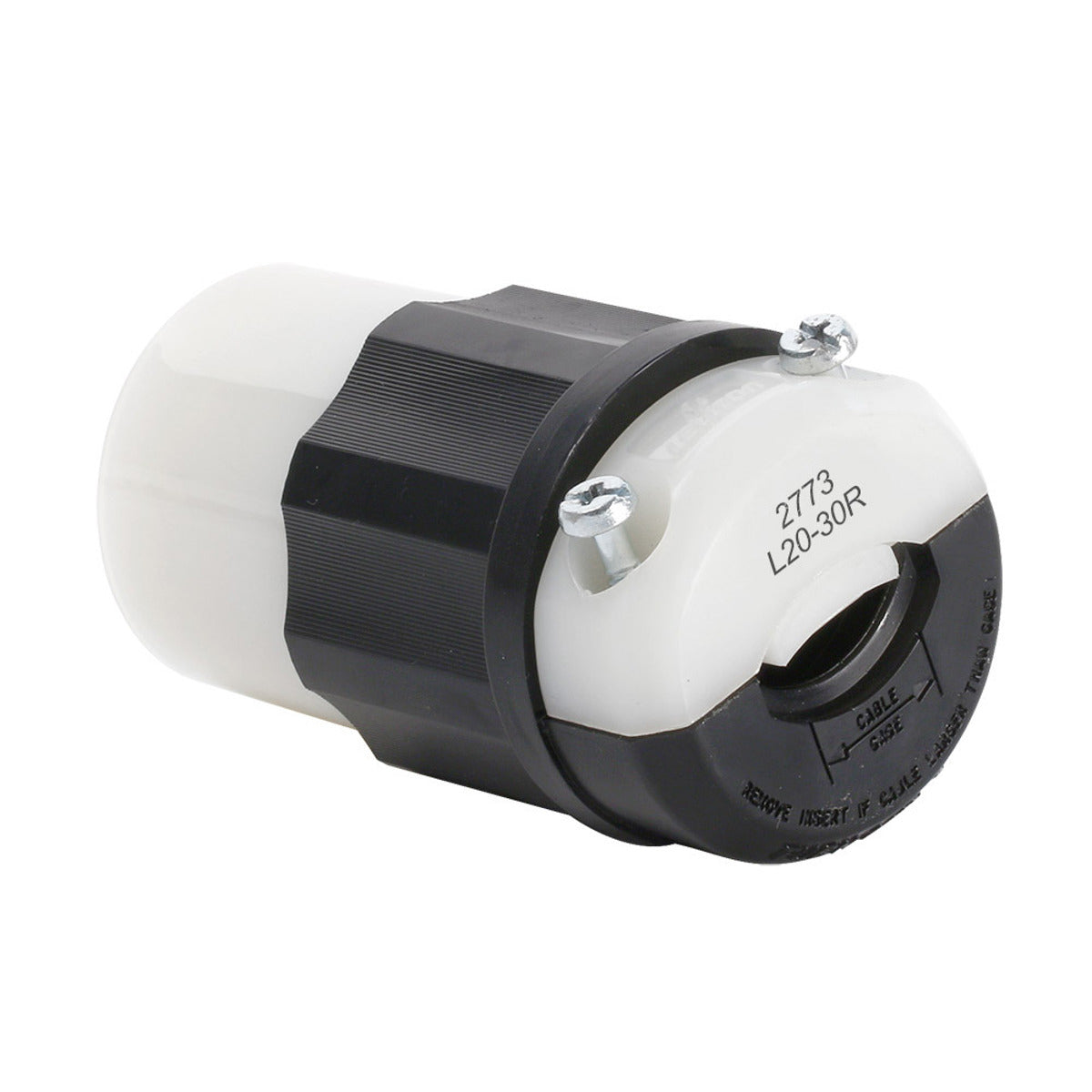

The Leviton 2773 is a 30 Amp, 347/600 Volt, NEMA L20-30R locking connector designed for industrial applications. This non-grounding connector features a durable nylon construction and screw terminal connections. It is suitable for use in dry environments within a temperature range of -40°C to 60°C.
- One piece contacts reduce friction and overheating
- Unique cord clamp accepts wide range of cord sizes
- Rugged nylon construction resists impact, sunlight, chemicals, and rough use
Product Highlights
Industrial grade locking connector with robust construction and reliable performance.
Product Information
Standard Information
-
Brand: Leviton
-
Manufacturer Part Number: 2773
-
Country of Origin: Mexico
Technical Specifications
-
Voltage: 600 Volts
-
Material: Nylon
-
Certification: NEMA
-
Batteries Required?: No
-
Catalog Number: 2773
-
Manufacturer: Leviton
-
Brand: Leviton
-
Sub Brand: Black & White
-
Country of Origin: Mexico
-
Made in USA: No
-
Amperage Rating: 30
-
Application: Industrial
-
Connection: Screw Terminal
-
Mounting: Cable
-
NEMA Rating: L20-30R
-
Number of Poles: 4
-
Number of Wires: 4
-
Phase: 3
-
Standard: NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA Certified (File LR-406);UL Fed Spec WC-596 (File E13393);UL498 (File E13393)
-
UPC: 078477808504
-
GTIN: 00078477808504
-
Item Type: Locking Connector
-
Environmental Conditions: Flammability (Rated V-2 per UL 94);Operating Temperature Range (-40 to +60 DEG C)
-
Voltage Rating: 347;600
-
Wire Size: 18-10 AWG
-
RoHS Compliant: Yes
-
Amperage: 30 A
-
Current Interrupting: Certified for current interrupting at full rated current
-
Dielectric Voltage: Withstands 2000V per UL498
-
Grounding: Non-Grounding
-
Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
-
Wire: 4
-
Environment: Dry
-
Flammability: Rated HB or better UL94
-
Operating Temperature: -40°C to 60°C
-
Assembly Screws: Steel, Zinc Plated
-
Back Cover: Thermoplastic
-
Blades/Contacts: Solid Brass
-
Body Material: Impact Modified Nylon
-
Clamp Insert: Nylon
-
Cord-Clamp: Nylon
-
Terminal Screws: Brass
-
Wire Module: Nylon
-
Cord Range: .595 - 1.150
-
Product ID: Ratings are permanently marked on device
-
Terminal Accom.: 18-10 AWG
-
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
-
Torque Range: 10-14 in-lbs
-
Wire Gauge: 14-8 AWG
-
Device Type: Locking Connector
-
NEMA: WD-6
-
ANSI: C-73
-
CSA C22.2 No. 42: File LR-406
-
NOM: 057
-
UL Fed Spec WC-596: File E13393
-
UL498: File E13393
-
Contact Type: Socket
-
Current Rating: 30 A
-
Grade: Industrial
-
Manufacturer Part Number: 2773
-
NEMA Type: L20-30R
-
Numeric ID: 2510411
-
Primary Type: Twist Lock
-
Termination: screw
-
Type: Locking Socket
