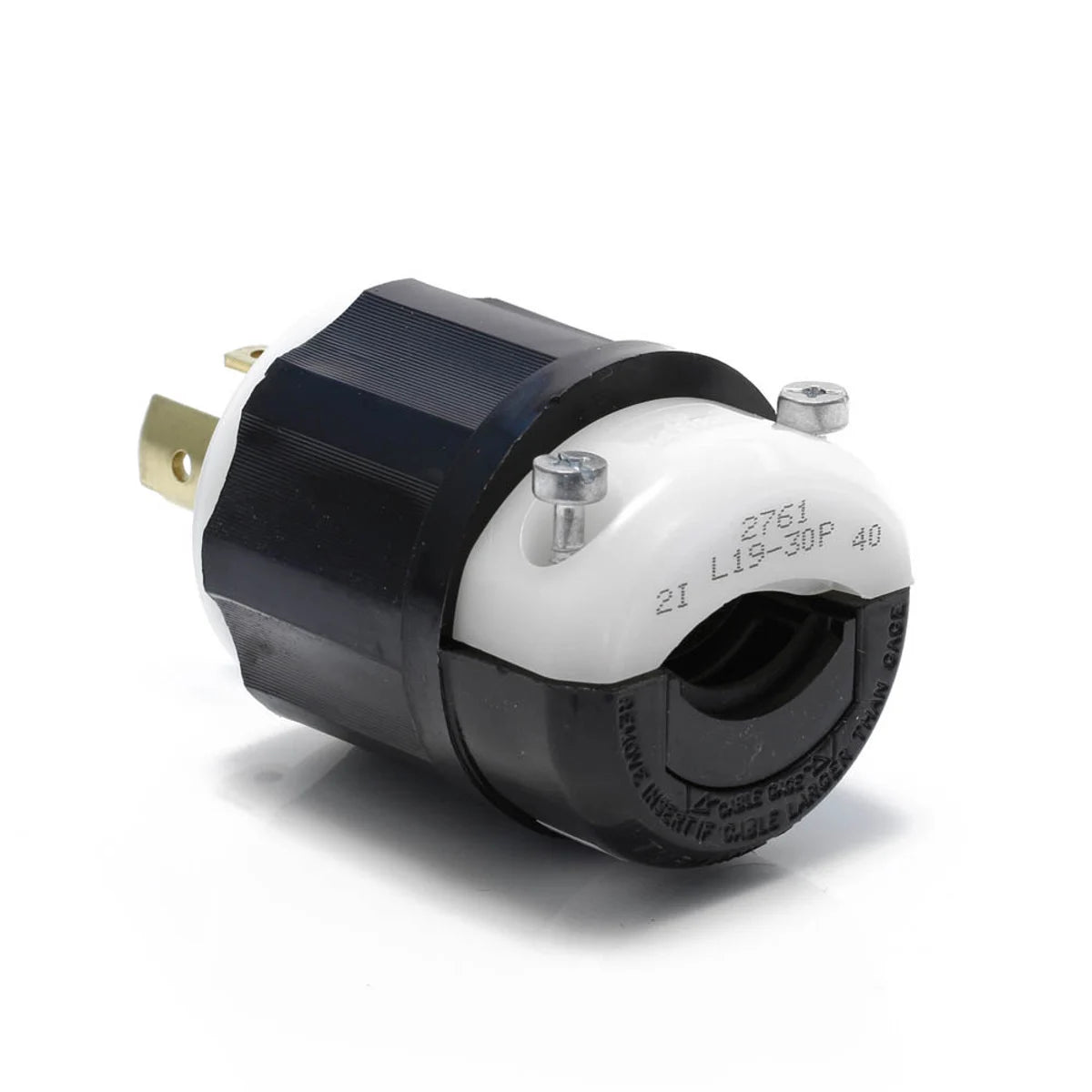

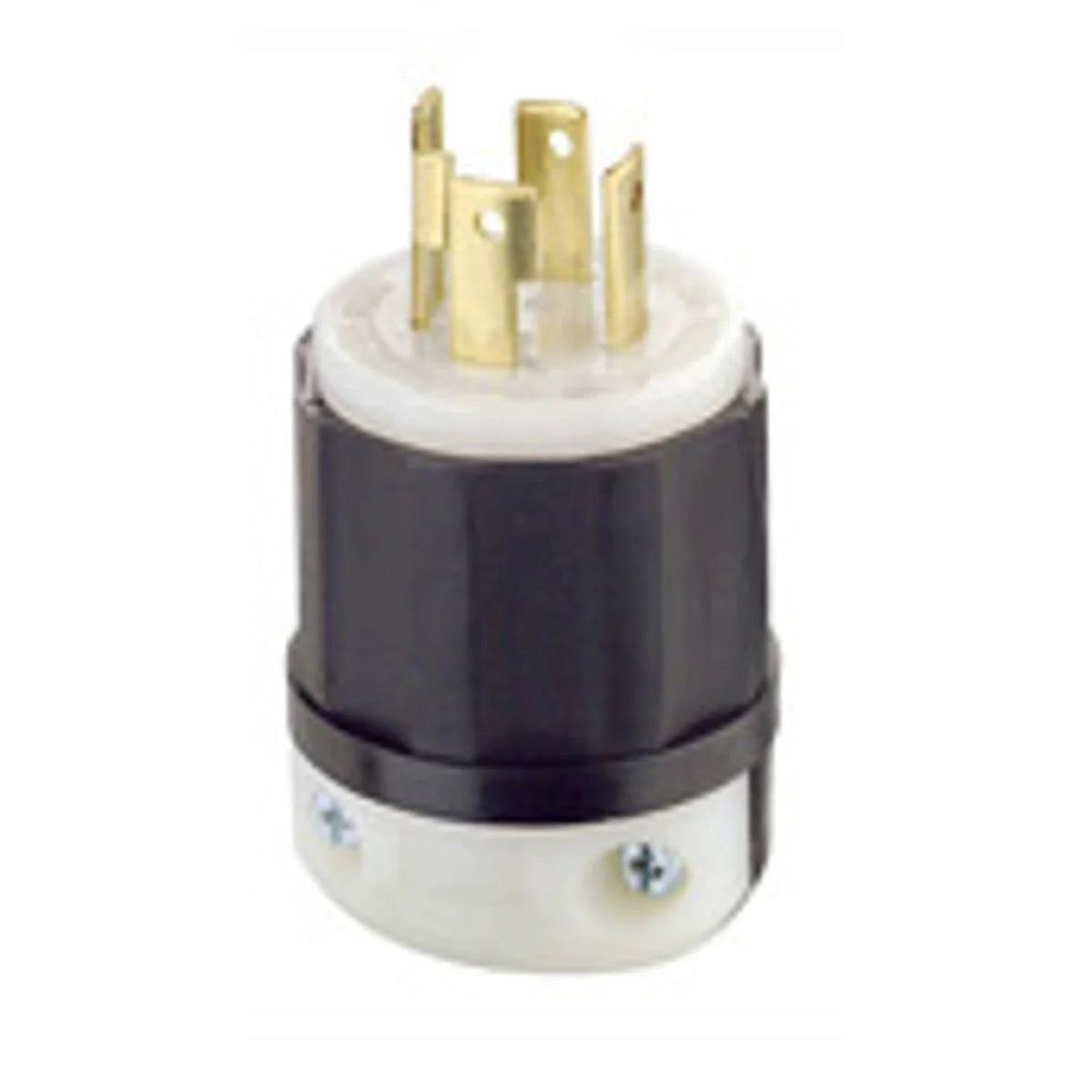

Leviton 2761 Locking Plug 30 Amp 277/480 Volt NEMA L19-30P

Product Description

Leviton, 2761, is a locking plug designed for 3-phase non-grounding applications. It is rated for 277/480 VAC and 30 Amperes. The plug has four poles and four wires, making it suitable for industrial use. This plug adheres to NEMA L19-30P standards.

• Durable nylon construction
• Compatible with cord diameters from 0.595 to 1.15 inches
• Temperature rated from -40 to 60 degrees Celsius

Product Highlights

This industrial-grade plug ensures secure connections in various applications. Its screw terminal design allows for easy installation.

Product Information

Standard Information

• Brand: Leviton
• Catalog Number: 2761

Technical Specifications

• Voltage Rating: 277/480 VAC
• Amperage Rating: 30 A
• Horsepower: 10 hp
• Material: Nylon
• Number of Poles: 4
• Number of Wires: 4

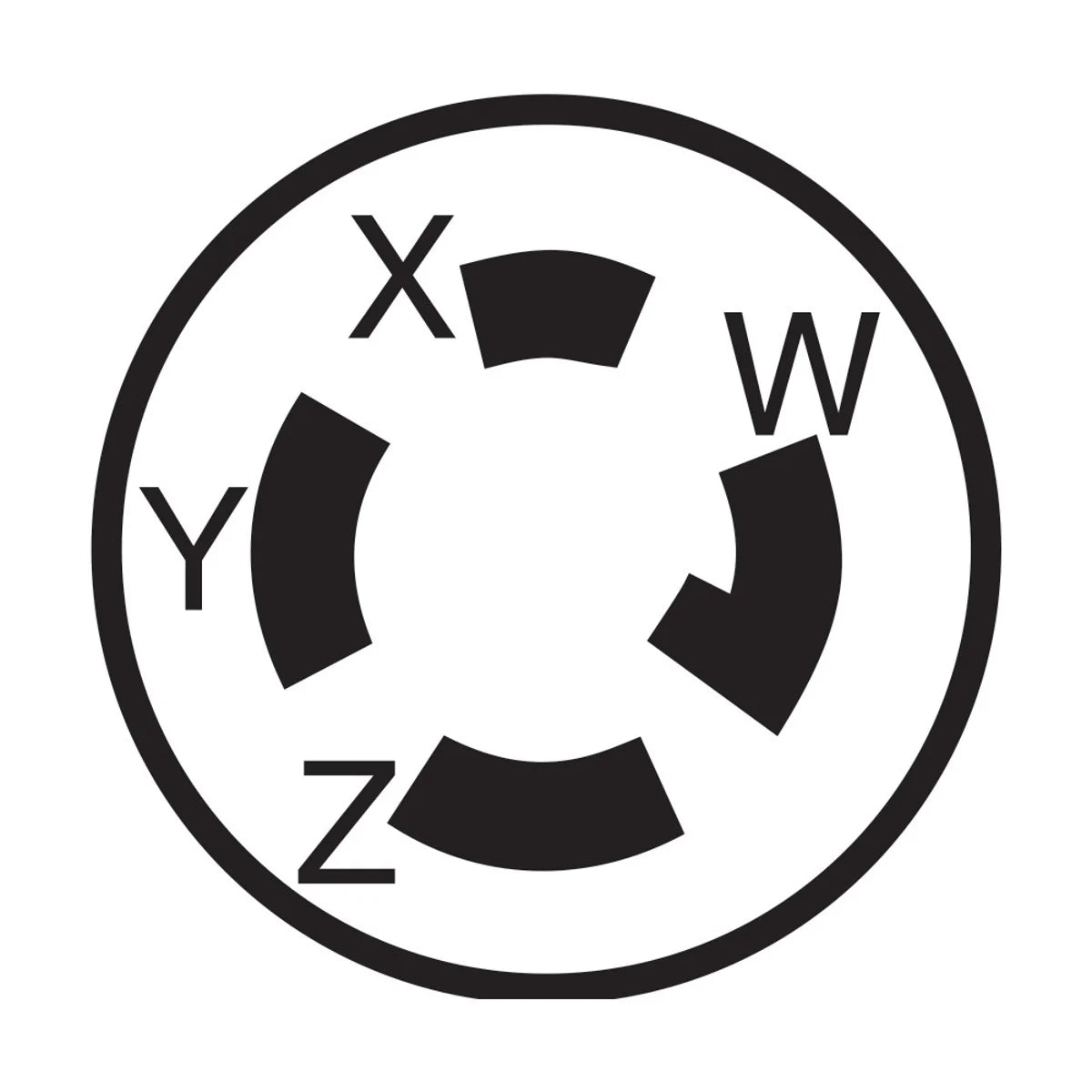

• NEMA Rating: L19-30P
• Temperature Rating: -40 to 60 degrees Celsius
• Application: Industrial
• Connection Type: Screw Terminal
• Rated for Cords of Diameter: 0.595 to 1.15 inches
• Environmental Conditions: Flammability rated V-2 per UL 94
• Country of Origin: Mexico
