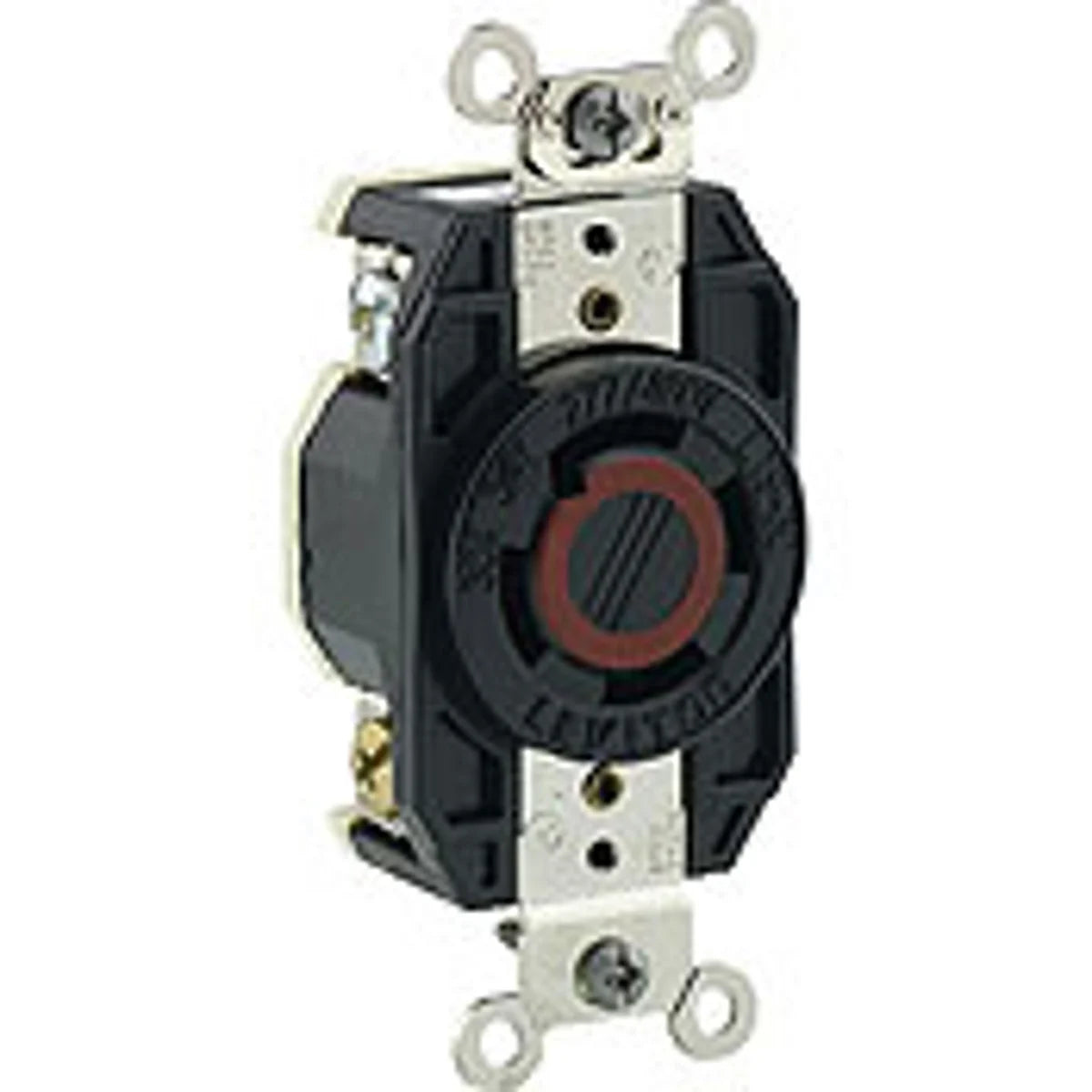

Leviton 2760 Locking Device Receptacle 30 Amp 277/480 Volt 3PH-Y 4P 4W

Product Description

The Leviton 2760 Locking Device Receptacle is designed for use in industrial environments. It operates at a voltage of two hundred seventy-seven to four hundred eighty volts and can handle a current of thirty amps. This product is suitable for applications that require reliable power connections.

• Rated for industrial applications
• Back and side wire connections
• Constructed from durable materials for long life

Product Highlights

The 2760 model is engineered to meet the needs of heavy-duty applications, ensuring safety and reliability in power delivery.

Product Information

Standard Information

• Catalog Number: 2760
• Manufacturer: Leviton

Technical Specifications

• Voltage Rating: 277;480 VAC
• Amperage Rating: 30 A
• Number of Poles: 4
• Number of Wires: 4
• NEMA Rating: L19-30R
• Material: Polybutylene Terephthalate
• Mounting Type: Flush mount
• Temperature Rating: -40 to +60 degrees Celsius
• Environmental Conditions: Flammability (Rated V-2, Rated V-0 per UL94)
• Wire Size: 14-8 AWG
