Product Description

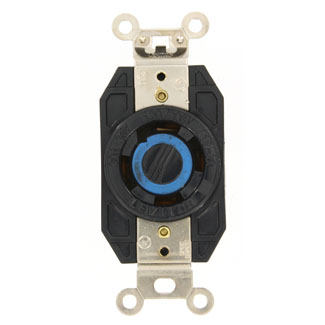

The Leviton 2750 is a locking receptacle designed for industrial applications, rated for 120/208 volts and 30 amps. This device features a four-pole, four-wire NEMA L18-30R configuration, providing reliable electrical connections in demanding environments.
- Robust construction for industrial use
- Compatible with wire sizes from fourteen to eight AWG
- Meets various safety and performance standards
Product Highlights
This locking receptacle offers durability and safety, making it suitable for high abuse applications.
Product Information
Standard Information
-
Brand: Leviton
-
Manufacturer: Leviton Mfg Co
Technical Specifications
-
MPN: 2750
-
NEMA Rating: L18-30R
-
Amperage: 30 A
-
Voltage: 120/208 Volt
-
Horsepower: 3 hp
-
Number of Poles: 4
-
Number of Wires: 4
-
Material: Polybutylene Terephthalate
-
Environmental Conditions: Corrosive
-
Temperature Rating: -40 to 60 degrees C
-
Mounting Type: Flush
-
Dielectric Strength: 2000 V
-
Grounding Type: Non-Grounding
-
Wire Connection Type: Back Wired; Side Wired
-
Product UPC: 078477045923
