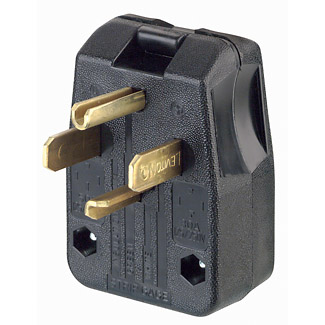

Leviton 275-E Straight Blade Angle Plug 125/250 VAC 30/50 Amp

Product Description

Leviton offers the 275-E Straight Blade Angle Plug. This plug supports 125/250 VAC and can handle 30/50 Amp loads. It features three poles and four wires, making it suitable for a range of applications.

• Moisture, chemical, and abuse-resistant.
• Designed for both indoor and outdoor use.
• Compatible with 14-30P/14-50P NEMA ratings.

Product Highlights

The Leviton 275-E plug is built with a thermoplastic body, ensuring durability and longevity. It features a backed-out/deep slotted terminal for secure connections and maximum conductivity. Ideal for both residential and commercial settings, it can be used in various industrial applications.

Product Information

Standard Information

• Type: Grounding
• Grade: Commercial

Technical Specifications

• Catalog Number: 275-E
• Manufacturer: Leviton
• Voltage Rating: 125/250 VAC
• Amperage Rating: 30/50 A
• Number of Poles: 3
• Number of Wires: 4
• Temperature Rating: -40 to 60 degrees F
• Dimensions: 3.49 in L x 2.56 in W
• NEMA Rating: 14-30P/14-50P
• Weight: 0.64 lbs
