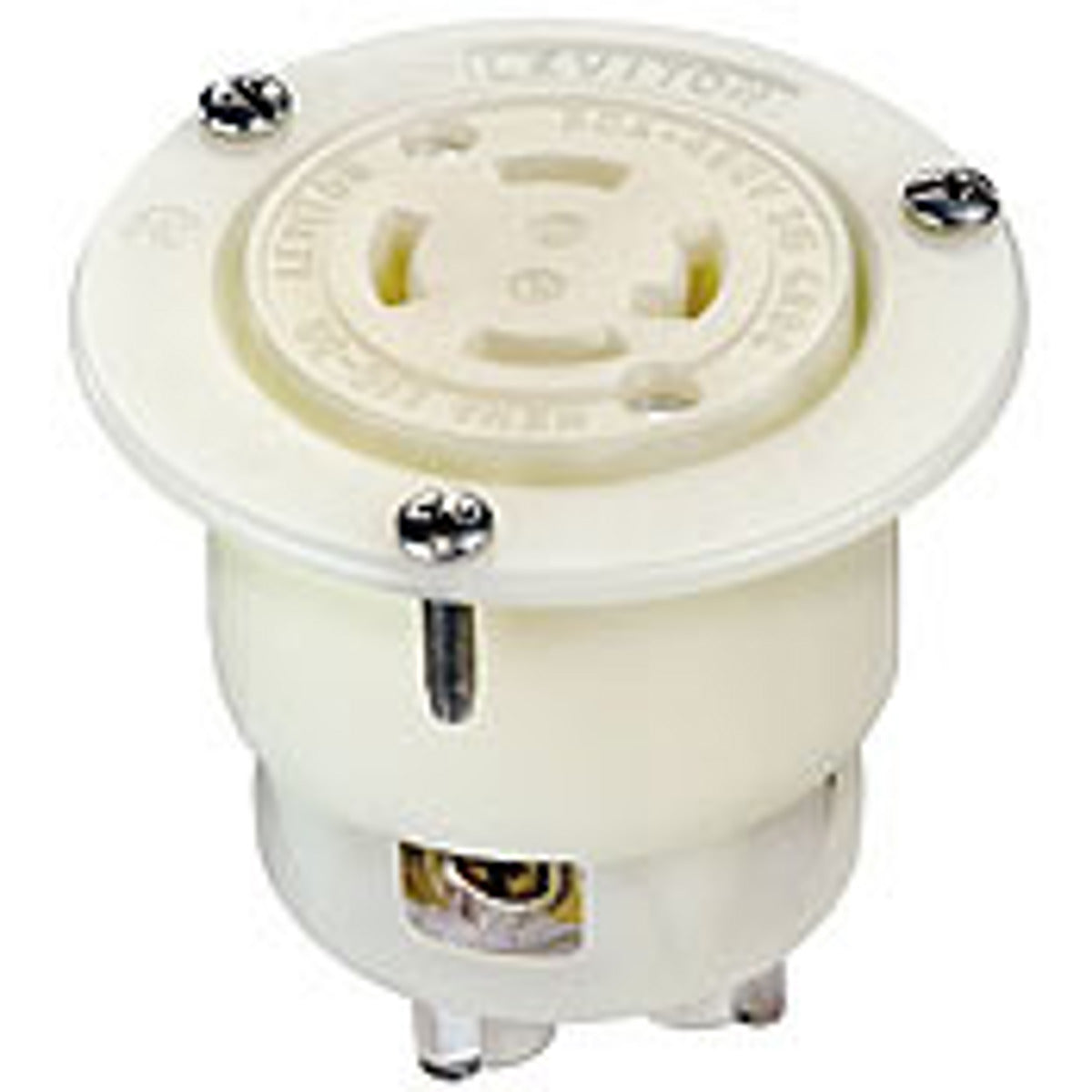

Leviton 2736 Locking Flanged Outlet 30 Amp 480 Volt 3PY Replacement MPN

Product Description

Leviton offers the 2736 Locking Flanged Outlet, a reliable choice for industrial applications. This receptacle supports 30 Amps and operates at 480 Volts for efficient power distribution. It's designed for 3-phase grounding with a NEMA L16-30R rating, ensuring compatibility with various commercial settings.

• Application: Commercial use
• Temperature Rating: -40 to +60 degrees Celsius
• Color: White with nylon material

Product Highlights

This locking outlet is ideal for environments requiring durable and safe connections. It includes features that enhance safety and ease of installation.

Product Information

Standard Information

• Manufacturer: Leviton
• Catalog Number: 2736

Technical Specifications

• Amperage Rating: 30 A
• Voltage Rating: 480 VAC
• Number of Poles: 3
• Number of Wires: 4
• Environmental Conditions: Flammability rated V-2 per UL94
• Material: Nylon
• Mounting: Flange
• NEMA Rating: 6
• Size: 33 inches diameter
• Wire Size: 16-8 AWG
• Standards/Approvals: ANSI C73, CSA C22.2 No. 42, UL 498
