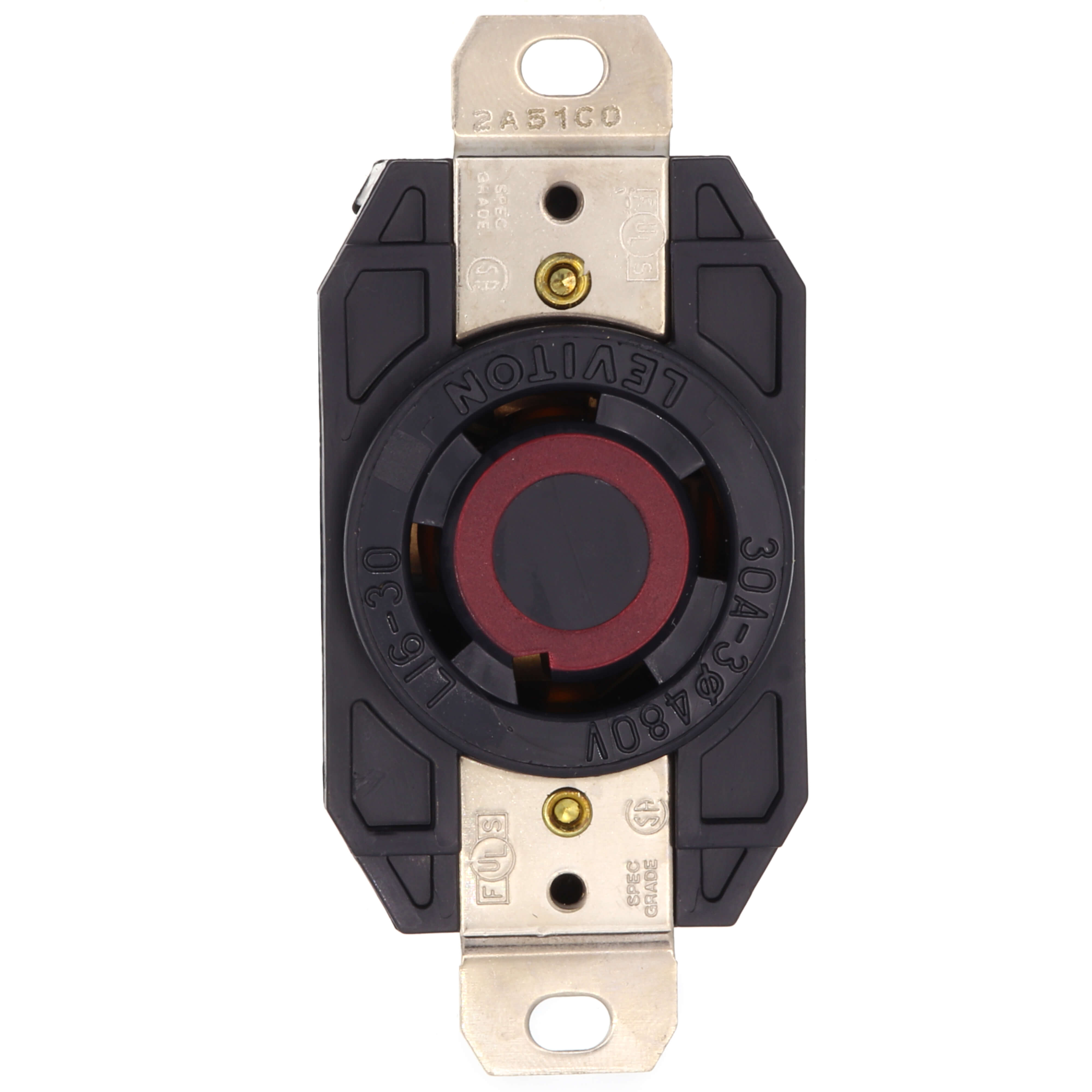

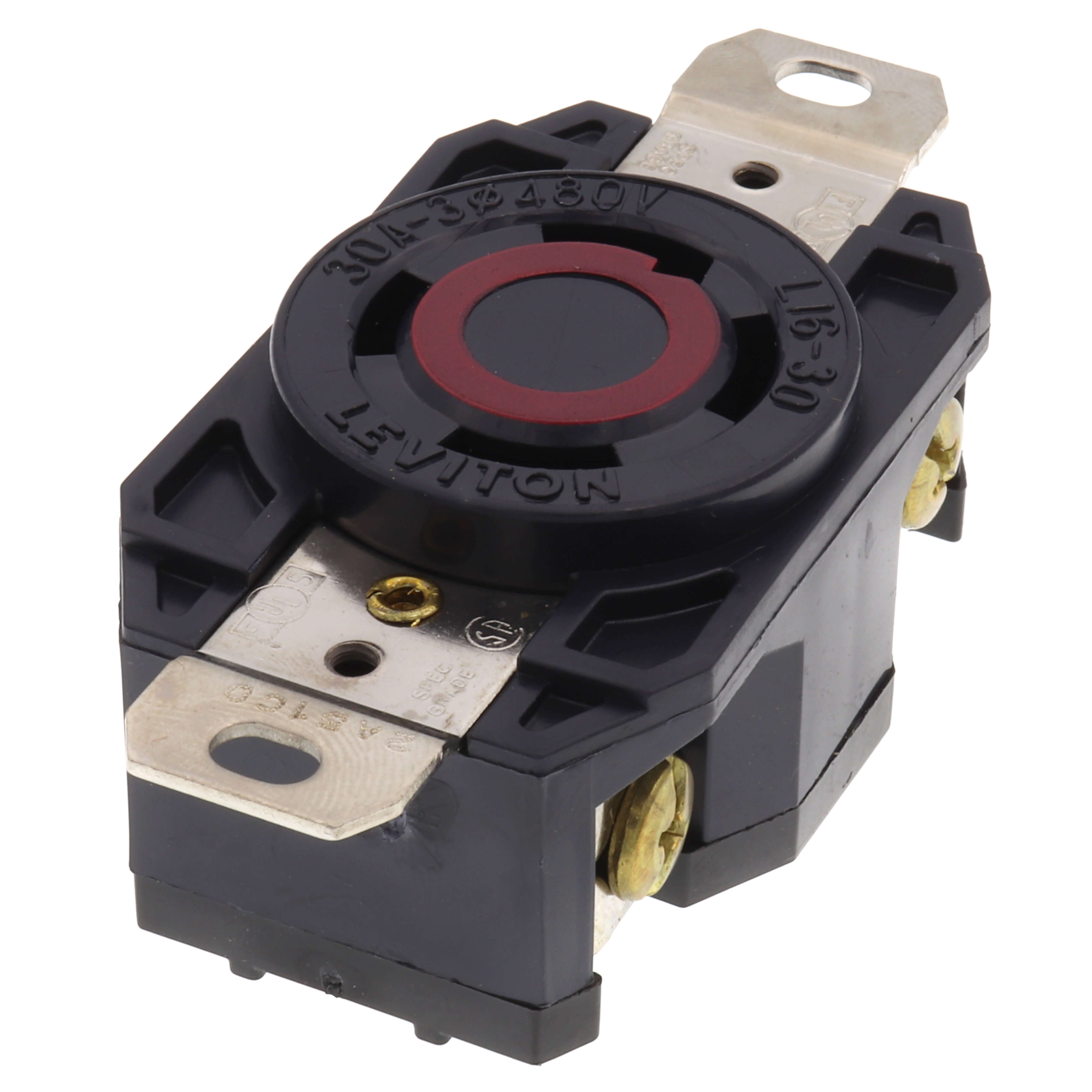

Leviton 2730 Locking Receptacle 30 Amp 480 Volt 3-Phase 4 Wire NEMA L16-30R

Product Description

Leviton 2730 is a locking receptacle designed for use in demanding industrial settings. This industrial-grade device supports three-phase applications at 30 amperes and 480 volts. Built with superior materials, the Leviton 2730 provides secure connections and reliable performance.

• Rated for 30 amps and 480 volts
• NEMA L16-30R configuration

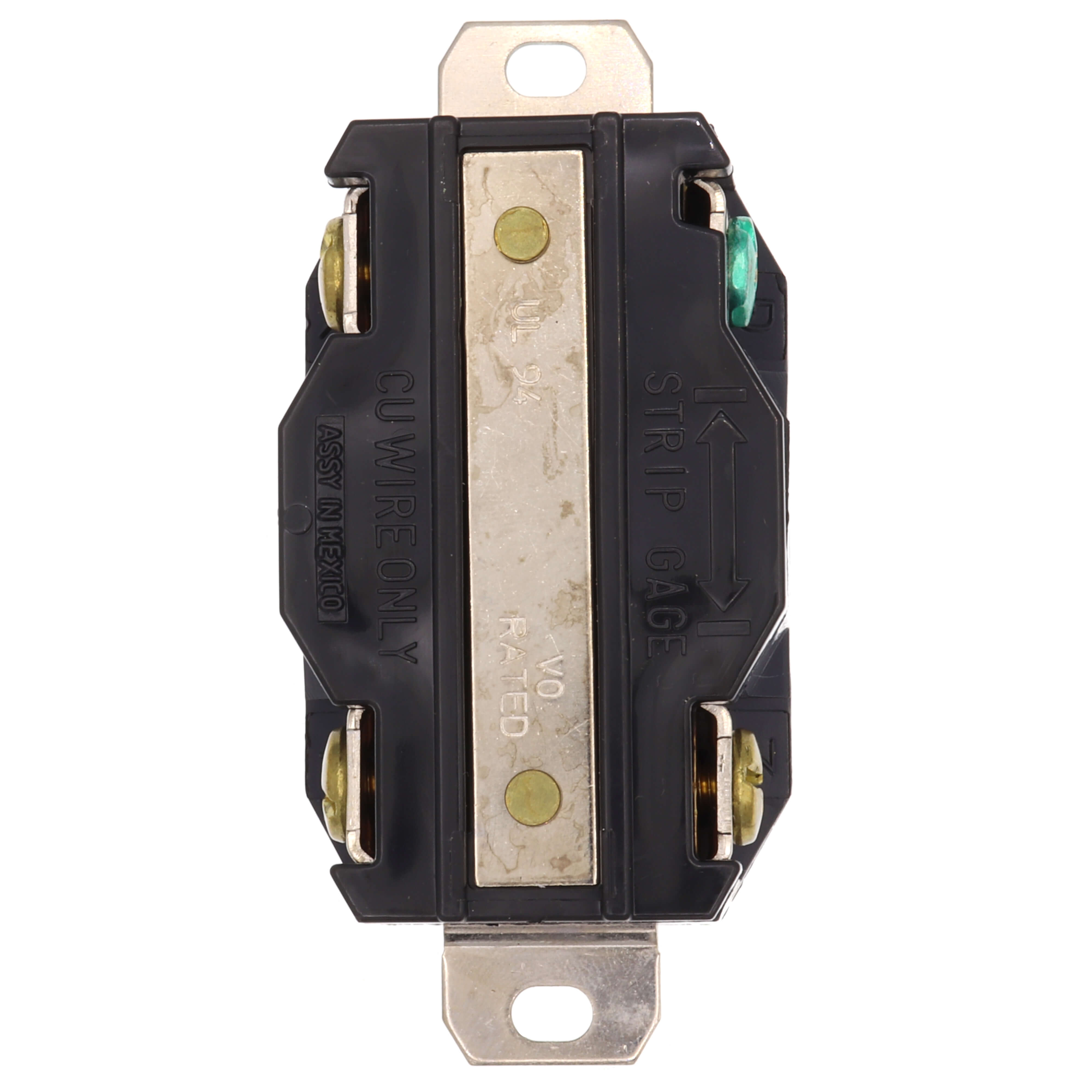

• Back and side wire terminal connections

Product Highlights

Leviton 2730 locking receptacles are constructed for durability and dependability in various industrial environments. The V-0-MAX rating ensures high flammability resistance.

Product Information

Standard Information

• Manufacturer: Leviton
• Part Number: 2730

Technical Specifications

• Amperage Rating: 30 A
• Voltage Rating: 480 VAC
• Number of Poles: 3
• Number of Wires: 4
• Grade: Industrial
• NEMA Rating: L16-30R
• Material: Polybutylene Terephthalate
• Temperature Rating: -40 to 60 degrees C
• Dimensions: 3.63 inches H x 1.69 inches W x 1.31 inches D
