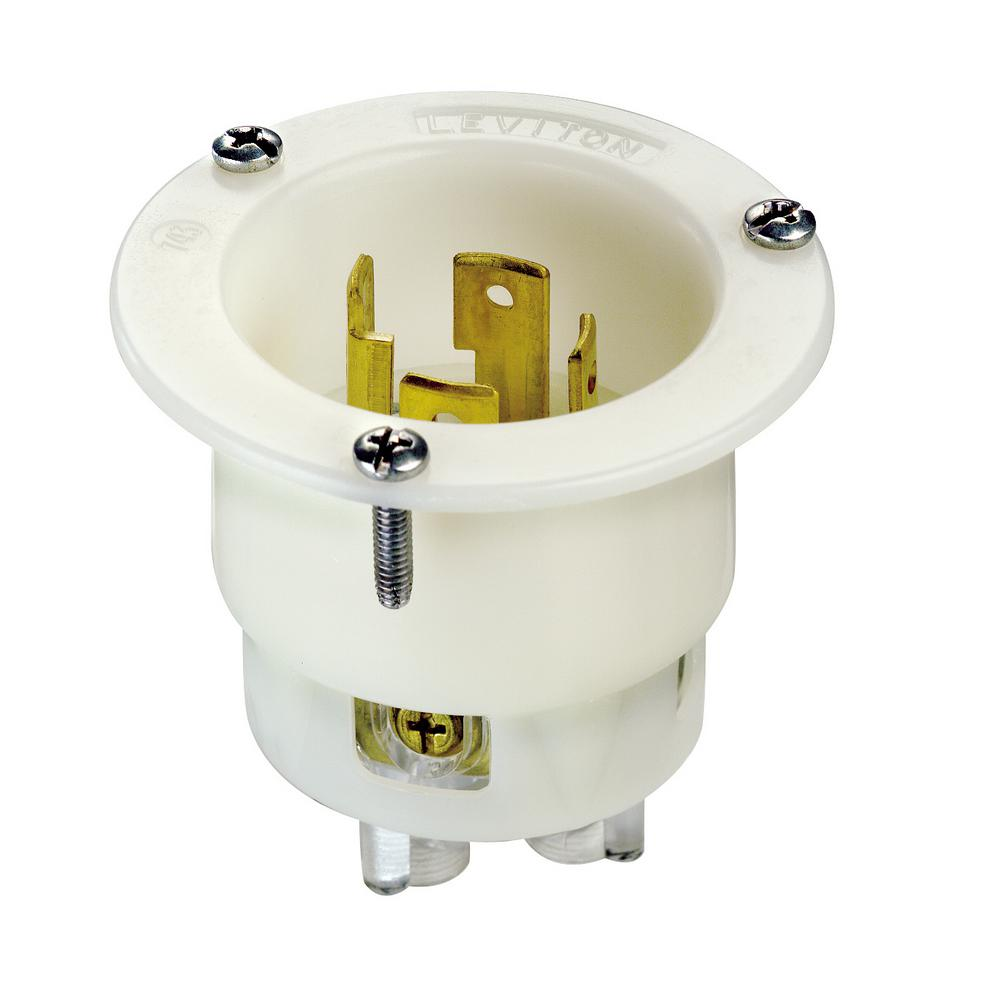

Leviton 2715 Locking Flanged Inlet 30A (33 Dia.)

Product Description

The Leviton 2715 is a locking flanged inlet designed for grounding applications in commercial settings. This inlet operates at 125/250 VAC with a maximum amperage of thirty amps. The product features a nylon body and comes with a NEMA L14-30P configuration, providing a reliable and robust connection for various electrical devices.

• Locking design for safety and security
• Compatible with a range of cord sizes due to its unique cord clamp
• Rated for commercial applications with a lifetime warranty

Product Highlights

Designed for durability, the Leviton 2715 is ideal for use in environments requiring reliable and safe connections. It withstands harsh conditions and is suited for generators and transfer switches.

Product Information

Standard Information

• Brand: Leviton
• Catalog Number: 2715

Technical Specifications

• Voltage: 125/250 VAC
• Amperage: 30 A
• Number of Poles: 3
• Number of Wires: 4
• Material: Nylon
• NEMA Rating: L14-30P
• Size: 33 Dia.
• Temperature Rating: -40 to 60 degrees C
• Flammability Class: Rated V-2 per UL 94
• Approval: UL 498, CSA C22.2, NOM 057
