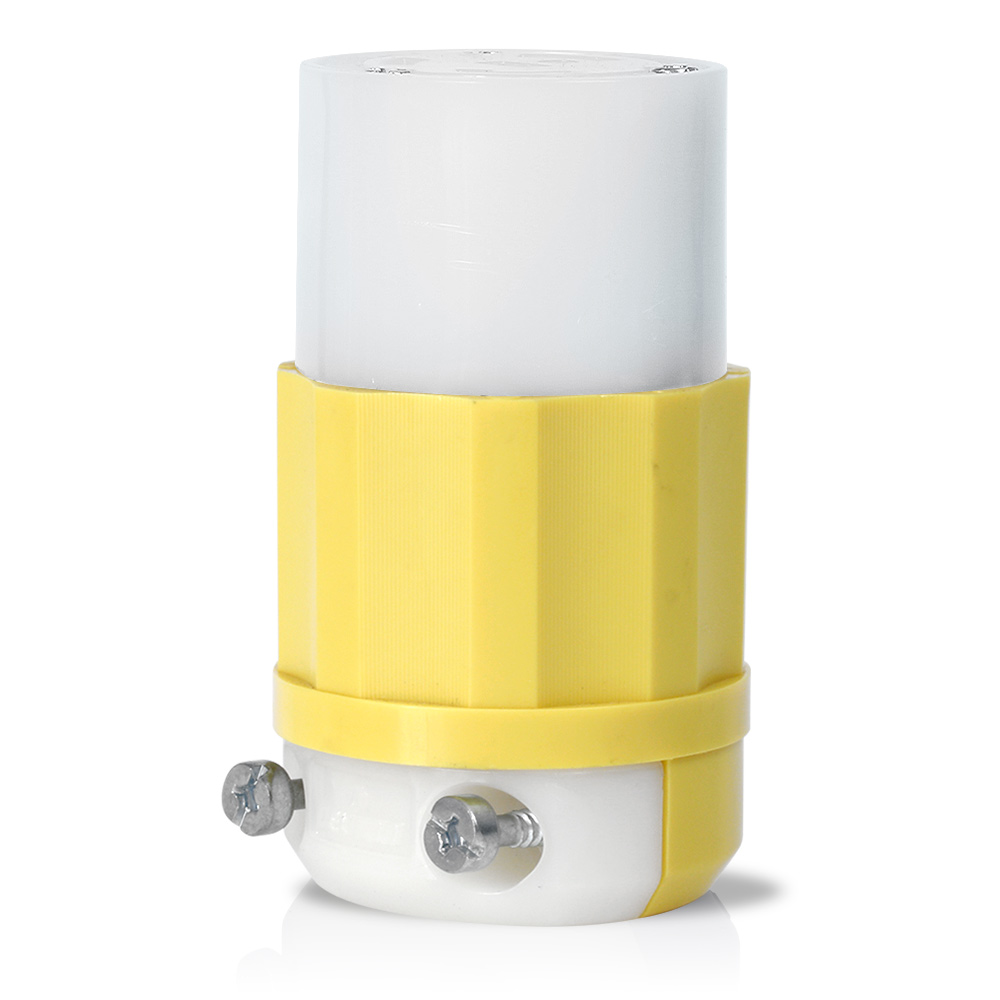

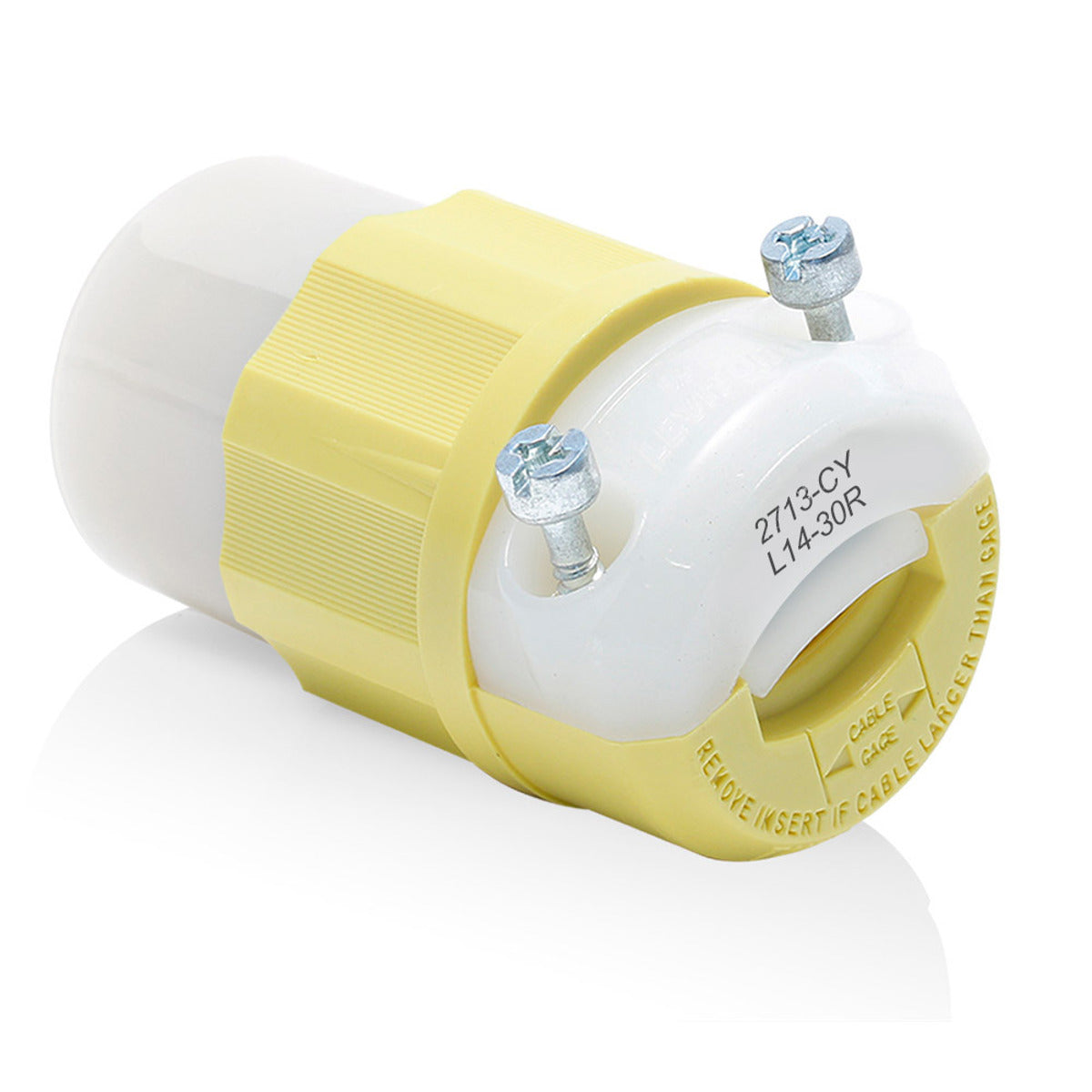

Leviton 2713-CY Locking Connector 30 Amp, 125/250 Volt, NEMA L14-30R

Product Description

The Leviton 2713-CY is an industrial grade locking connector with a NEMA L14-30R rating. This connector supports 30 Amp, 125/250 Volt, 3-Phase Grounding Cable Mount. Constructed with impact modified nylon, it offers durability and resistance to chemicals. Ideal for industrial applications requiring a reliable and robust connection.

• Rated for 30 Amp, 125/250 Volt
• Features a NEMA L14-30R configuration
• Constructed from impact modified nylon

Product Highlights

Industrial grade locking connector with robust nylon construction, suitable for demanding environments.

Product Information

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: 2713-CY
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: 2713-CY
• Manufacturer: Leviton
• Brand: Leviton
• Sub Brand: Black & White
• Country of Origin: Mexico
• Made in USA: No
• Amperage Rating: 30 A
• Application: Industrial
• Connection: Screw Terminal
• Material: Impact Modified Nylon
• Mounting: Cable
• NEMA Rating: NEMA L14-30R
• Number of Poles: 3
• Number of Wires: 4
• Phase: 3
• Standard: NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA Certified (File LR-406);UL Fed Spec WC-596 (File E13393);UL498 (File E13393)
• UPC: 078477808443
• GTIN: 00078477808443
• Item Type: Locking Connector
• Environmental Conditions: Flammability (Rated V-2 per UL 94);Operating Temperature Range (-40 to +60 DEG C)
• Voltage Rating: 125/250 VAC
• Wire Size: 18-10 AWG
• Cord Diameter: 0.595 to 1.15 in
• Grade: Industrial
• Horsepower: 2 hp
• Temperature Rating: -40 to 60 deg C
• Terminal Type: Screw
• Type: 3-Phase Grounding Cable Mount
• NEMA: WD-6
• ANSI: C-73
• CSA C22.2 No. 42: File LR-406
• NOM: 057
• UL Fed Spec WC-596: File E13393
• UL498: File E13393
• Current Interrupting: Certified for current interrupting at full rated current
• Dielectric Voltage: Withstands 2000V per UL498
• Grounding: Grounding
• Environment: Dry
• Flammability: Rated HB or better UL94
• Operating Temperature: -40°C to 60°C
• Assembly Screws: Steel, Zinc Plated
• Back Cover: Thermoplastic
• Blades/Contacts: Solid Brass
• Clamp Insert: Nylon
• Cord-Clamp: Nylon
• Terminal Screws: Brass
• Wire Module: Nylon
• Cord Range: .595 - 1.150
• Product ID: Ratings are permanently marked on device
• Terminal Accom.: 14-8 AWG
• Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
• MPN: 2713
• Model: 2713
• Output Voltage: 250 V
• Conductor Size: 14-8 AWG
• Connection Type: Screw Terminal
• Contact Material: Solid Brass
• Cord Type: S,SO,SOO,ST,STO,STOO,STOW-A,STW,STW-A
• Dielectric: 2000 V
• Flamability Class: Rated HB Or Better UL94
• Number of Phases: 3 Phase
• Rated Insulation Voltage: 2000 V
• Screw Material: Brass
• Screw Type: Steel,Zinc-Plated
• TC Connection: Screw Terminal
• Terminal Size: 18-10 AWG
• Voltage: 125/250 Volt
• Wire Count: 4
• 12-Digit UPC: 078477808443
• RoHS Compliant: Yes
• At Rated Voltage: 2 HP L-L / 2 HP L-N
• Temperature Rise: 200 %
