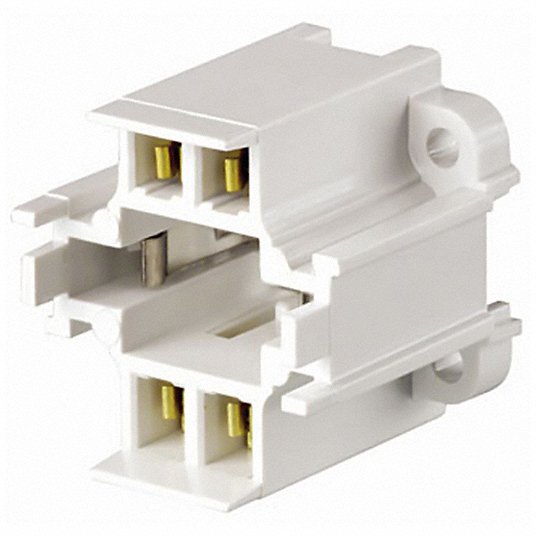

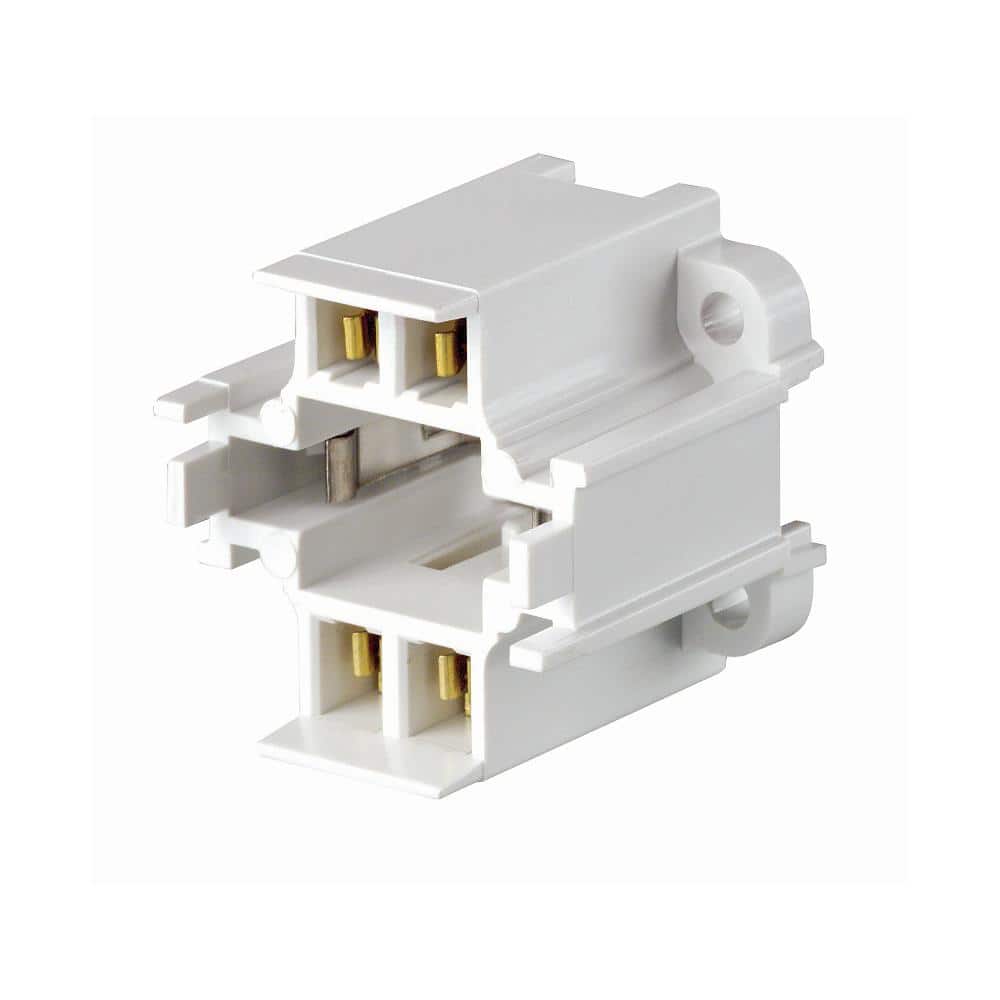

Leviton 26725-419 Compact Fluorescent Lampholder 26W 32W 42W 4 Pin

Product Description

The Leviton 26725-419 is a compact fluorescent lampholder designed for 26W, 32W, and 42W 4-pin lamps. It supports G24q-3 and GX24q-4 bases, featuring a 10mm compact design. This lampholder is suitable for vertical, bottom screw-down mounting and uses quick-connect 18AWG solid or stranded tinned termination. Constructed with a thermoplastic body, it is rated for 600 Volt operation and is compatible with universal wattage ballasts. This lampholder is ideal for commercial fluorescent lighting applications.

• Supports 26W, 32W, 42W 4-Pin compact fluorescent lamps with G24q-3 and GX24q-4 bases.
• Features vertical, bottom screw-down mounting for secure installation.
• Utilizes quick-connect 18AWG solid or stranded tinned termination for efficient wiring.

Product Highlights

Color-coded for easy identification, UL/CSA/NOM certified, and constructed from durable thermoplastic.

Product Information

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: 26725-419
• Country of Origin: Mexico

Technical Specifications

• Lamp Base: G24q-3, GX24q-4
• Product Type: Compact Fluorescent Lampholder
• Brand: Leviton
• Color: White
• Body Style: Standard Body
• Voltage Rating: 600 Volt
• Body Material: Thermoplastic
• Certifications: CSA, NOM, UL
• Lamp Type: 10 MM Compact Fluorescent
• Sub Brand: FLUORESCENT LAMPHOLDERS
• Light Type: Fluorescent
• Application: Commercial
• Ballast Type: Electronic
• Mounting Type: Vertical, Bottom Screw-Down
• Termination Type: Quick-Connect 18AWG Solid, Str. Tinned
• Max Lampholder Wattage: 75 W
• Color Family: White
• Pin Configuration: 4-Pin
• Mounting Holes: 4
• Supported Lamp Wattages: 26 W, 32 W, 42 W
• Retainer Clip Material: Stainless Steel
• Wire Strip Length: 3/8 Inch
• Wiring Ports: 2
• Ballast Compatibility: Universal Wattage Ballast Only
• Compatible Brand: Universal
• Wire Gauge: 18 AWG
• Lampholder Size: 10mm
