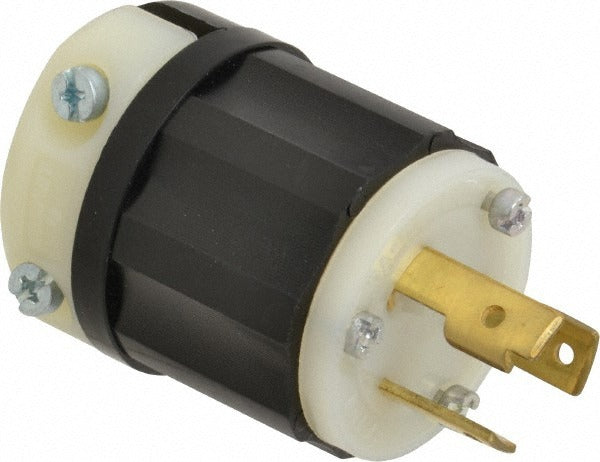

Leviton 2611-PLC Locking Plug L5-30P 125V 30A Industrial

Product Description

The LEVITON 2611-PLC is an industrial-grade locking plug rated for 125 volts and 30 amps in a NEMA L5-30P configuration. Built from nylon with a self-grounding design, it features a 2-pole, 3-wire layout suited for demanding power connections in commercial and industrial environments. The twist-lock body secures the connection under load, reducing the risk of accidental disconnection. Cord diameter compatibility ranges from 0.385 inches minimum to 0.860 inches maximum, accommodating a wide range of heavy-duty cord gauges. Licensed electricians and maintenance electricians are the primary installers of this component.

This locking plug is used in single-phase 125-volt power distribution applications where a secure, industrial-rated connection is required. Typical installations include temporary power drops, generator connections, portable equipment feeds, and panel-to-load wiring in commercial or light industrial facilities. The L5-30P NEMA configuration is common in construction, manufacturing, and facility maintenance settings where vibration or frequent plug cycling demands a twist-lock engagement over a standard straight-blade connection.

Key Features

• NEMA L5-30P twist-lock configuration for secure, vibration-resistant connections
• Rated 30 amps at 125 volts, single phase
• Self-grounding design for simplified field termination
• Nylon construction resists impact and chemical exposure in industrial environments
• Accepts cord diameters from 0.385 inches to 0.860 inches
• Meets UL 498, ANSI C-73, CSA C22.2 No. 42, NEMA WD-6, and NOM 057 standards

Compatibility

Designed as an industrial-grade locking plug for use with NEMA L5-30P receptacles and connectors in 125-volt, 30-amp single-phase applications.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize the circuit and verify zero voltage with a meter before terminating conductors. Follow the manufacturer wiring diagram printed on the plug body for correct terminal assignment. Do not exceed the rated cord diameter range when selecting wire and strain relief hardware.
