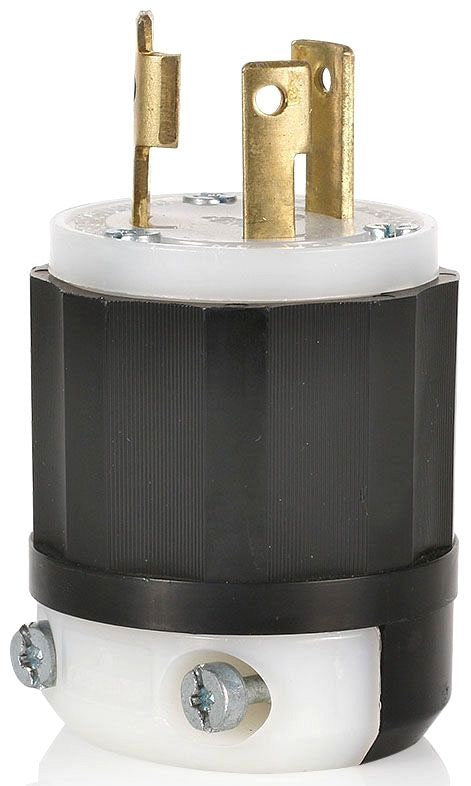

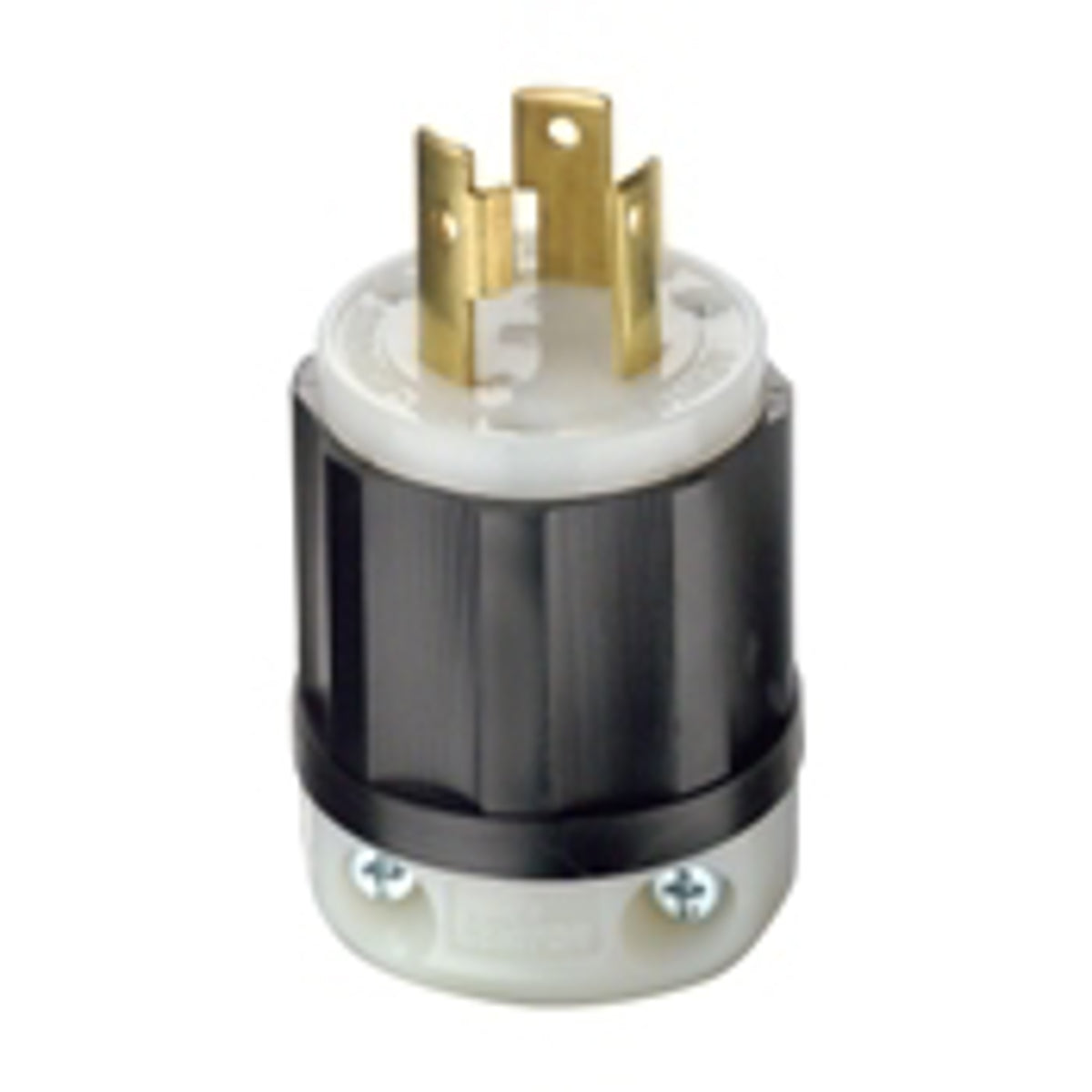

Leviton 2611 Plug LKG 125VAC 30A 2 3 BK/WHT

Product Description

The Leviton 2611 is a locking plug designed for use in various industrial applications. It operates at 125 VAC with a 30 A current rating, and it features two poles and three wires. This plug is made from nylon and comes in a black and white configuration.

• Rated for 30 Amperes and 125 Volts.
• Constructed with impact-resistant nylon.
• Compatible with a range of cord sizes from zero point three eight five to zero point eight six inches in diameter.

Product Highlights

This locking plug is suitable for industrial-grade applications and is backed by a lifetime warranty.

Product Information

Standard Information

• Manufacturer: Leviton
• Catalog Number: 2611

Technical Specifications

• Voltage Rating: 125 VAC
• Amperage Rating: 30 A
• Number of Poles: 2
• Number of Wires: 3
• NEMA Rating: L5-30P
• Horsepower: 2 hp
• Temperature Rating: -40 to 60 degrees C
• Material: Nylon
• Mounting Type: Cable
• Environmental Conditions: Flammability rated V-2 per UL 94
