Product Description

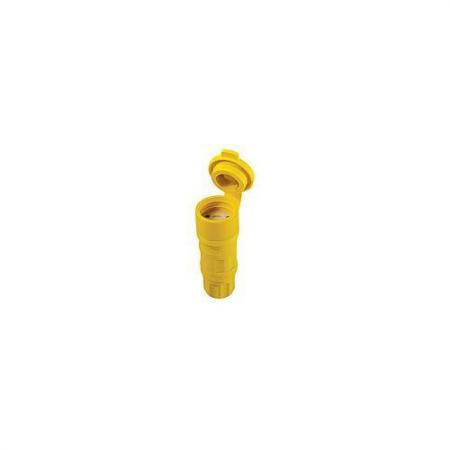

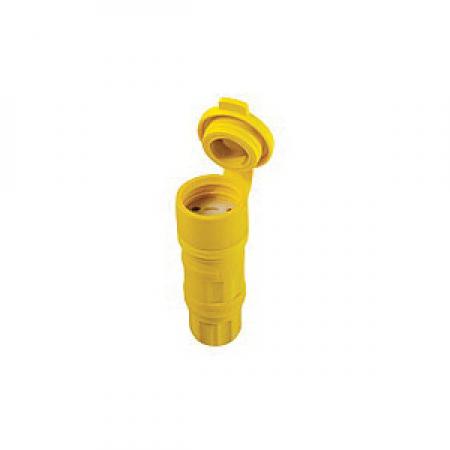

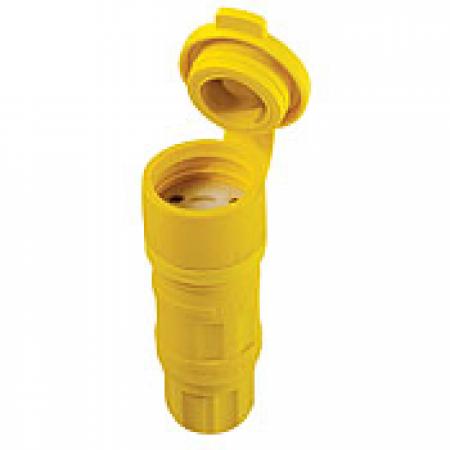

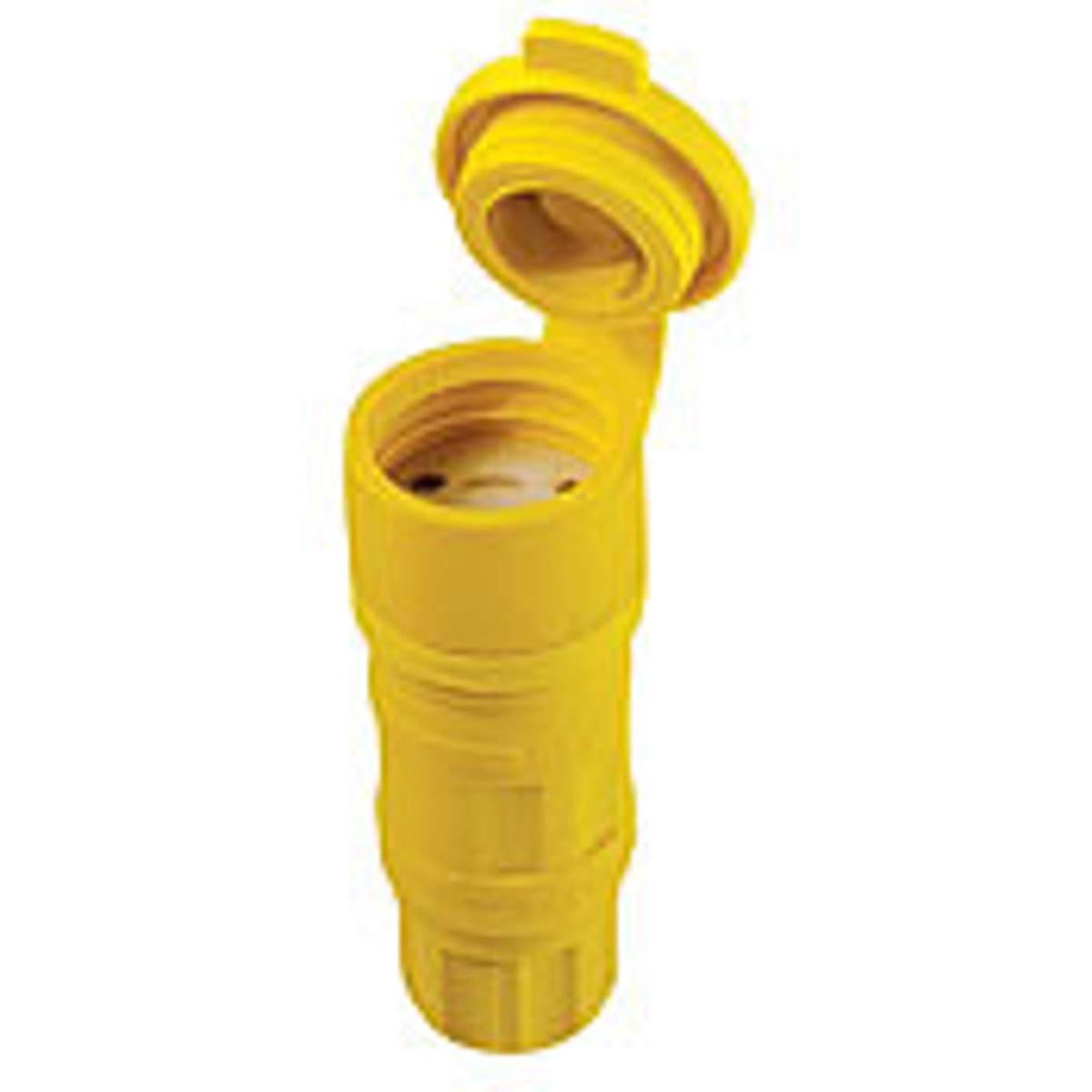

Leviton 25W49 is a locking connector designed for 1-phase grounding. This watertight device works at 250 volts and handles 15 amps. It features a durable design suitable for industrial applications.
- 15 amp and 250 volt rating
- 2 poles and 3 wires
- Compatible with cords measuring between 0.234 and 0.687 inches in diameter
Product Highlights
This connector meets NEMA L6-15R standards and is ideal for wet and harsh environments. The design ensures reliable electrical connections.
Product Information
Standard Information
-
Brand: Leviton
-
Manufacturer Part Number: 25W49
Technical Specifications
-
Amperage Rating: 15 A
-
Voltage Rating: 250 VAC
-
Number of Poles: 2
-
Number of Wires: 3
-
NEMA Rating: L6-15R
-
Material: TPV
-
Color: Yellow
-
Environmental Conditions: Operating Temperature Range -40 to +60 degrees Celsius
-
Dimensions: 1.78 inches diameter x 4.22 inches length
-
Standards/Approvals: ANSI C73, CSA C22.2 No.42, NOM 057, NEMA WD1/WD6, UL 498
