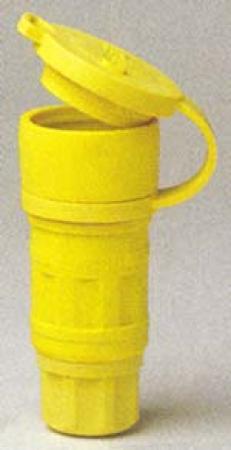

LEVITON 25W47 YL Wetguard Conn Lock 2PO 3WI 15A125V

Product Description

The LEVITON 25W47 is a locking connector featuring a watertight design for cable mounting. It is rated for 125 VAC and 15 A, suitable for use in industrial settings. This connector supports two poles and three wires, complying with NEMA L5-15R standards and is designed for applications in tough environments.

• Watertight cable mount design
• Temperature rating from -40 to 60 degrees Celsius
• Durable screw terminal connection

Product Highlights

Ideal for industrial applications, this locking connector offers reliable performance and safety in wet or harsh conditions.

Product Information

Standard Information

• Manufacturer: LEVITON
• Amperage Rating: 15 A

Technical Specifications

• Voltage Rating: 125 VAC
• Number of Poles: 2
• Number of Wires: 3
• Temperature Rating: -40 to 60 degrees Celsius
• Cord Diameter: 0.234 to 0.687 inches
• Dimensions: 1.78 inches Diameter x 4.22 inches Length
• NEMA Rating: NEMA L5-15R
• Grade: Industrial
• Material: TPV
• Terminal Type: Screw
• Type: 1-Phase Grounding Watertight Cable Mount
