Product Description

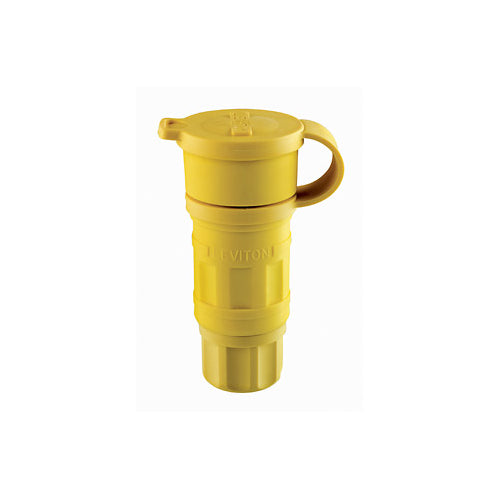

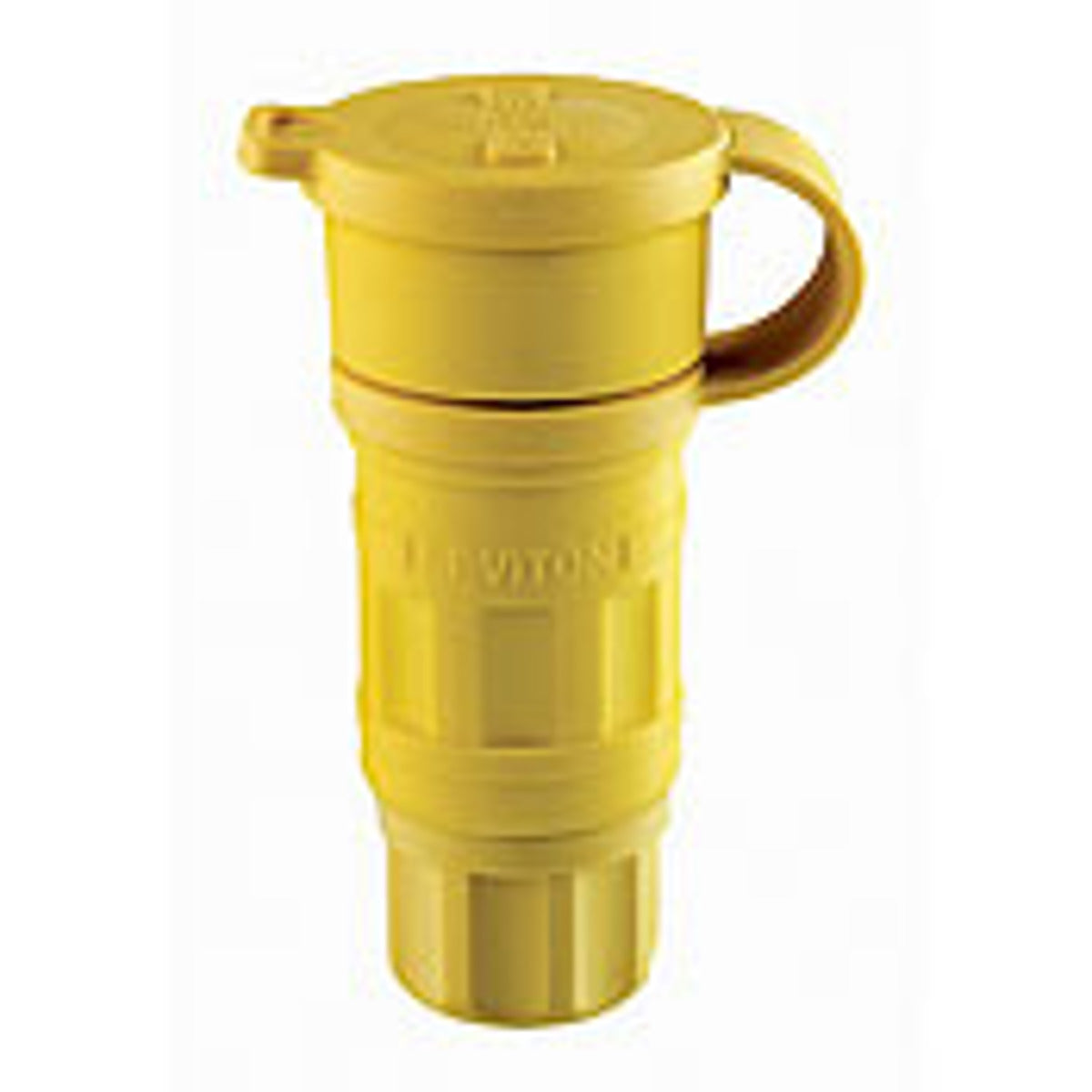

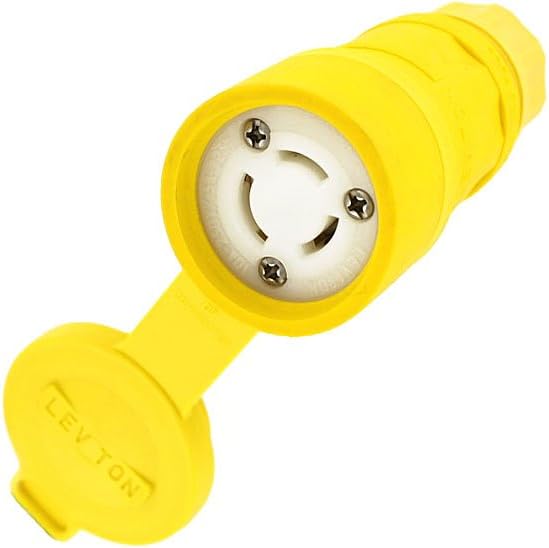

The Leviton 25W07 Wetguard locking connector is a 15 Amp, 125 Volt/10A-250V, industrial grade, non-grounding connector with a locking blade. This connector is designed for industrial applications and is resistant to water, acids, alkalies, and many automotive and industrial lubricants and solvents. It meets IP67 and NEMA ratings for water ingress protection.
- 15 Amp, 125 Volt/10A-250V
- Locking blade provides a secure connection
- Industrial grade for demanding environments
Product Highlights
This Wetguard locking connector is ideal for industrial applications requiring a watertight connection.
Product Information
Standard Information
-
Brand: Leviton
-
Manufacturer Part Number: 25W07
-
Country of Origin: United States
Technical Specifications
-
Color: Yellow
-
Voltage: 125/250 VAC
-
Material: TPV
-
Certification: NEMA
-
Catalog Number: 25W07
-
Manufacturer: Leviton
-
Brand: Leviton
-
Sub Brand: Wetguard
-
Country of Origin: Mexico
-
Application: Industrial
-
Connection: Screw Terminal
-
Mounting: Cable
-
NEMA Rating: Non-NEMA
-
Number of Poles: 3
-
Number of Wires: 3
-
Phase: 1
-
Standard: NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA (C22.2 No.42);UL (498)
-
UPC: 078477474259
-
GTIN: 00078477474259
-
Item Type: Watertight Connector;Locking
-
Environmental Conditions: Flammability (Rated V-2 per UL 94 (Wiring Module));Operating Temperature Range (-40 to +60 DEG C)
-
Voltage Rating: 125-250V AC
-
Wire Size: 18-10 AWG
-
Amperage Rating: 10/15 A
-
Cord Diameter: 0.234 to 0.687 in
-
Grade: Industrial
-
Terminal Type: Screw
-
Type: 1-Phase Cable Mount Watertight
-
Temperature Rating: -40 to 60 deg C
-
Amps: 15/10 A
-
Item: Watertight Locking Connector
-
Shrouded: Yes
-
Grounding: Non-Grounded
-
IP Rating: IP66, IP67, IP69K
-
Polarized: Yes
-
Standards: ANSI C73, CSA C22.2 No. 42 File LR-406, NEMA WD-6, NOM 057 Certified, UL 498
-
Temp. Rise: Max 30C after 250 cycles OL at 200 percent rated current
-
Wiring Style: Standard
-
Body Material: Santoprene TPV
-
Face Diameter: 1.78 in
-
Housing Color: Yellow
-
Current Rating: 10/15 A
-
Midget Locking: No
-
Overall Length: 4.06 in
-
Flame Resistant: Rated V-2 per UL 94
-
Contact Material: Nickel-Plated Brass
-
Housing Material: Santoprene TPV
-
Outside Diameter: 2.3 in
-
Maximum Wire Size: 10 AWG
-
Minimum Wire Size: 18 AWG
-
Dielectric Strength: Withstands 2000V per UL498
-
Insulation Material: Nylon
-
Wire Connection Type: Screw Terminals
-
NEMA Enclosure Rating: 4, 4X, 6, 6P
-
Resistance Properties: Watertight
-
Connection Orientation: Straight
-
UL 94 Flammability Rating: V-2
-
For Maximum Cable Diameter: 0.687 in
-
For Minimum Cable Diameter: 0.234 in
-
Color - Plugs and Receptacles: Yellow
-
Maximum Operating Temperature: 60 Degrees C
-
Minimum Operating Temperature: -40 Degrees C
-
NEMA Receptacle Configuration: Non-NEMA
-
Voltage - Plugs and Receptacles: 125/250 V AC
-
Hazardous Location Specification: Not Applicable
-
NEMA Plug Configuration - Plugs and Receptacles: Non-NEMA
-
Current Limiting: Full Rated Current
-
Pole: 3
-
Wire: 3
-
Operating Temperature: -40°C to 60°C
-
Assembly Screws: Stainless Steel, Non-Magnetic
-
Blades/Contacts: Electroless Nickel-coated Brass
-
Body Interior: Nylon
-
Bushing: Santoprene TPV
-
Compression Nut, Strain Relief: Nylon
-
Terminal Screws: Electroless Nickel-coated Brass
-
Wire Module: Nylon
-
Cord Grip Range (in): .234-.687
-
Product ID: Ratings and NEMA I.D. permanently marked on device
-
Terminal Accom.: 18-10 AWG
-
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
-
Brand Name: Leviton
-
Brand Part Number: 25W07
-
Device Type: Locking Connector
-
ANSI: C-73
-
CSA C22.2 No. 42: File LR-406
-
NEMA: WD-6
-
NOM: 057
-
UL: 498
-
Product Name: Wetguard Watertight Locking Connector
-
Product Type: Connector
-
Environmental Certification: UL
