Product Description

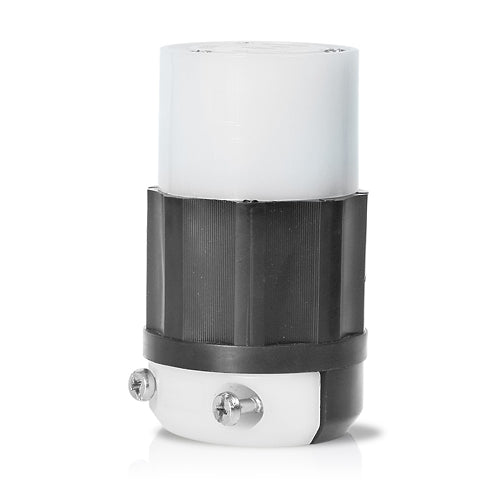

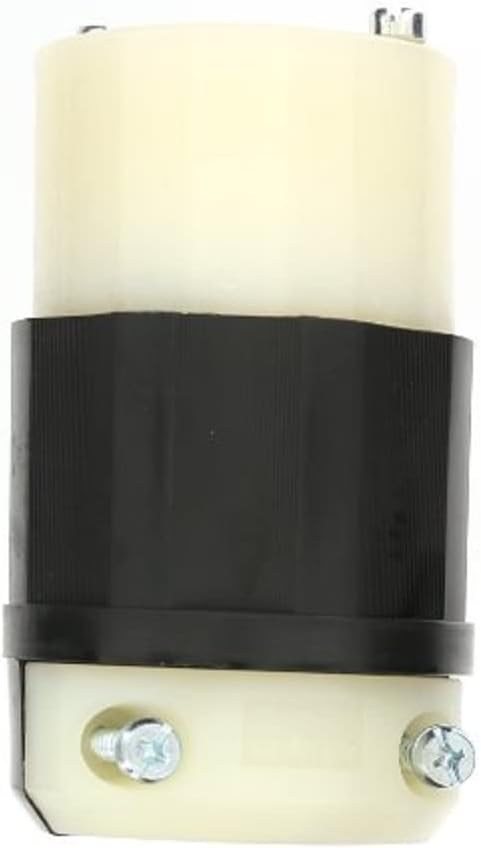

The Leviton 2443 is a 20 Amp, 120/208 Volt 3PY, NEMA L18-20R, 4P, 4W, locking connector. This industrial grade, non-grounding connector offers superior performance and long-lasting reliability. Its rugged nylon construction resists impact, sunlight, chemicals, and rough use. Ideal for industrial applications requiring a secure and durable connection.
- One piece contacts reduce friction and overheating
- Unique cord clamp accepts wide range of cord sizes
- Rugged nylon construction resists impact, sunlight, chemicals, and rough use
Product Highlights
Industrial grade locking connector with rugged nylon construction and a unique cord clamp.
Product Information
Standard Information
-
Brand: LEVITON
-
Manufacturer Part Number: 2443
-
Country of Origin: Mexico
Technical Specifications
-
Voltage: 208 Volts
-
Material: Nylon
-
Amperage: 20 A
-
Nema: L18-20R
-
RoHS Compliant: Yes
-
Current Interrupting: Certified for current interrupting at full rated current
-
Dielectric Voltage: Withstands 2000V per UL498
-
Grounding: Non-Grounding
-
Phase: 3-Phase WYE
-
Pole: 4
-
Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
-
Wire: 4
-
Environment: Dry
-
Flammability: Rated HB or better UL94
-
Operating Temperature: -40
to 60 deg C
-
Assembly Screws: Steel, Zinc Plated
-
Back Cover: Thermoplastic
-
Blades/Contacts: Solid Brass
-
Body Material: Impact Modified Nylon
-
Clamp Insert: Nylon
-
Cord-Clamp: Nylon
-
Terminal Screws: Brass
-
Wire Module: Nylon
-
At Rated Voltage: 2 HP
-
Cord Range: .595 - .895
-
Product ID: Ratings are permanently marked on device
-
Terminal Accom.: 18-10 AWG
-
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
-
Torque Range: 10-14 in-lbs
-
Wire Gauge: 14-10 AWG
-
Brand: Leviton
-
Device Type: Locking Connector
-
Connector Type: Plug in
-
Number Of Poles: 4
-
Number Of Wires: 4
-
Plug Type: NEMA L18-20R
-
Product Grade: Industrial
-
Amperage Rating: 20 A
-
Specification Met: NEMA
-
Temperature Rating: -40 to 60 deg C
-
Terminal Type: Screw
-
Type: 3-Phase Non-Grounding
-
Voltage Rating: 120/208 VAC
-
Horsepower: 2 hp
-
Cord Diameter: 0.56 to 0.775
-
NEMA Rating: NEMA L18-20R
