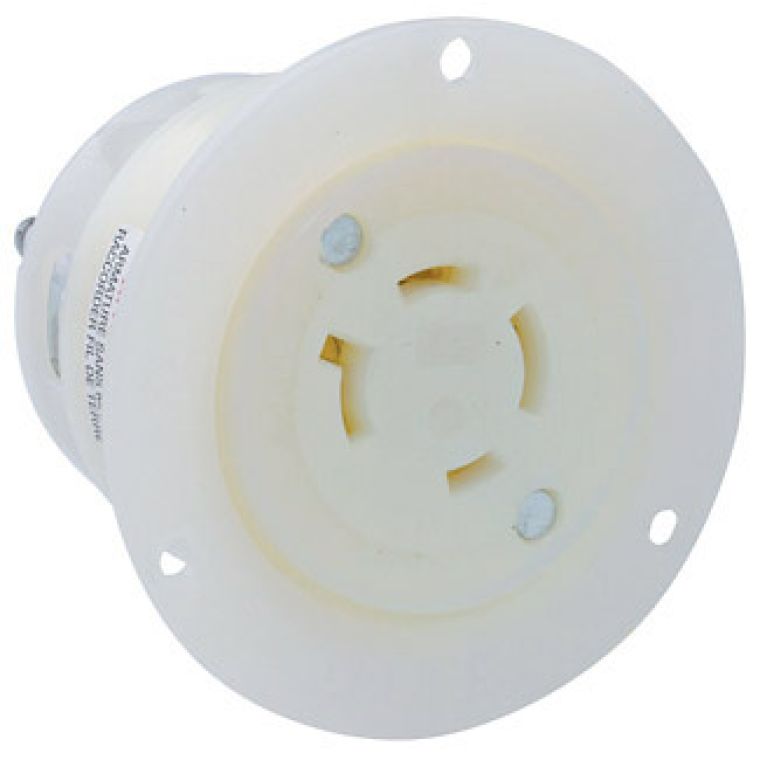

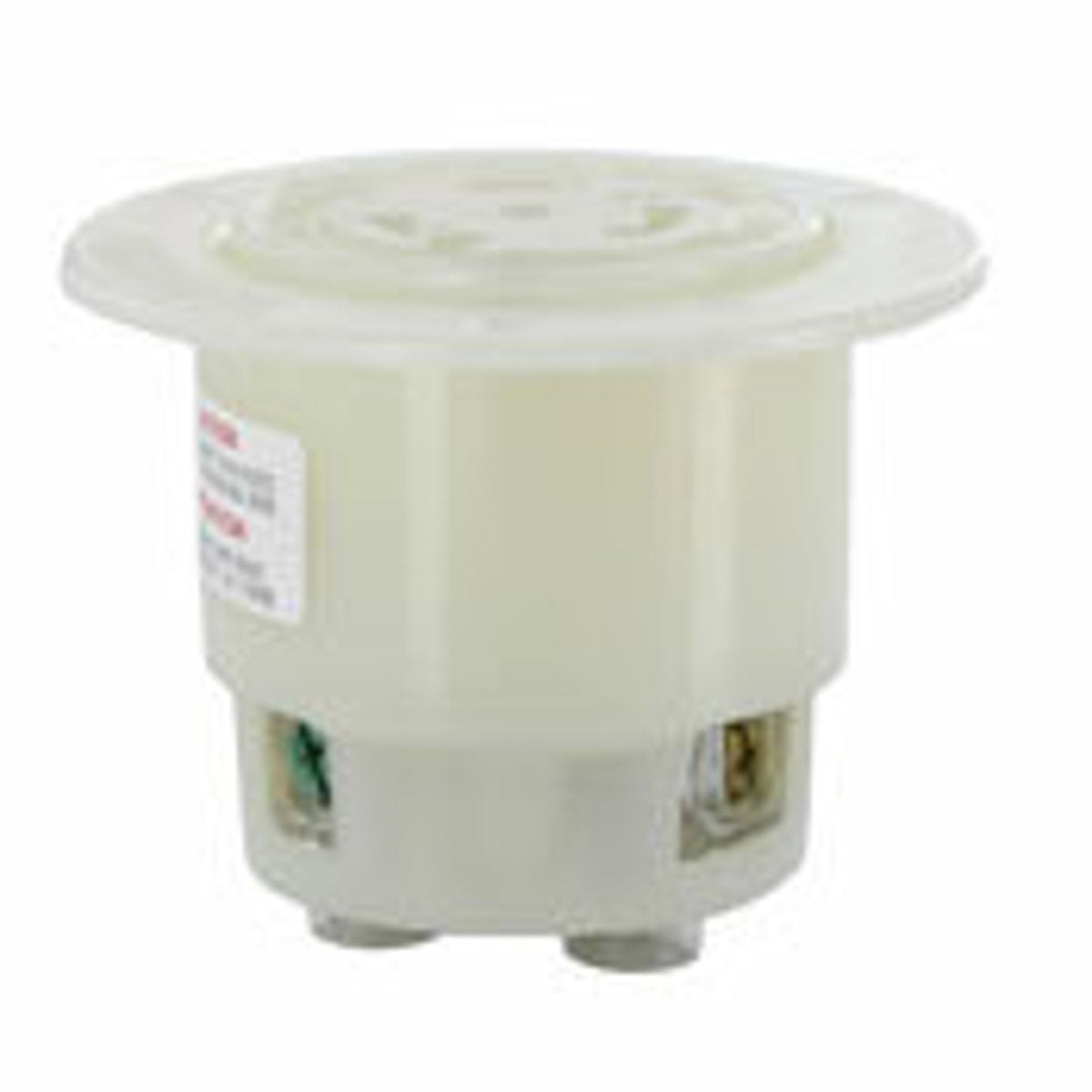

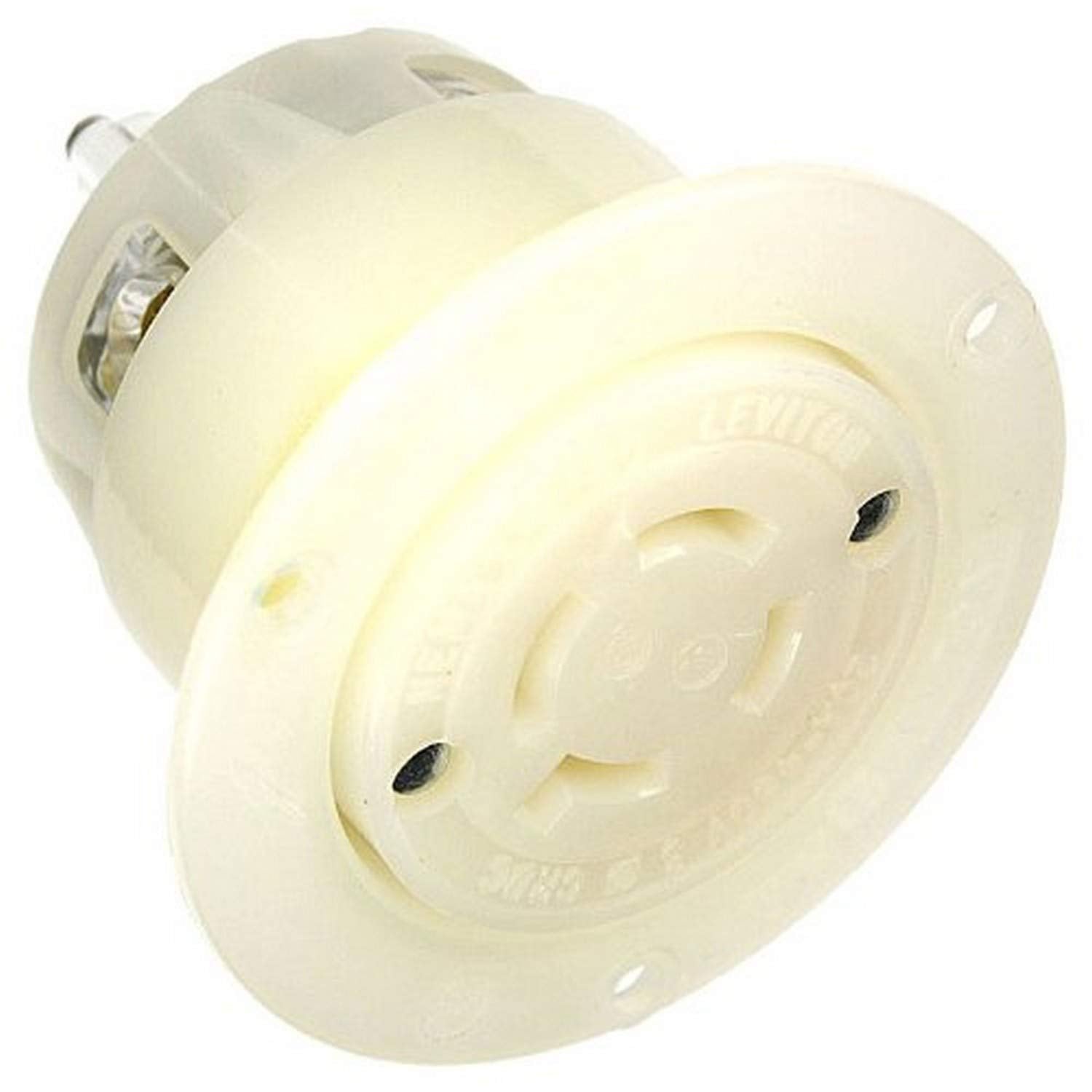

Leviton 2436 Locking Flanged Outlet 20 Amp 480 Volt (2 x 1.75 x 4 inches)

Brand: LEVITON
SKU: 2436
Availability: In Stock

Ships same day if ordered by 12 pm
$77.94
$77.94
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Leviton 2436 is a 20 A, 480 VAC locking flanged outlet (NEMA L16-20R) designed for industrial three-phase, 3-pole-plus-ground applications. It features a nylon body, back-wired termination and positive crimp lock wire clamps for secure connections. The device accommodates standard AWG sizes, is NEMA certified, rated for operation from -40 to 60 C, and is specified with dielectric withstand per UL498.

  • Rated 20 A, 480 VAC for 3-phase service; NEMA L16-20R, 3-pole, 4-wire grounding configuration
  • Flange-mount nylon construction with back-wired termination; accommodates 16-8 AWG wiring
  • Dielectric withstand 2000 V per UL498; operating temperature -40 to 60 C; solid brass line contacts and brass terminal hardware

Product Highlights

Industrial-grade flanged locking receptacle, 20 A 480 VAC NEMA L16-20R, nylon body, back-wired termination, 16-8 AWG, 2000 V dielectric

Product Information

Standard Information

  • Brand: LEVITON
  • Manufacturer Part Number: 2436
  • Country of Origin: Mexico
Technical Specifications
Brand
Leviton
Manufacturer Part Number
2436
Model
2436
Product Type
Locking flanged outlet / receptacle
Amperage
20 A
Voltage Rating
480 VAC
NEMA Configuration
L16-20R
Poles
3
Wires
4
Phase
3-Phase
Grounding
Grounding
Material
Nylon
Mounting Type
Flange
Termination
Back wired
Wire Size
16-8 AWG
Operating Temperature
-40 to 60 C
Flammability Rating
V-2 per UL94
Dielectric Voltage
2000 V per UL498
Certifications
NEMA (WD-1, WD-6); ANSI C-73; NOM 057; CSA C22.2 No. 42 (File LR-406); UL Fed Spec WC-596 (File E13399); UL498
Dimensions
2 x 1.75 x 4 inches
Weight
0.1 lb (1.6 oz)
Line Contacts
Solid brass
Terminal Screws
Brass 10-32
Grounding Screw
Brass 8-32
Terminal Accommodation
16-8 AWG
Screw Terminal Torque
10-14 in-lbs
RoHS Compliant
Yes
Country of Origin
Mexico
NEMA Receptacle Type Description
NEMA L16-20R: 3-pole, 4-wire grounding locking receptacle
