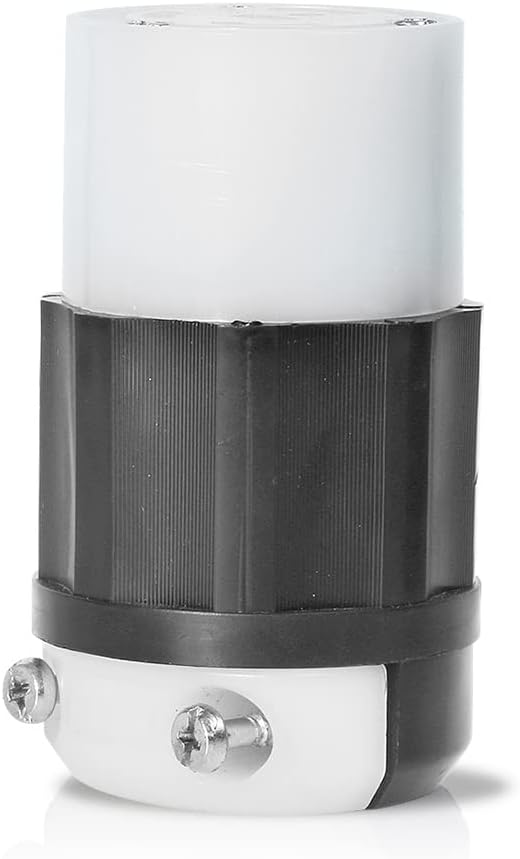

Leviton 2433 20 Amp, 480 Volt 3-Phase, NEMA L16-20R, 3P, 4W, Locking Connector, Industrial Grade, Grounding

Product Description

The Leviton 2433 is a locking connector designed for industrial applications. It features a voltage rating of 480 volts and a current rating of twenty amps. This connector is equipped with three poles and four wires, making it suitable for three-phase configurations. The nylon construction ensures durability across various environments.

• Voltage: 480 Volts AC
• Amperage: 20 Amps
• NEMA Configuration: L16-20R

Product Highlights

This connector is made for reliable performance in demanding settings. Its rugged design can withstand chemical exposure and UV sunlight, making it ideal for outdoor use and tough environments.

Product Information

Standard Information

• Manufacturer: Leviton
• MPN: 2433

Technical Specifications

• Material: Nylon
• Number of Wires: 4
• Number of Poles: 3
• Temperature Rating: -40 to 60 degrees Celsius
• Horsepower Rating: 5 hp
• Dimensions: 28 inches diameter x 3.53 inches height
• Wire Size: 18-10 AWG
• UL Rating: 2000V dielectric strength
