Product Description

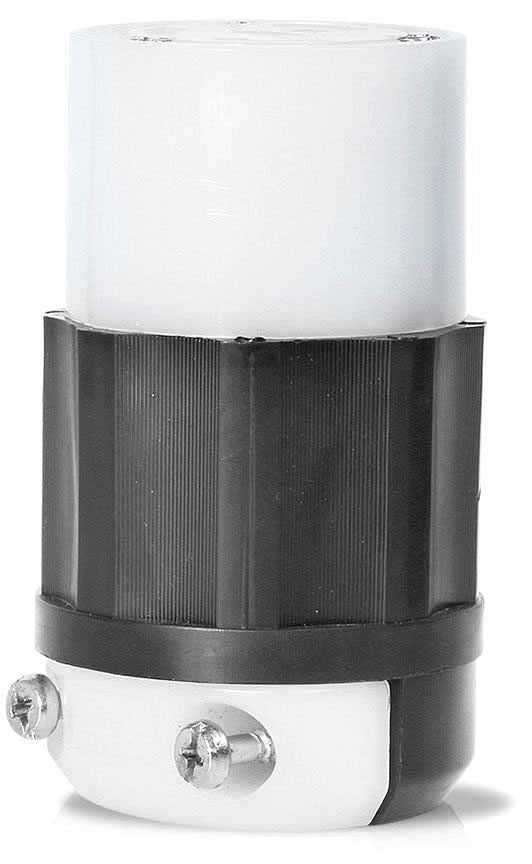

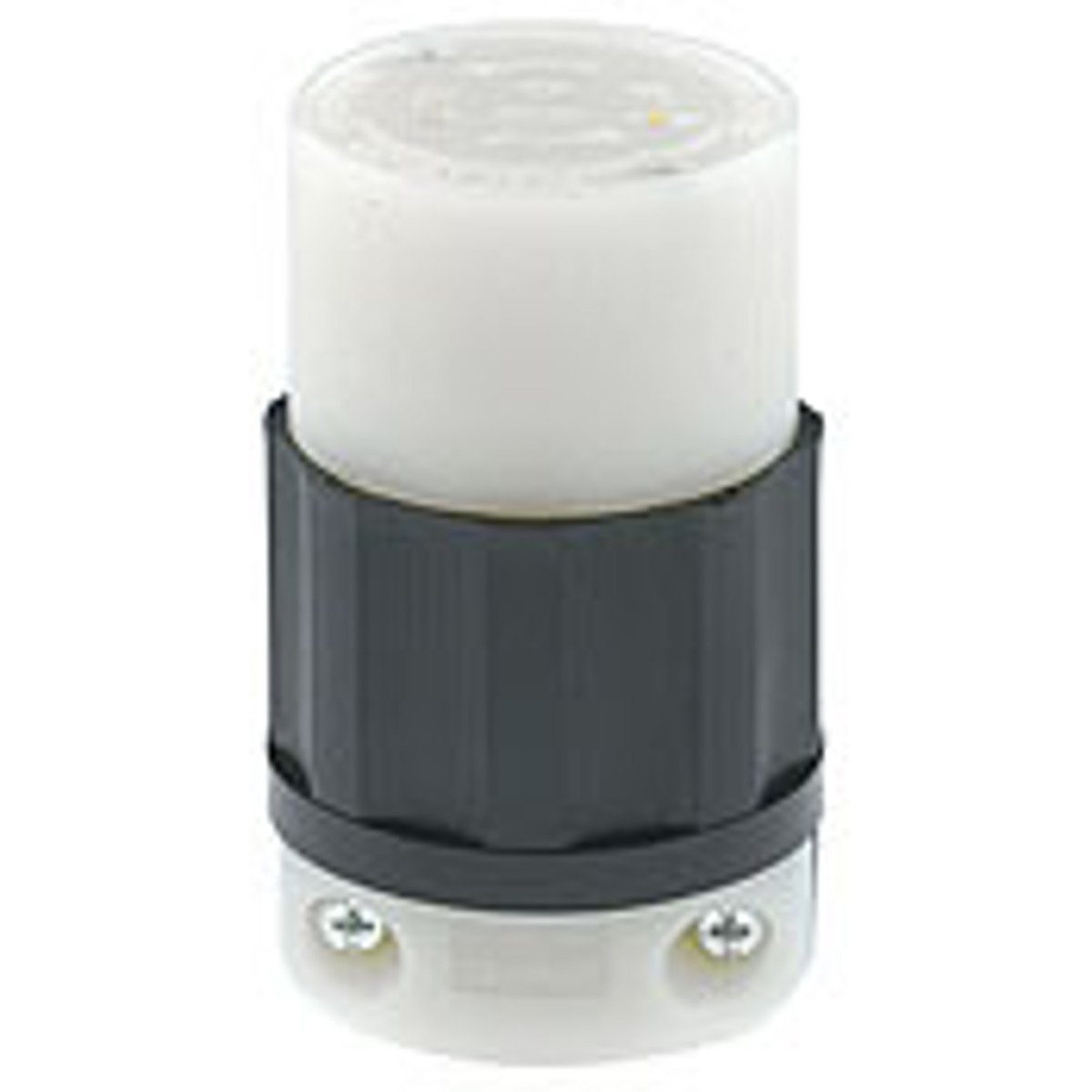

The Leviton 2413 is a locking connector rated at 20 Amps and 125/250 Volts. It features a NEMA L14-20R configuration with three poles and four wires. This industrial-grade locking device ensures a safe and reliable power connection in demanding environments.
- Durable nylon construction for long-lasting performance
- Grounding feature enhances safety
- Compatible with various cord sizes from zero point five nine five to zero point eight nine five inches in diameter
Product Highlights
This locking connector is part of Leviton’s industrial product line, designed to meet rigorous performance standards. It works well in industrial applications and provides reliable connections in challenging environments.
Product Information
Standard Information
Technical Specifications
-
Voltage Rating: 125/250 VAC
-
Amperage Rating: 20 A
-
NEMA Rating: L14-20R
-
Number of Poles: 3
-
Number of Wires: 4
-
Temperature Rating: -40 to 60 degrees C
-
Horsepower Rating: 2 HP (L-L), 1 HP (L-N)
-
Material: Super Tough Nylon
-
Dimensions: 28 inches diameter x 3.53 inches height
-
Flammability Rating: Rated V-2 per UL94
-
Environmental Conditions: Operating temperature range of -40 to 60 degrees C
