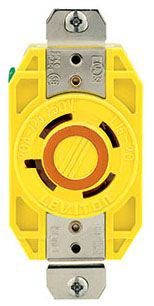

Leviton 23CM-20 Locking Receptacle L6-20R 20A 250V

Product Description

The LEVITON 23CM-20 is a flush-mount locking receptacle wired to the L6-20R configuration, rated for 20 amps at 250 volts. It accepts L6-20 locking plugs and provides a secure, twist-lock connection that resists accidental disconnection under load. This receptacle is installed in commercial, industrial, and institutional settings where equipment must stay connected during operation. Electricians install it as a wall-mount outlet or panel-mounted device in applications that require a grounding, two-pole locking outlet at 250 volts.

The 23CM-20 suits commercial kitchens, mechanical rooms, data centers, and industrial facilities where 250-volt locking circuits power HVAC equipment, compressors, and other motor-driven loads. The flush-mount design fits standard electrical boxes and keeps the face of the receptacle even with the wall plate, making it appropriate for high-traffic areas where a protruding device would be a hazard.

Key Features

• L6-20R locking configuration accepts L6-20 twist-lock plugs for secure retention
• Rated 20 amps at 250 volts for motor and equipment circuits
• Flush-mount design fits standard electrical boxes
• Two-pole, three-wire grounding construction
• Suitable for commercial and industrial power distribution applications

Compatibility

Designed as an OEM-style replacement or new-installation locking receptacle for 20-amp, 250-volt L6-20R circuits in commercial and industrial electrical systems.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize the circuit at the breaker panel and verify absence of voltage with a meter before beginning work. Confirm the supply circuit is rated for 20 amps at 250 volts before connecting. Secure all wiring connections firmly and verify proper grounding before restoring power.

Technical Specifications

• NEMA Configuration: L6-20R
• Amperage: 20 amps
• Voltage: 250 volts
• Poles: 2
• Wires: 3
• Mount Type: Flush
• UPC: 07847710669

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: 23CM-20
