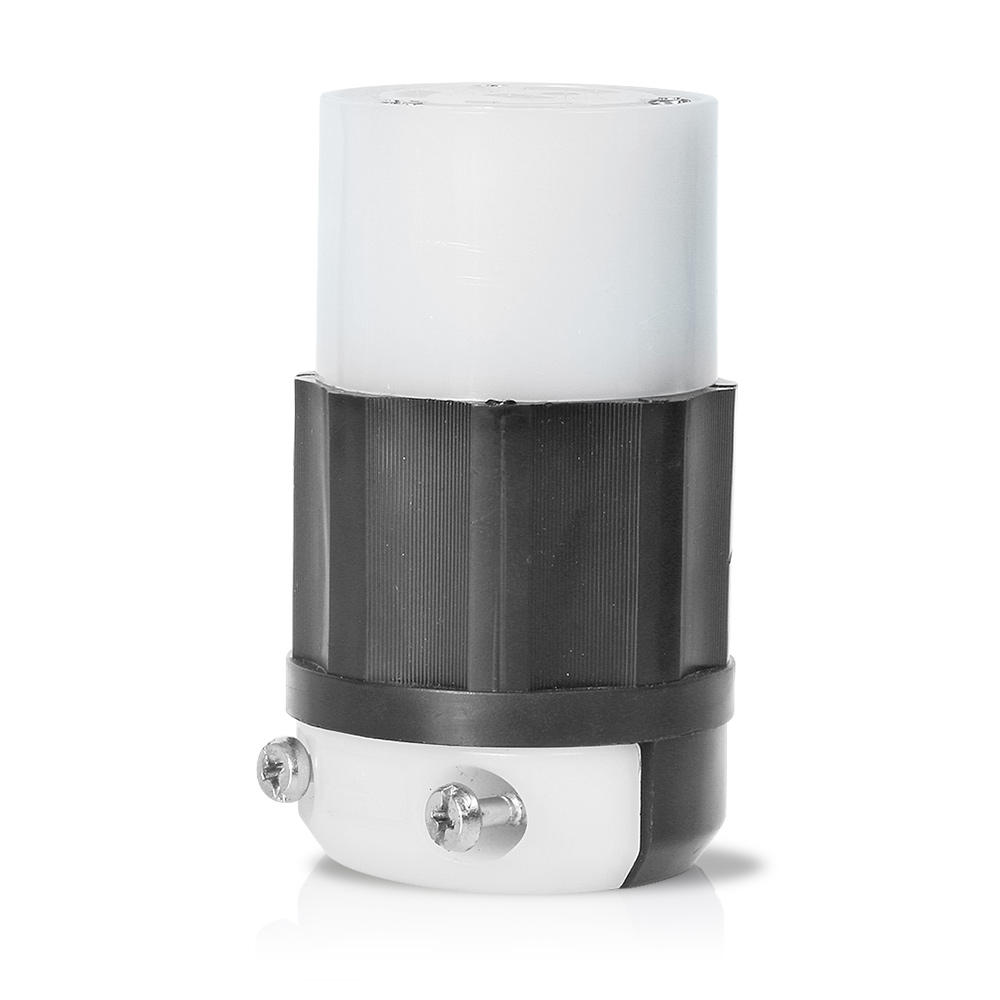

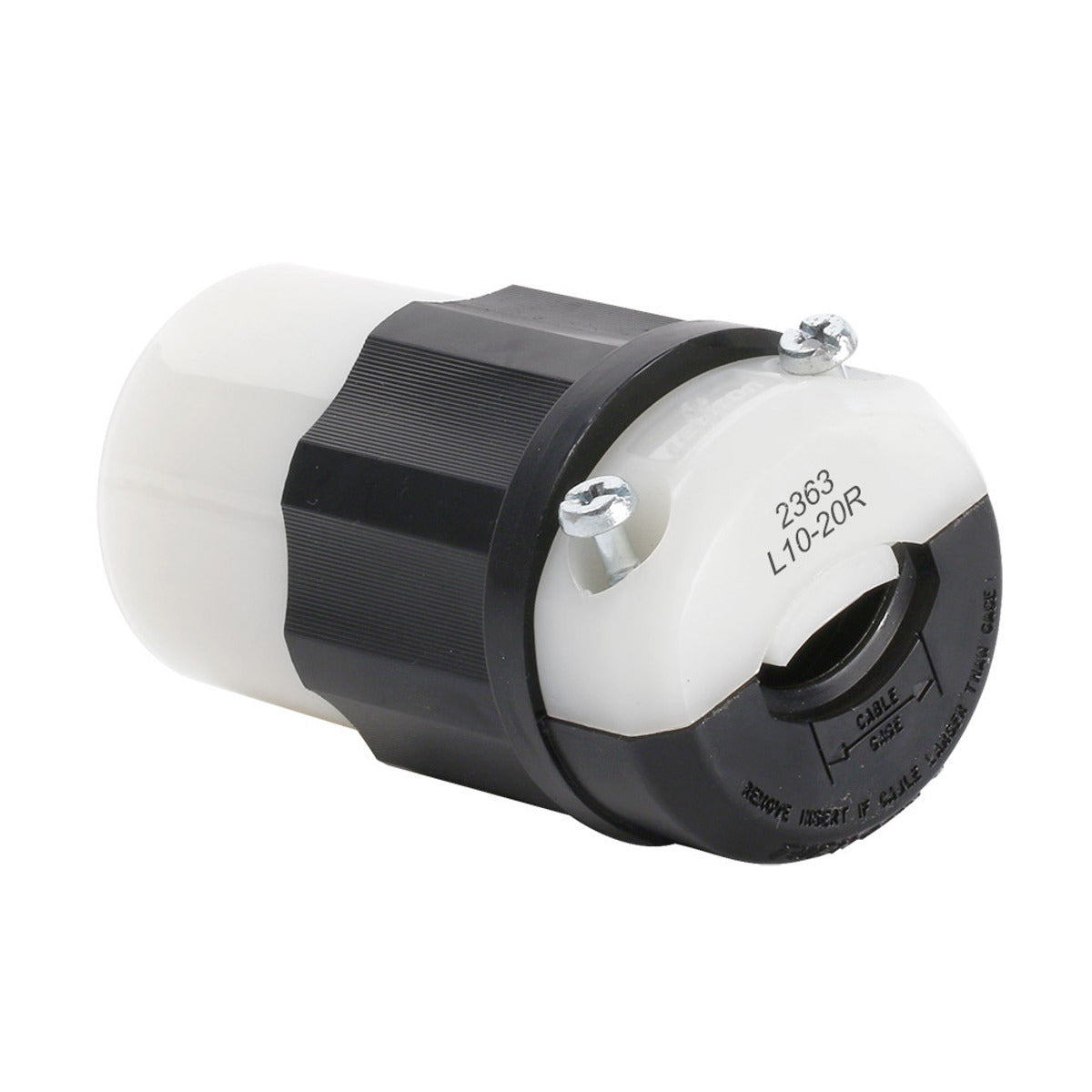

Leviton 2363 20 Amp 125/250 Volt NEMA L10-20R 3-Pole 3 Wire Industrial Grade Non-Grounding Black/White Locking Connector

Product Description

Leviton 2363 is a locking connector that operates at twenty amps and supports voltage ratings of one hundred twenty-five to two hundred fifty volts. It features a NEMA L10-20R configuration, designed for industrial use with three poles and three wires. The connector is non-grounding and constructed from durable thermoplastic material.

• Rated for industrial applications.
• Ergonomic design allowing easy grip and handling.
• Lifetime limited warranty for added assurance.

Product Highlights

This locking connector is engineered for safety and reliability.

Product Information

Standard Information

• Catalog Number: 2363
• Brand: Leviton

Technical Specifications

• Voltage: 125/250 Volt
• Amperage: 20 Amp
• Material: Thermoplastic
• NEMA Rating: L10-20R
• Environment: Dry
• Operating Temperature: -40 degrees C to 60 degrees C
• Dimensions: 28 Dia x 3.53 H inches
• Contact Material: Solid brass
