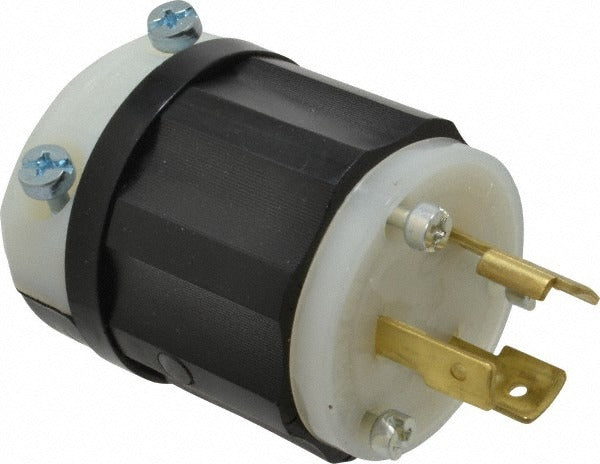

Leviton 2311-PLC Locking Plug L5-20P 20A 125V

Product Description

The LEVITON 2311-PLC is an industrial-grade locking plug rated at 20 amps and 125 volts, configured to the NEMA L5-20P standard. It features a 2-pole, 3-wire self-grounding construction built for demanding job-site and facility power connections. The body is molded from nylon for durability and resistance to impact. Single-phase design suits portable equipment, generators, and temporary power distribution panels where a secure, twist-lock connection is required. Licensed electricians and facilities maintenance professionals are the primary installers.

This plug is suited for industrial and commercial applications where a reliable locking power connection prevents accidental disconnection under load. Typical use cases include portable generators, temporary construction power, industrial machinery, and stage or event power distribution. The L5-20P configuration is a common choice for 20-amp, 125-volt single-phase circuits in facilities that require NEMA locking-type connectors throughout their power distribution infrastructure.

Key Features

• NEMA L5-20P locking configuration — 20A, 125V, single-phase
• 2-pole, 3-wire self-grounding construction
• Industrial-grade nylon body for impact and chemical resistance
• Accepts cord diameters from 0.385 inches to 0.780 inches
• UL Listed and CSA Certified; meets ANSI C-73, NEMA WD-6, and UL 498 standards
• Black and white color coding for straightforward phase identification

Compatibility

Designed as an OEM-style replacement or new-installation locking plug for 20-amp, 125-volt single-phase circuits using the NEMA L5-20P configuration.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and any applicable local codes. De-energize the circuit and lock out the power source before wiring the plug. Verify that the cord diameter falls within the acceptable range of 0.385 inches to 0.780 inches before securing the cord grip. Do not exceed the 20A or 125V ratings of this device.
