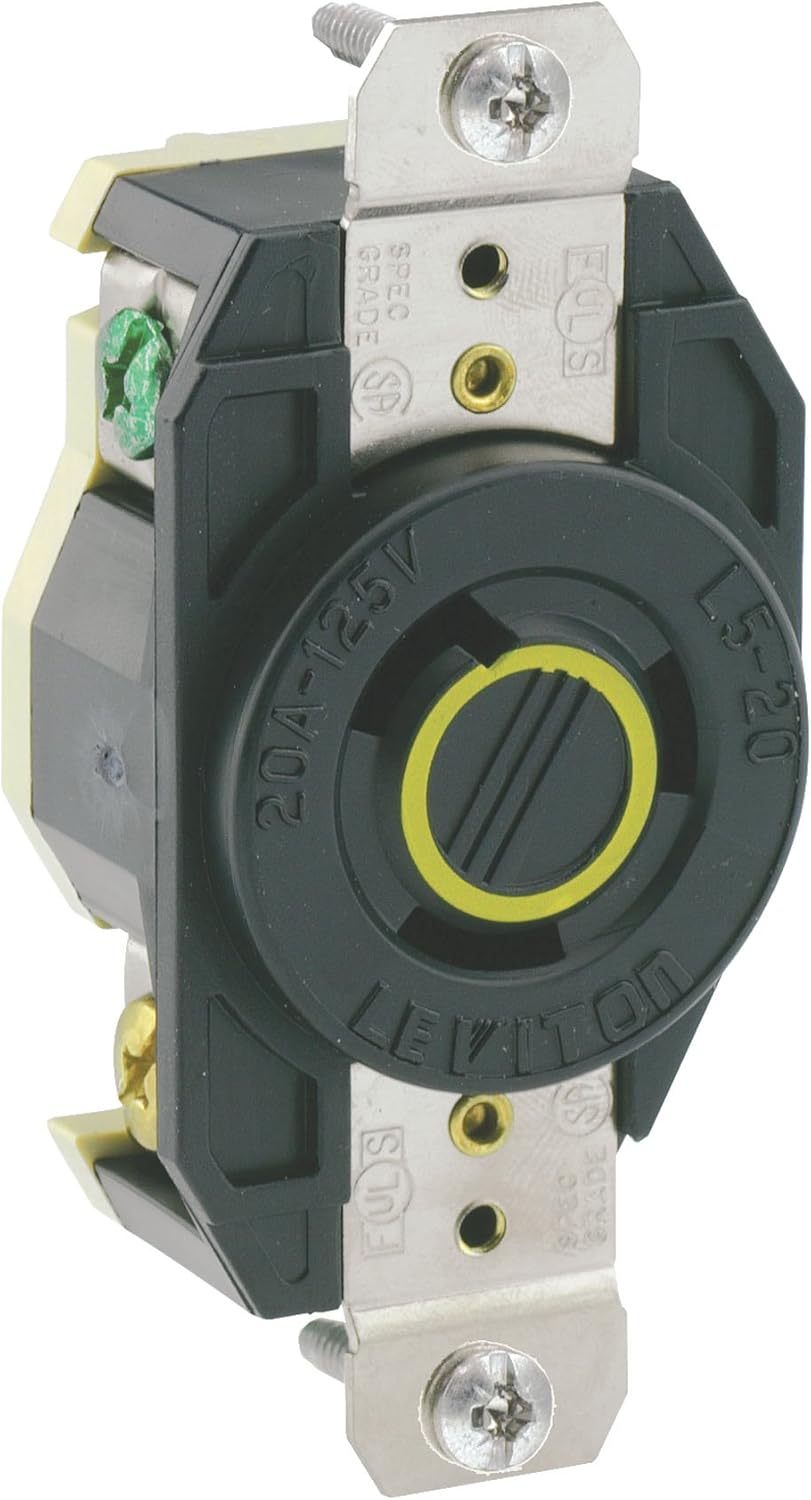

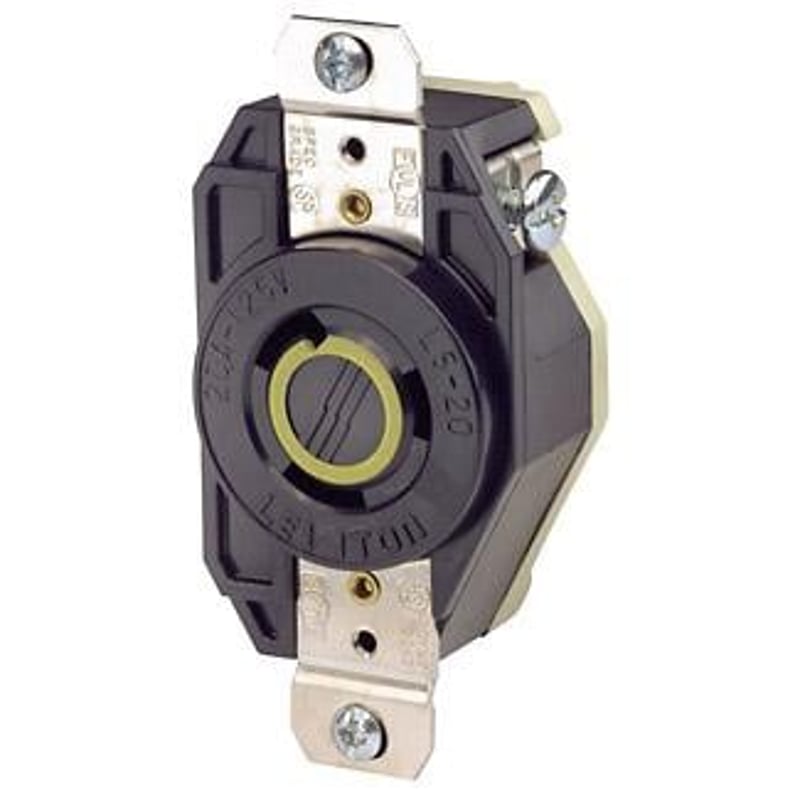

Leviton 2310 locking flush receptacle outlet L5-20R

Product Description

The Leviton 2310 locking flush receptacle outlet L5-20R is a locking receptacle outlet. It is industrial grade and grounding. This receptacle is designed for flush mounting and provides a secure connection in demanding environments. It supports 2 poles and 3 wires.

• 20 Amp, 125 Volt
• Flush Mounting
• Industrial Grade

Product Highlights

This locking receptacle is ideal for industrial applications requiring a reliable and secure power connection.

Product Information

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: 2310
• Country of Origin: MX

Technical Specifications

• Color: Black
• Voltage: 125 VAC
• Material: Plastic
• Certification: CSA, UL
• Amperage: 20 A
• Horsepower: 1 hp
• Poles: 2
• Wires: 3
• NEMA Rating: NEMA L5-20R
• Grade: Industrial Grade
• Temperature Range: -40 to 60 deg C
• Terminal Type: Back/Side Wire Terminal
• Application: Commercial Applications
• Standards/Approvals: NEMA WD1/WD6|ANSI C73|NOM 057|CSA C22.2 No. 42|Federal Specification WC596/E13399|UL 498|UL94 V-0/V-2 Flammability Rating
• Grounding: Grounding
• Base Material: Valox
• Body Material: Nylon
• Face Material: Ultramid
• Line Contacts: Brass
• Terminal ID: Marked on Device
• Termination: Back & Side
• Cover Material: Valox 357
• Strap Material: Nickel Plated Brass
• Torque Range: 14-16 in-lbs
• Ground Contacts: Brass
• Grounding Screw: Chromated Brass
• Terminal Clamps: Zinc-Plated Brass
• Terminal Screws: Chromated Brass
• Flammability: Rated V-0 per UL 94
• Terminal Accom.: 14-8 AWG
• Current Limiting: Full Rated Current
• Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
• NEMA: L5-20R
• Wire Size: 14-8
• Connection: Back Wired;Side Wired
• Environmental Conditions: UL 94 Requirements, V0 and V2 Rated Flammability
• Manufacturer Name: Leviton
• Brand Name: Leviton
• UPC: 078477801109
• GTIN: 00078477801109
• Alternative Part Number: 7327121
• Mounting: Flush
• Conductor Size: 14-8 AWG
• Dielectric: 2000 V
• Product UPC: 07847780110
• Termination Type: Back Wire,Side Wire
• Flamability Class: Rated V-0 Per UL 94
• Ground Clips: Nickel-Plated Brass
• Torque: 14 lb-in
• Enclosure: WD-6
• Applications: Commercial
• TC Connection: Back Wired;Side Wired
• Connection Type: Back and Side Wire
• Country Of Origin: Mexico
• UNSPSC: 39121406
• Item Name: Single Locking Receptacle
• Contact Material: 0.04 Inch Brass
• Style: Single
• Sub Brand: V-O-Max®
• Type: Impact-Resistant, Chemical-Resistant
• Standards: UL 498 E13399 Listed, UL Federal Specification: W-C-596, CSA C22.2 No.42, ANSI C-73, NOM 057, NEMA WD-1, WD-6
• Configuration: L5-20R
• Constructional Feature: Impact Resistant, Abuse Resistant
• Ground Type: Grounding
• Wiring: Back, Side
