Description

Product Description

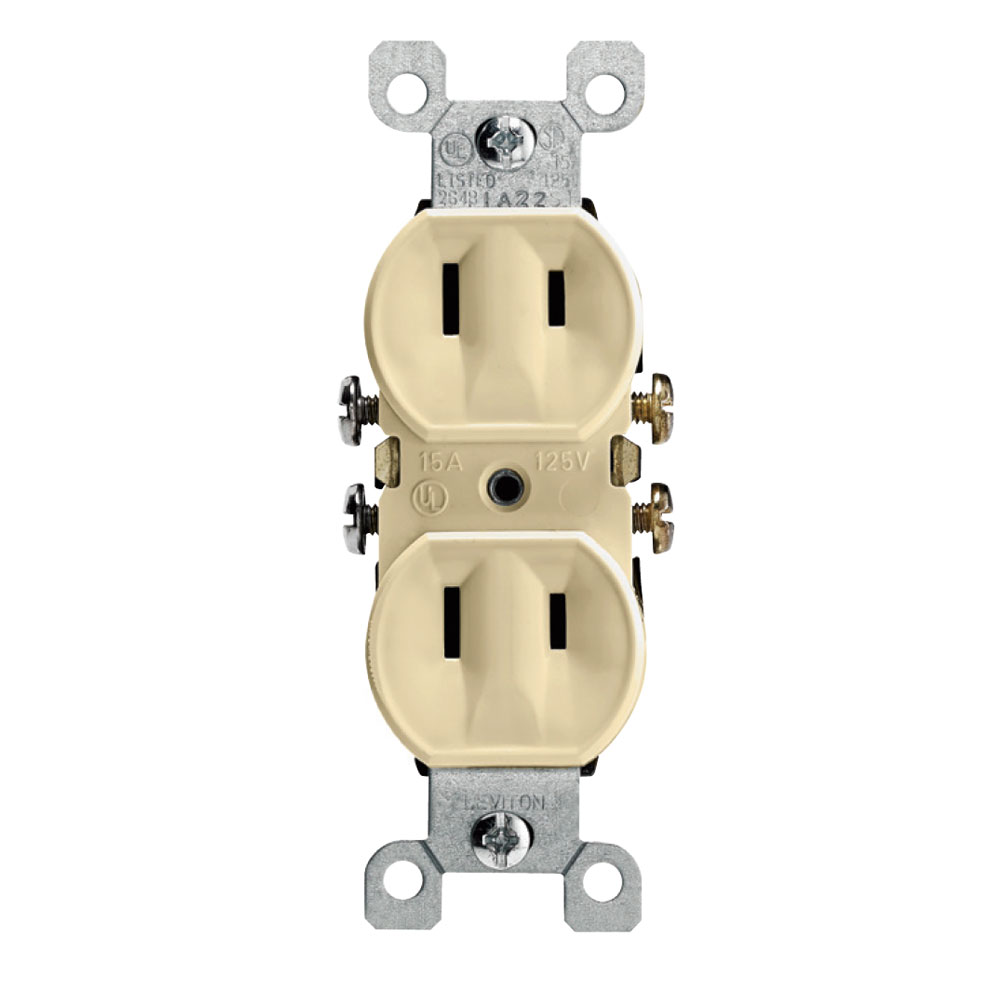

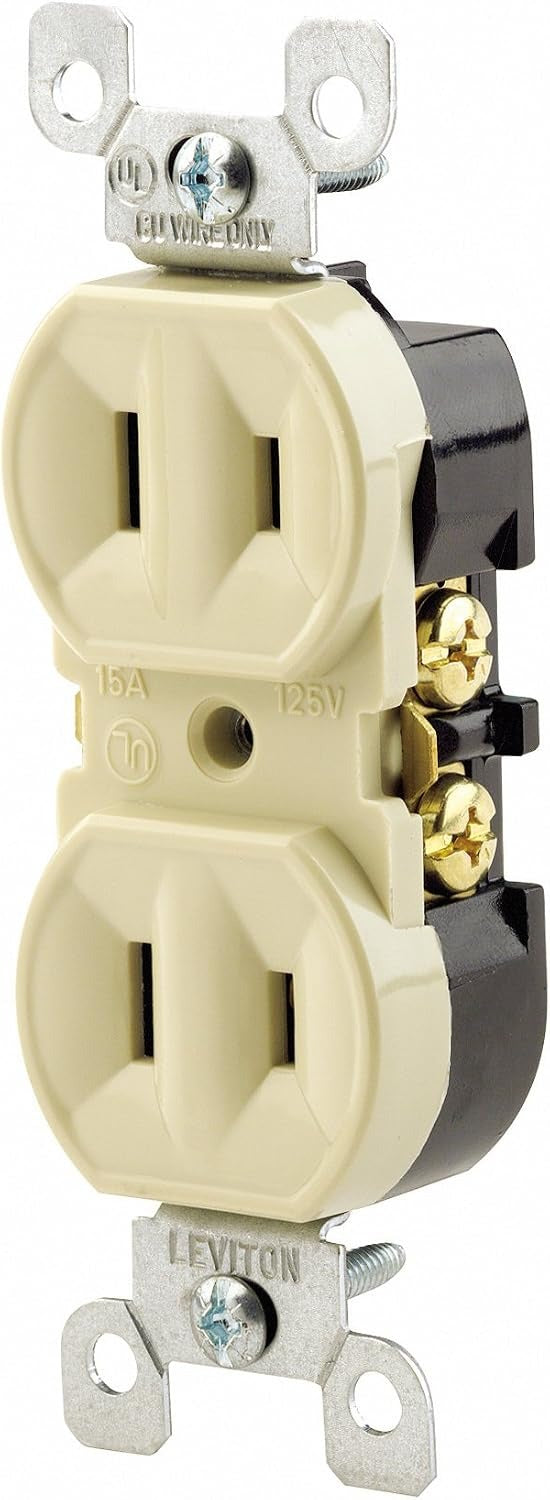

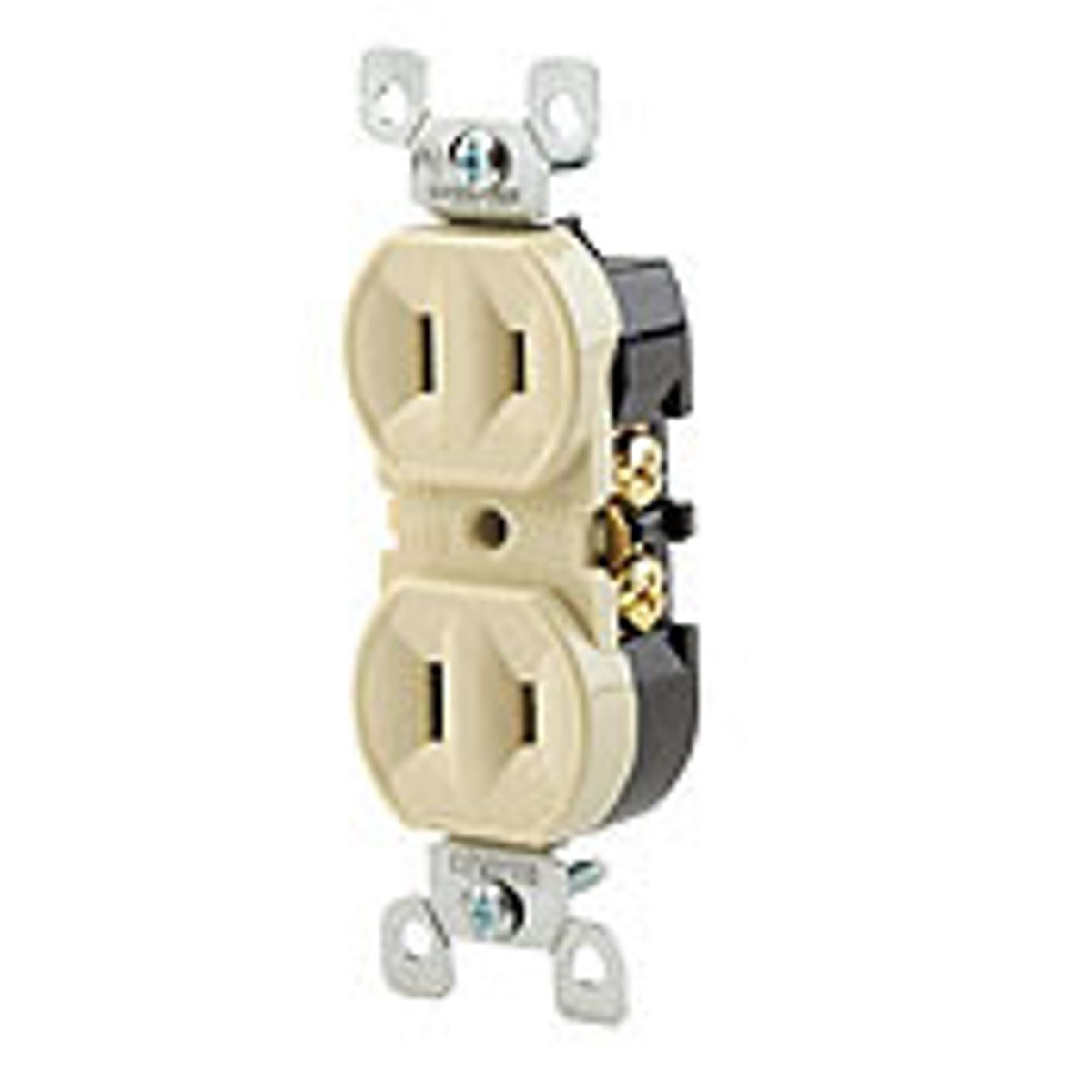

Leviton 223-I is a residential-grade duplex non-grounding receptacle rated 15 Amp and 125 Volt. The unit provides two straight-blade outlets (2-pole, 2-wire) with side-wire termination and a steel mounting strap for wall mounting. Constructed of nylon and steel, the receptacle measures approximately 4.3 x 1.5 x 1 inches, is UL/CSA listed, and is rated for -40 to 60 degrees C operating temperature.

  • Rated 15 A, 125 V; NEMA 1-15R two-pole, two-wire duplex non-grounding configuration
  • Side-wire termination with steel mounting strap; shallow design for wiring room
  • Nylon and steel construction; operating temperature -40 to 60 °C; UL and CSA certifications

Product Highlights

Residential-grade, non-grounding duplex receptacle; side wired; 15 A/125 V; nylon and steel construction; UL/CSA listed.

Product Information

Standard Information

  • Brand: LEVITON
  • Manufacturer Part Number: 223-I
  • Country of Origin: Please Contact Customer Service
Technical Specifications
Brand
Leviton
Manufacturer Part Number
223-I
Alternate Part Number
006-00223-00I
UPC
078477791783
Type
Duplex receptacle, non-grounding, straight blade
Grade
Residential
Voltage Rating
125 V
Amperage Rating
15 A
NEMA Rating
NEMA 1-15R
Number of Poles
2
Number of Wires
2
Termination Type
Side wired
Mounting Type
Wall / wallplate
Material
Nylon, Steel
Strap Material
Steel
Dimensions
4.3 x 1.5 x 1 inches
Temperature Rating
-40 to 60 °C
Torque
14 lb-in
Flammability Rating
V-2 per UL94
Certifications
UL listed; CSA certified; NOM
Pack Quantity
1
Country of Origin
United States
