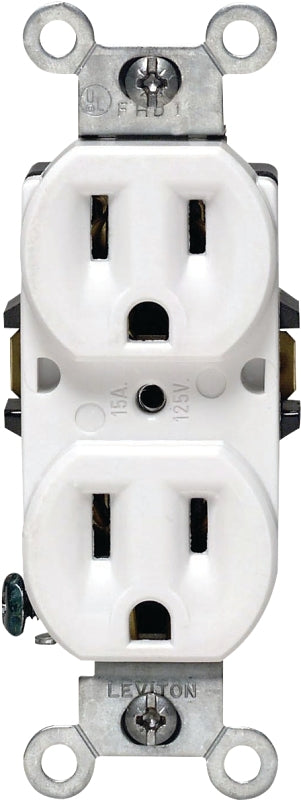

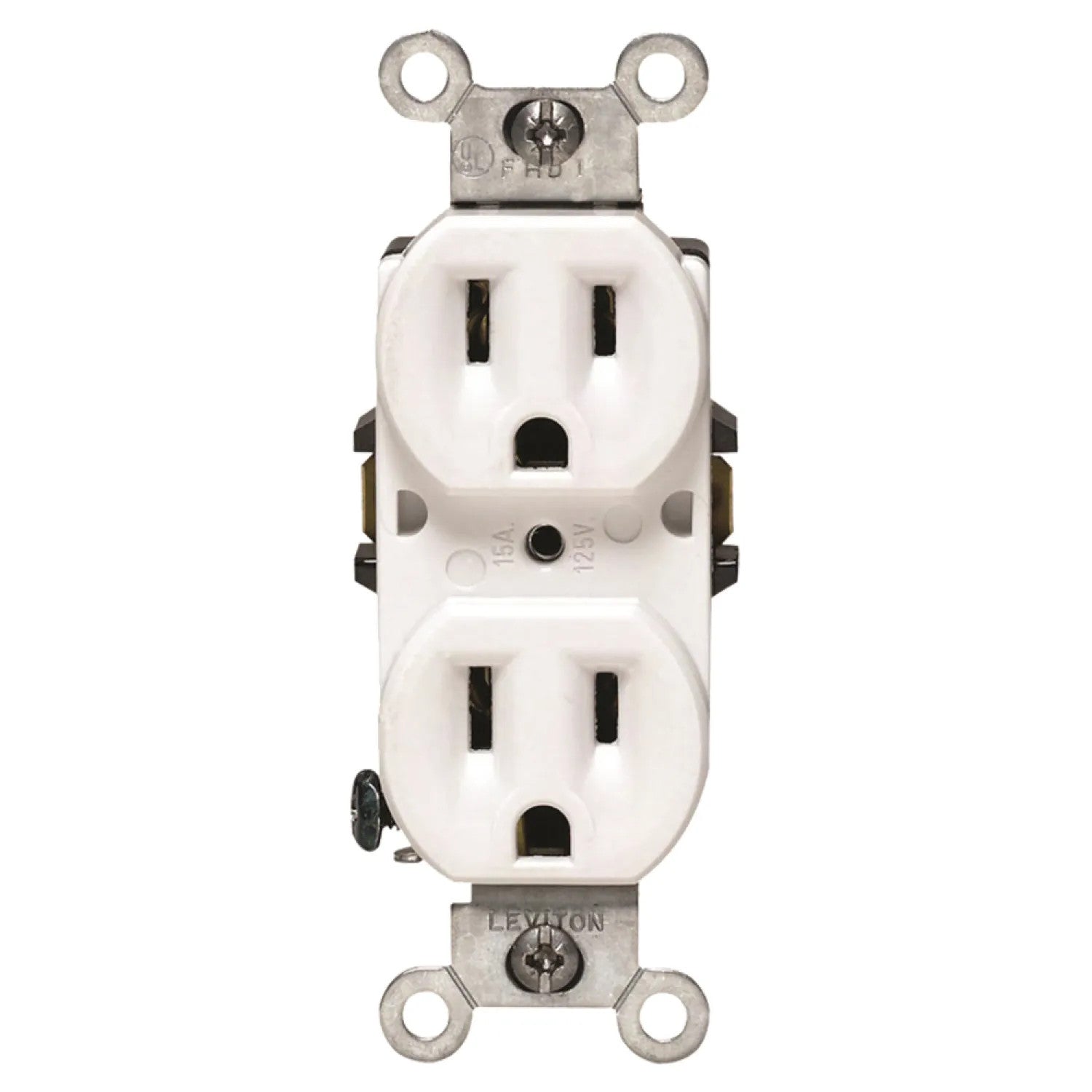

Leviton 218-05248-WCP Duplex Receptacle 15 A

Product Description

The Leviton 218-05248-WCP is a residential-grade duplex receptacle. It is designed for standard configurations and includes features that enhance ease of use. Constructed from thermoplastic, this receptacle has a shallow build to optimize wiring space. It also includes break-off plaster ears and tabs for alignment and supports two-circuit conversion.

• No terminal screws, 8-hole quickwire accepts #14 copper or copper-clad wire
• Double-wipe power contacts for maximum conductivity and plug retention
• Heavy-gauge rust-resistant steel mounting strap

Product Highlights

This duplex receptacle is suitable for a variety of residential applications. Its user-friendly design simplifies installation and ensures reliability.

Product Information

Standard Information

• Brand: Leviton
• MPN: 218-05248-WCP

Technical Specifications

• Color: White
• Current Rating: 15 A
• Frequency Rating: 60 Hz
• Material: Thermoplastic
• Mounting Type: Wall
• NEMA Configuration: 5-15R
• Number of Poles: 2
• Number Of Wires: 3
• Operating Temperature: -40 to 60 deg C
• Voltage Rating: 125 V
• Wire Size: 14 AWG
• Wiring Type: Push-In Side
