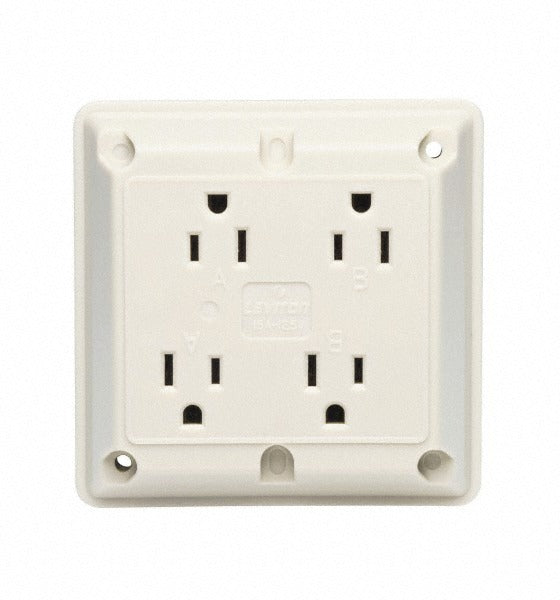

Leviton 21254-I Nema 5-20R 20A Fourplex Receptacle Ivory

Product Description

The LEVITON 21254-I is a specification-grade fourplex straight blade receptacle rated at 20 amps and 125 volts AC, configured to NEMA 5-20R. It provides four outlet positions in a single device, making it well suited for commercial and industrial panel installations where outlet density is needed without adding extra boxes. The body is molded from nylon, offering chemical, corrosion, and impact resistance. A self-grounding design eliminates the need for a separate grounding clip when mounted to a metal yoke or box, streamlining installation for licensed electricians on specification-grade work.

This receptacle is used in commercial, institutional, and light industrial settings where 20-amp, 125-volt circuits serve multiple loads from a single flush-mount location. Typical applications include office workstations, equipment rooms, server closets, and utility areas. Its specification grade rating makes it appropriate for projects requiring listed devices that meet ANSI, CSA, and UL standards. The flush mount configuration fits standard single-gang or multi-gang boxes depending on the plate used.

Key Features

• Fourplex design provides four NEMA 5-20R outlets in one device
• Specification grade construction with nylon body rated for chemical, corrosion, and impact resistance
• Self-grounding yoke eliminates the need for a separate grounding clip at a metal box
• Back-wired termination for clean, code-compliant connections
• Single-phase, 2-pole, 3-wire configuration at 20 amps and 125 volts AC
• Listed under UL 498, CSA C22.2 No. 42, ANSI C-73, NEMA WD-1 and WD-6, and NOM 057

Compatibility

Designed as an OEM-style specification-grade replacement or new-installation receptacle for flush-mount 20-amp, 125-volt NEMA 5-20R applications in commercial and light industrial wiring systems.

Installation Notes

Installation must be performed by a qualified electrician in accordance with NFPA 70 (NEC) and all applicable local codes. De-energize the circuit at the breaker panel and verify the absence of voltage with a meter before handling any wiring. Back-wired terminations should be made per the torque and strip-length markings on the device. The self-grounding feature is only effective when the device is mounted to a properly grounded metal enclosure.
