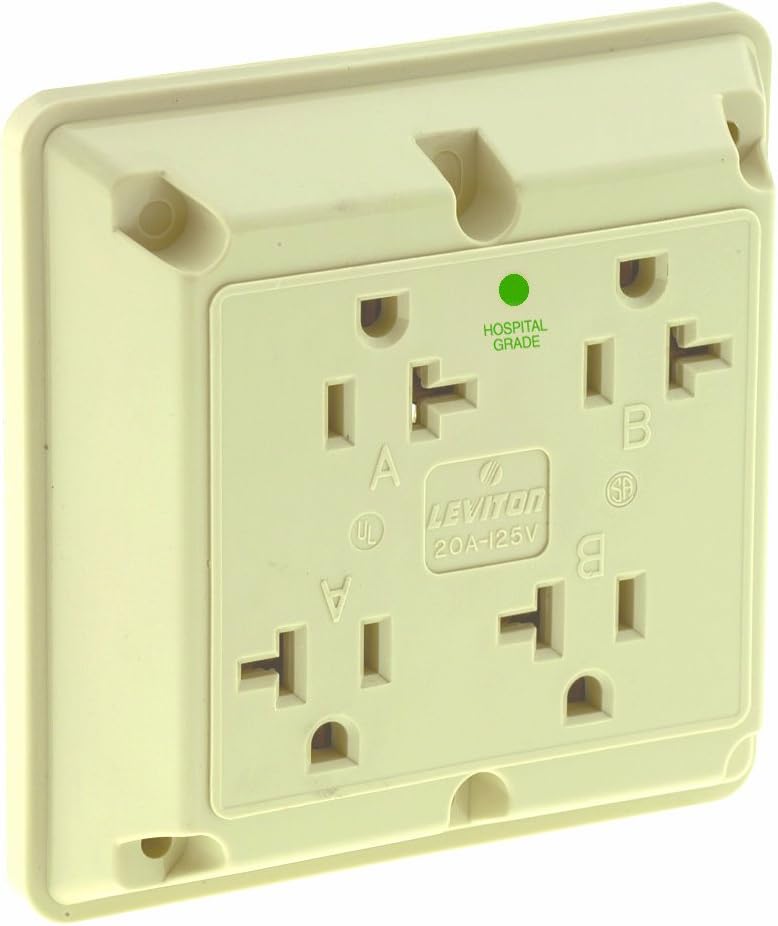

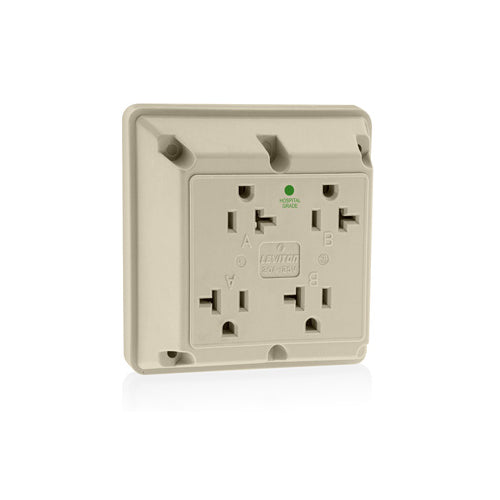

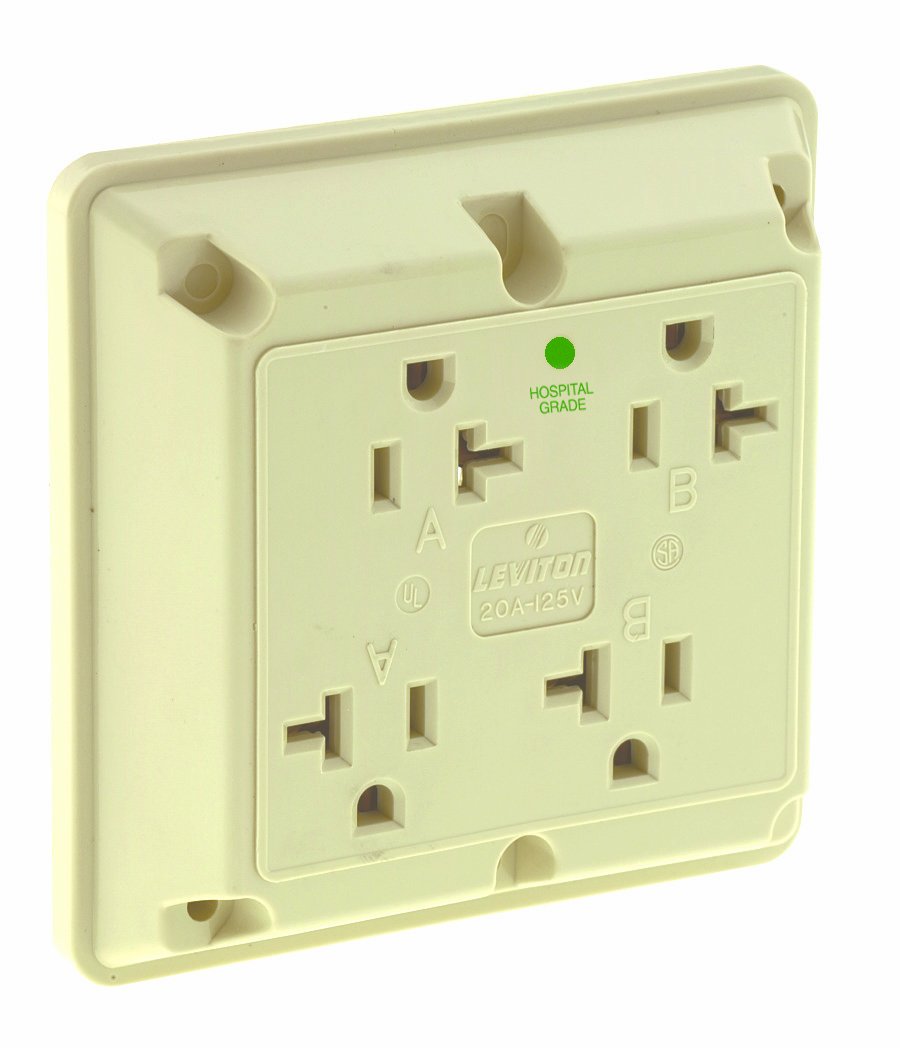

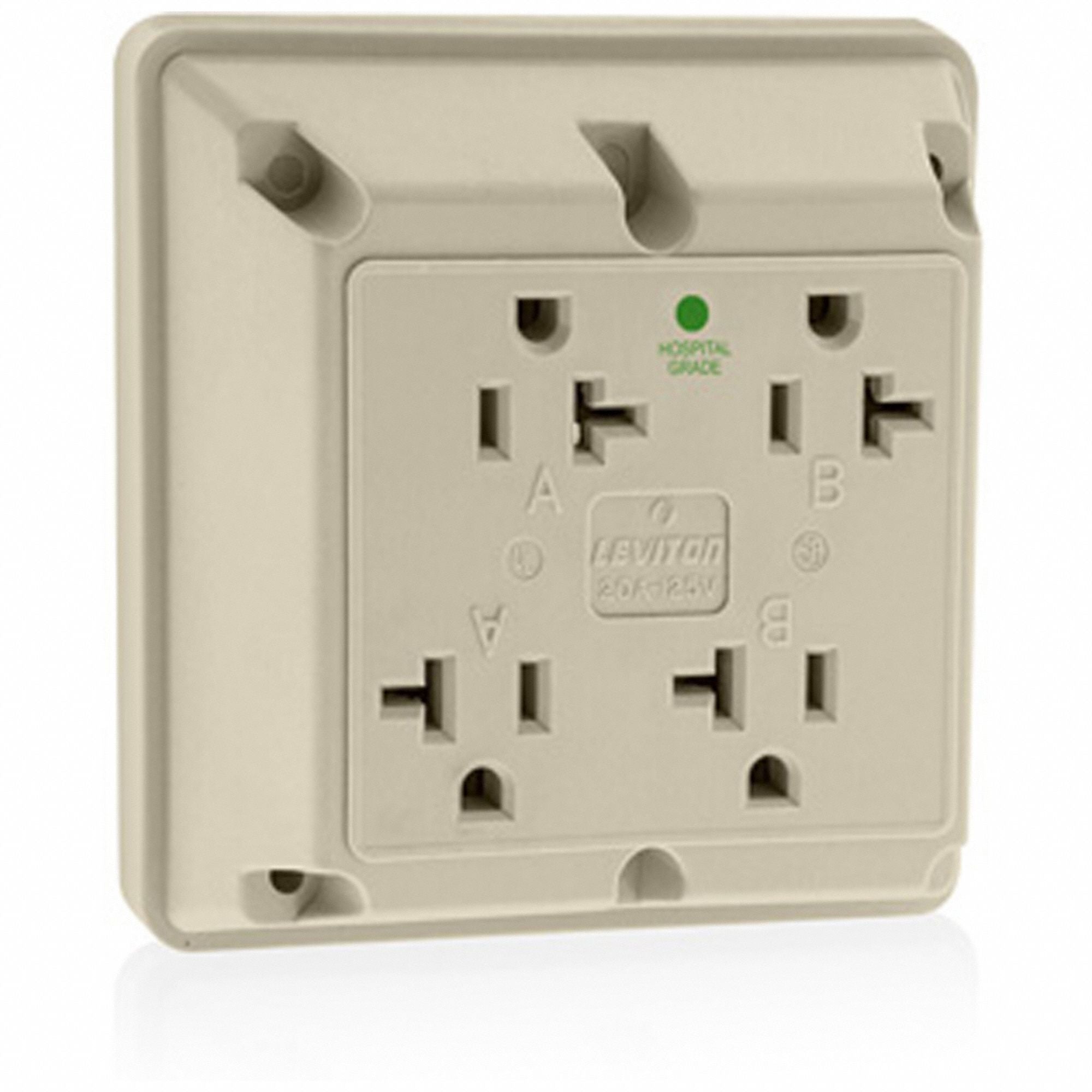

Leviton 21254-HI Industrial Series 4-in-1 Receptacle 20 Amp 125 Volt (4-in-1)

Product Description

Leviton 21254-HI is a 20 Amp, 125 Volt industrial-series extra heavy-duty hospital-grade 4-in-1 straight blade grounding receptacle. The unit features a nylon body and face, zinc-plated steel 8-32 mounting screws, and UL listing for wired electrical installations. It provides four grounded outlets in a single device for high-abuse environments such as healthcare facilities, manufacturing, and schools.

• Rated 20 A, 125 V with straight blade grounding and 4-in-1 (quadruplex) configuration
• Nylon construction with zinc-plated steel 8-32 mounting screws and UL certification
• Designed for wired electrical installation and high-abuse environments (hospital/industrial)

Product Highlights

Four grounded outlets in one hospital-grade, extra heavy-duty industrial receptacle with nylon construction and UL listing.

Product Information

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: 21254-HI
• Country of Origin: Mexico

Technical Specifications

• Brand: Leviton
• Manufacturer Part Number: 21254-HI
• Description: Industrial series extra heavy-duty hospital-grade 4-in-1 straight blade grounding receptacle
• Voltage Rating: 125 V
• Current Rating: 20 A
• Configuration: 4-in-1 (quadruplex)
• NEMA Configuration: 5-20R
• Poles: 2
• Wires: 3
• Number of Outlets: 4
• Material: Nylon (body/face)
• Contacts: T-type triple-wipe bronze / phosphor bronze (per manufacturer data)
• Terminal Type: Side wire / screw terminal
• Wire Size (Terminal Accommodation): 14-12 AWG
• Mounting Type: Screw mount
• Mounting Screws: Zinc-plated steel 8-32
• Strap Material: Steel (galvanized strap reported)
• Standards and Certifications: UL 498; UL498HG; CSA C22.2 No. 42; NEMA WD-1 WD-6; ANSI C-73; NOM
• Operating Temperature: -40 to +60 C
• Flammability Rating: V-2 per UL94 (reported)
• Dielectric Withstand: 2000 V (per UL498)
• Torque Range (Terminal Screws): 10-12 in-lbs (reported)
• Country of Origin: Mexico
• Product Type: Electrical outlet (receptacle)
• Grade: Industrial / Hospital / Extra heavy duty
• UPC: 078477830819
