Leviton 21254 Fourplex Receptacle Nema 5-20R 20A 125V

Product Description

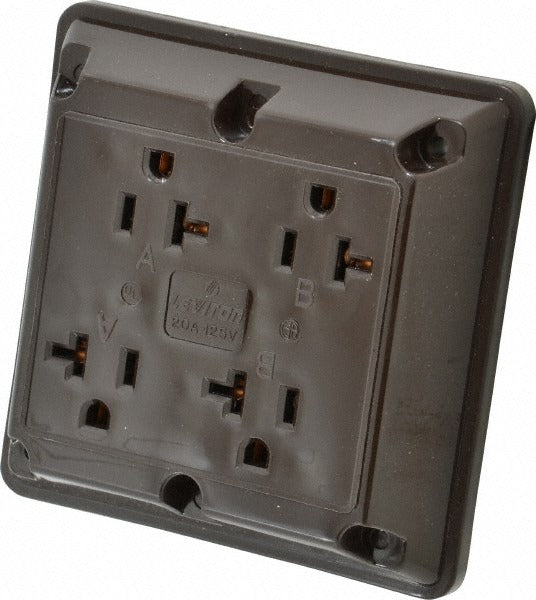

The LEVITON 21254 is a specification-grade, straight blade fourplex receptacle rated at 20 amps and 125 volts AC, configured to NEMA 5-20R. It provides four outlets in a single flush-mount device, making it a practical solution in commercial and light industrial wiring applications where multiple outlets are needed at a single box location. The body is molded from nylon and carries ratings for chemical, corrosion, and impact resistance. Self-grounding construction eliminates the need for a separate grounding clip during installation. Licensed electricians and experienced electrical contractors are the primary installers of this device.

This fourplex receptacle is suited for flush-mount applications in commercial offices, workshops, data rooms, and similar environments where a single gang location must serve multiple 20-amp branch circuit loads. Back wiring is supported, and the single-phase, 2-pole, 3-wire configuration is standard for 125V, 20-amp circuits. The brown finish is commonly specified in commercial interiors. With a specification grade rating, it is built to tighter tolerances than residential-grade devices and is appropriate for high-use or high-cycle installations.

Key Features

• NEMA 5-20R configuration — accepts standard 20-amp straight blade plugs
• Specification grade construction for high-cycle commercial use
• Self-grounding design simplifies installation and meets NEC grounding requirements without a separate clip
• Nylon body rated for chemical, corrosion, and impact resistance
• Flush mount, back wiring, single-phase 2-pole 3-wire layout
• UL Listed, CSA Certified, and meets ANSI, NEMA, and NOM standards

Compatibility

Designed as an OEM-style specification-grade replacement or new-installation fourplex receptacle for standard single-gang or multi-gang flush-mount electrical boxes wired on 20-amp, 125V branch circuits per NEC Article 406.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the NEC and applicable local codes. De-energize the branch circuit at the panel and verify with a meter before beginning work. Back wiring is supported on this device. The self-grounding feature requires proper contact with a grounded metal yoke or box — verify continuity of the equipment ground path before closing up the box.
