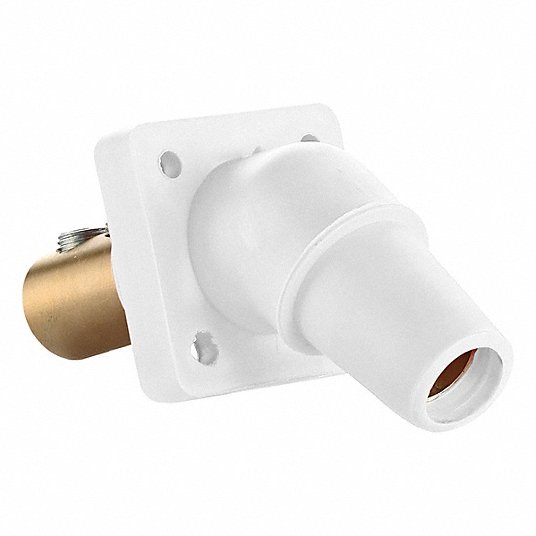

Leviton 16R28-UW female panel receptacle 400A 45-degree

Product Description

The LEVITON 16R28-UW is a Rhino-Hide single pole cam-type female panel receptacle designed for temporary electrical power in indoor and outdoor applications. Featuring a 45-degree angle, it's ideal for space-constrained setups. It supports a cable range of 2/0 to 4/0 AWG and is rated for up to 400 amps. These devices are designed for easy assembly and disassembly, without special tools.

• NEMA 3R rated for outdoor use when mated

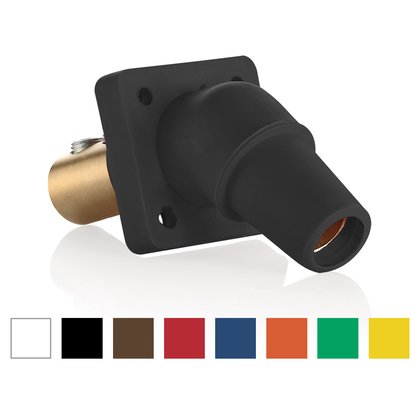

• Color-coding provides fast and easy phase identification
• Double set screw termination

Product Highlights

This female panel receptacle is suitable for entertainment, oil and gas, mining, power distribution, and construction site applications.

Product Information

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: 16R28-UW
• Country of Origin: Mexico

Technical Specifications

• Amperage: 400
• Connection Type: Female
• Voltage: 600V
• Max. Amperage: 400 Amp
• Max. Voltage: 600 Volt
• Contacts: Brass
• Cable Range: 2/0 – 4/0 AWG
• Connection Orientation: Angled
• Termination Type: Double Set Screw
• Gender: Female
• NEMA Rating: Type 3R
• UL: 1691, 508 – 35k A / 600V Short Circuit Current Rating
• Manufacturer: Leviton
• Part Number: 16R28-UW
• Item model number: 16R28-UW
• Material: Brass
• Item Package Quantity: 1
• Certification: CSA, UL
• Included Components: Device
• Batteries Required?: No
• Series: 16
• Contact Material: Brass
• Current Rating: 400 A
• End Type: Taper
• Nose: Flange Height
• Flange Height: 2.29 in
• Flange Shape: Square
• Flange Width: 0.5 in
• Housing Material: Santoprene TPV
• Maximum Wire Size: 4/0 AWG
• Minimum Wire Size: 2/0 AWG
• Mounting Location: Surface
• Mounting Style: Threaded
• NEMA Enclosure Rating: 3R
• Phase: Single
• Receptacle Gender: Female
• For Male: Plugs
• Standards: UL 1691
• Voltage Rating: 600V AC
• Wire Size Range: 2/0 AWG – 4/0 AWG
• Overall Length: 3.62 in
• Overall Width: 2.29 in
• ADI Part Number: LV-16R28UW
• Brand Name: Leviton
• Manufacturer Part Number: 16R28UW
• Product Line: Rhino-Hide
• Product Name: Female Receptacle, 45-Degree, 2/0 - 4/0 AWG, Double Set Screw Termination
• Product Series: 16
• Product Type: Power Socket
• Certifications & Standards: CSA Standard : 1691UL : 1691
• Housing Color: White
• Country of Origin: Mexico
