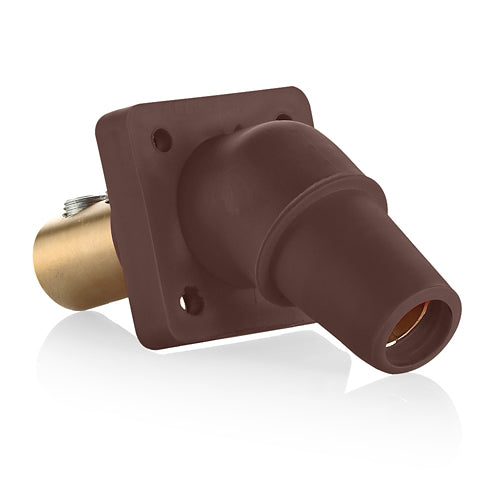

Leviton 16R28-UH Br F Pnl Recept 45-Deg Dbl Ss 2/0-4/0

Product Description

The Leviton 16R28-UH is a single pole cam-type receptacle that supplies temporary electrical power for indoor and outdoor applications. It is designed for easy assembly and disassembly without special tools. It is NEMA 3R-Rated for use in outside locations. Common applications include entertainment, oil and gas, and construction sites.

• Intermateable and compatible with competitive cam-type products
• Shatter and crack proof
• Color-coded insulating sleeves provide fast and easy phase identification

Product Highlights

The Leviton 16R28-UH receptacle features quick connect/disconnect, high conductivity, and self-compensation for wear.

Product Information

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: 16R28-UH
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: 16R28-UH
• Manufacturer: Leviton
• Brand: Leviton
• Country of Origin: Mexico
• Made in USA: No
• UPC: 078477573365
• GTIN: 00078477573365
• Amperage Rating: 400 A
• Connection Type: Screw
• Contact Material: Brass
• Housing Material: Santoprene TPV
• Mounting Type: Panel
• NEMA Rating: NEMA 3R
• Series: 16 Series
• Voltage Rating: 600 V
• RoHS Compliant: TRUE
• Type: Wiring Devices > Single Pole Devices
• Features: Single Pole Receptacle, Connection Orientation Angled, Current Rating 400 A, Gender Female, Housing Color Brown, Housing Material Santoprene TPV, Maximum Wire Size 4/0 AWG, Minimum Wire Size 2/0 AWG, Voltage Rating 600V AC, 600V DC, End Type Taper Nose, Flange Shape Square, NEMA Enclosure Rating 3R, Standards CSA, UL, Terminal Connection Type Double Set Screw, For Location Outdoor, Maximum Operating Temperature 185 Degrees F, Minimum Operating Temperature -40 Degrees F, Mounting Location Surface
• MPN: 16R28-UH
• AWG Range: 2/0 - 4/0 AWG
• Rated Voltage: 600V
• Maximum Wire Size: 4/0 AWG
• Minimum Wire Size: 2/0 AWG
• Terminal Connection Type: Double Set Screw
• Maximum Operating Temperature: 185 Degrees F
• Minimum Operating Temperature: -40 Degrees F
• Mounting Location: Surface
