Leviton 16R24-UR Rd Fem Pnl Rec Stud .75 inches Tap Nose #2-4/0

Product Description

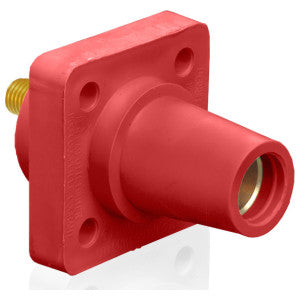

The Leviton 16R24-UR Rhino-Hide Single Pole Receptacle is a 90 deg Cam Type Female Taper Nose. This 16 Series receptacle supports 600 VAC/VDC and 400 A, accommodating 2 to 4/0 AWG wire. It features a threaded/stud connection, brass contact, and Santroprene TPV housing, with a NEMA 3R rating for panel mounting.

• Intermateable and compatible with competitive cam type products can be retrofitted to existing locations and power distribution systems
• Shatter and crack proof, high durometer thermoplastic elastomer (TPV) or neoprene rubber

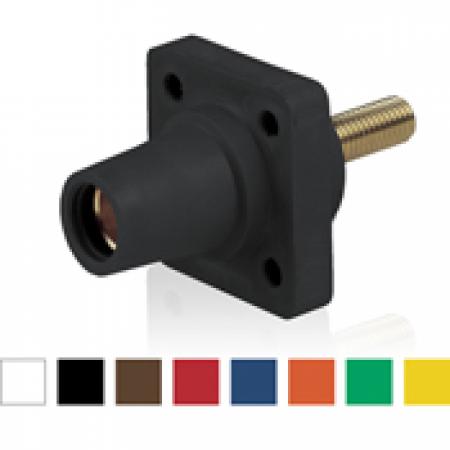

• Color coded insulating sleeves for fast and easy phase identification

Product Highlights

This receptacle is ideal for motor, generator splices, mining, construction sites, and other temporary power applications.

Product Information

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: 16R24-UR
• Country of Origin: MX

Technical Specifications

• Amperage Rating: 400 A
• Color: Red
• Connection Type: Threaded/Stud
• Contact Material: Brass
• Housing Material: Santroprene TPV
• Mounting Type: Panel
• NEMA Rating: NEMA 3R
• Series: 16 Series
• Type: 90 deg Cam Type Female Taper Nose
• Voltage Rating: 600 VAC
• Wire Size: 2 to 4/0 AWG
• Standard: UL-1691
• Sub Brand: Rhino-Hide
• Brand: Leviton
• Material: Thermoplastic
