Leviton 16R24-UG 400A 600V Nema 3R Panel Receptacle

Product Description

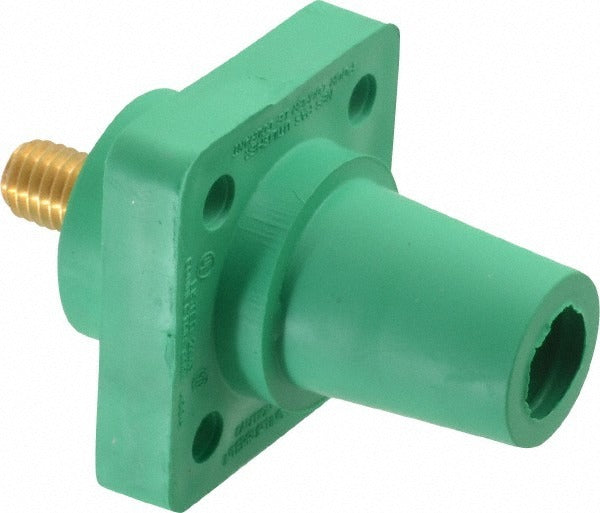

The LEVITON 16R24-UG is a female panel receptacle rated for 400 amps at 600 volts, designed for heavy-duty electrical distribution applications. It features a threaded stud termination method and accepts wire sizes from 2 AWG up to 4/0 AWG, making it suitable for high-current service entrance and panel feed connections. The enclosure carries a NEMA 3R rating, indicating protection against falling rain and sleet, which allows installation in outdoor or semi-exposed locations. Licensed electricians and electrical contractors install this receptacle in commercial, industrial, and utility panel assemblies where robust, code-compliant connections are required. The unit measures 3.56 inches in length and is finished in green for field identification.

This panel receptacle is used in applications requiring secure, high-ampacity female connections at switchgear, distribution panels, load centers, and service equipment. The NEMA 3R rating makes it appropriate for weatherproof enclosures in outdoor service applications. Its threaded stud design provides a mechanically secure termination that resists vibration and maintains consistent contact pressure under load cycling. Typical installations include commercial service entrances, industrial power distribution equipment, and generator interconnect panels where 400-amp capacity and 600-volt insulation are required.

Key Features

• 400-amp continuous current rating at 600 volts
• NEMA 3R rated for outdoor and rain-exposed installations
• Threaded stud termination for mechanically secure, vibration-resistant connections
• Accepts 2 AWG through 4/0 AWG conductors
• UL Listed (File E151429) and CSA certified under LR 76878-4 to standards 1691
• 3.56-inch overall length fits standard panel and enclosure knockouts

Compatibility

Designed as an OEM-style panel receptacle for high-ampacity electrical distribution enclosures and switchgear assemblies requiring a 400-amp, 600-volt female threaded stud connector with NEMA 3R environmental protection.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. De-energize and lock out the panel or service equipment fully before installing or servicing this receptacle. Verify that conductor size and insulation rating are compatible with the 400-amp, 600-volt application before terminating. Do not overtighten the threaded stud connection beyond the torque specification listed on the connector or in the manufacturer installation instructions.
