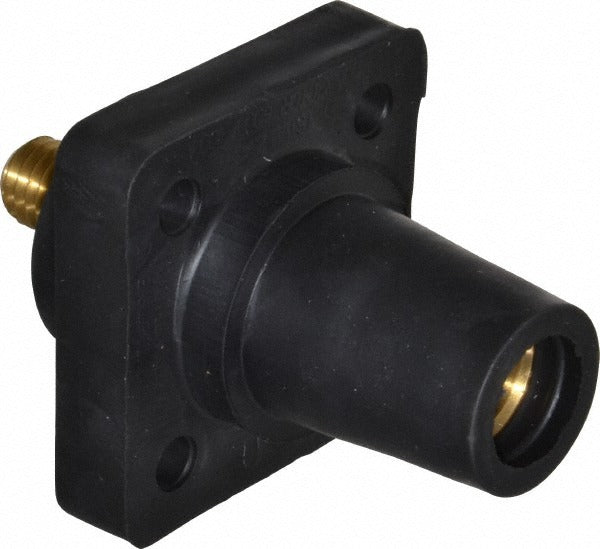

Leviton 16R24-UE Panel Receptacle 400A 600V Nema 3R

Product Description

The LEVITON 16R24-UE is a heavy-duty panel receptacle designed for high-current electrical distribution applications. Rated at 400 amps and 600 volts, it accepts wire sizes from 2 AWG up to 4/0 AWG via a threaded stud termination method. The female end style mounts directly to an enclosure panel, providing a secure and code-compliant connection point for portable power cables and temporary power setups. At 3.56 inches in overall length and finished in black, this receptacle is built for demanding industrial and commercial environments. It carries NEMA 3R rating, making it suitable for outdoor or semi-protected locations where exposure to rain and sleet is a concern.

This panel receptacle is used in temporary power distribution, construction site electrical panels, portable generator hookups, and industrial load centers. Its NEMA 3R rating makes it appropriate for outdoor enclosures and weatherproof panel installations. Licensed electricians install this receptacle in applications requiring robust 400-amp capacity at voltages up to 600 volts, including both single-phase and three-phase distribution systems where high-amperage termination points are needed at the panel face.

Key Features

• 400-amp continuous current rating at up to 600 volts
• Accepts wire sizes from 2 AWG to 4/0 AWG via threaded stud termination
• NEMA 3R rated for outdoor and rain-protected enclosure use
• Female end style for flush panel-mount installation
• UL Listed (File E151429) and CSA certified under LR 76878-4
• Overall length of 3.56 inches fits standard panel knockout configurations

Compatibility

Designed as an OEM-style panel receptacle for high-amperage electrical enclosures and distribution panels requiring a 400-amp, 600-volt female threaded stud connection point with NEMA 3R environmental protection.

Installation Notes

Installation should be performed by a licensed electrician in accordance with applicable NEC requirements for high-amperage terminations and enclosure ratings. De-energize the panel completely and verify with a meter before beginning work. Secure the receptacle to the panel with appropriate hardware for the knockout size and torque fasteners per the enclosure manufacturer guidance. Ensure conductor sizing and lug termination comply with NEC Article 310 for 400-amp circuits.
