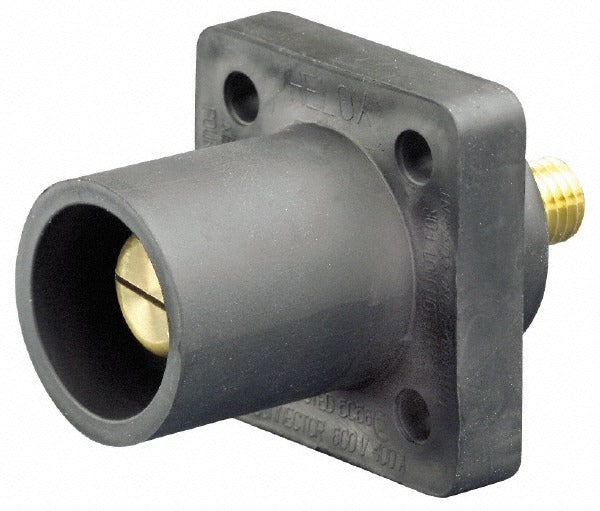

Leviton 16R23-UR Panel Receptacle 600V 400A Nema 3R

Product Description

The LEVITON 16R23-UR is a male panel receptacle rated for 600 volts and 400 amps, designed for heavy-duty electrical distribution applications. It features a threaded stud termination method and accepts wire sizes from 2 AWG up to 4/0 AWG, making it suitable for high-current service entrance and panel connections. The receptacle carries a NEMA 3R rating, indicating it is built to withstand outdoor exposure including rain and sleet. Licensed electricians install this component in industrial, commercial, and utility settings where robust, weatherproof power connections are required at panel enclosures.

This panel receptacle is suited for use in outdoor-rated electrical enclosures, load centers, and service entrance equipment where a secure, high-amperage male connection point is needed. The NEMA 3R rating makes it appropriate for installations exposed to the elements, such as exterior distribution panels, meter bases, and weatherproof disconnect enclosures. The color is red, which aids in visual identification of the connection point. It ships as a single unit and is commonly specified in commercial and light industrial electrical work.

Key Features

• Rated 600 volts and 400 amps for high-current panel applications
• Accepts 2 AWG to 4/0 AWG wire for flexible conductor sizing
• Threaded stud termination provides a secure, low-resistance connection
• NEMA 3R rated for outdoor use with protection against rain and sleet
• UL Listed (File E151429) and CSA certified under LR 76878-4
• Red color aids visual identification at the panel

Compatibility

Designed as an OEM-style replacement or new-installation male panel receptacle for NEMA 3R rated electrical enclosures and distribution panels requiring 600-volt, 400-amp threaded stud connections.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. Shut off and lock out all power to the panel before handling or installing this receptacle. Ensure conductor sizing and termination torque comply with the connector manufacturer specifications and NEC Table requirements for 4/0 AWG and smaller conductors. Inspect the enclosure seal and gasket condition to maintain the NEMA 3R rating after installation.
