Leviton 16R21-UR 16 Series Single Pole Cam Type Male Panel Receptacle 400 Amperes

Product Description

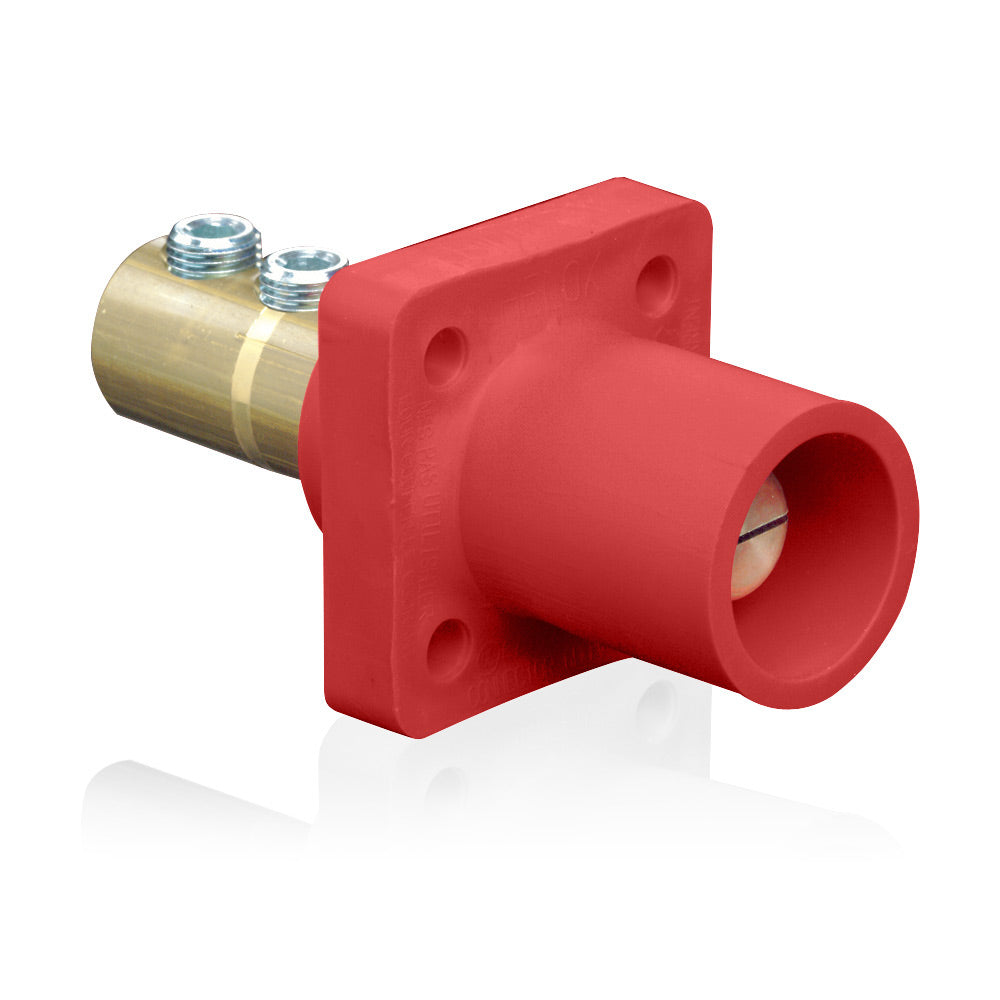

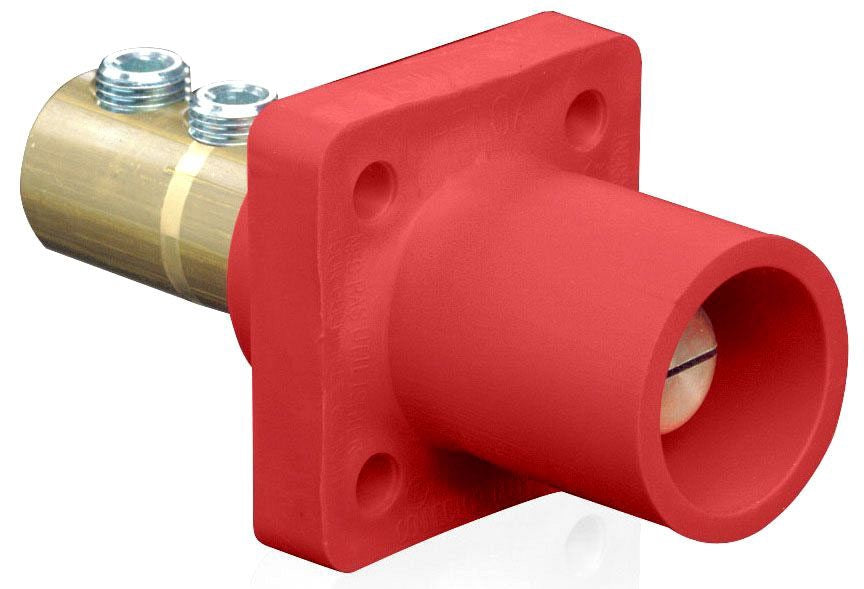

The LEVITON 16R21-UR is a 16 Series single pole cam type male panel receptacle. Rated up to 400 Amperes and 600 Volts, it features a taper nose and double set screw connection. It is designed for easy assembly and disassembly without special tools, suitable for temporary electrical power applications.

• Male Panel Receptacle
• Taper Nose
• Double Set Screw

Product Highlights

This Leviton cam-type connector is ideal for indoor and outdoor applications, including entertainment, construction, and power distribution.

Product Information

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: 16R21-UR
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: 16R21-UR
• Manufacturer: Leviton
• Brand: Leviton
• Country of Origin: Mexico
• Made in USA: No
• Amperage Rating: 400 A
• Color: Red
• Number of Poles: 1
• Special Features: Male Panel Receptacle, Taper Nose
• Item Type: 16 Series Single Pole Cam
• Voltage Rating: 600 V
• Application: Commercial, Navy Shipbuilding, Sports, Entertainment, Movie Industry, Welding, Construction Sites, Theme Parks, Carnival Equipment, Repair, Concert Venues, Convention Centers, Petrochemical, Manufacturing Plant Turnarounds, Motor, Generator Splices, Numerous Other Temporary Power Applications, Mining Operations and Industrial Applications
• Connection Type: Double Set Screw
• Contact Material: Brass
• Housing Material: Santoprene TPV
• Mounting Type: Panel
• NEMA Rating: NEMA 3R
• Series: 16 Series
• Standards/Approvals: UL 1691
• Type: 90 deg Cam Type Male Taper Nose
• Max. Amperage: 400 Amp
• Max. Voltage: 600 Volt
• Contacts: Brass
• Strain Relief: Copper Wire
• Cable Range: 2/0-4/0 AWG
• Gender: Male
• CSA Standard: 1691
• UL: 1691, 508 ">">– 35k A / 600V Short Circuit Current Rating
• RoHS Compliant: Yes
• Amps: 400
• Volts AC: 600
• Material: Thermoplastic Vulcanizate (TPV)
• IP/NEMA Rating: NEMA 3R
• Wire Size: 1/0 to 4/0 AWG
