Leviton 16R21-UG 16 Series Male Rec 400 A

Product Description

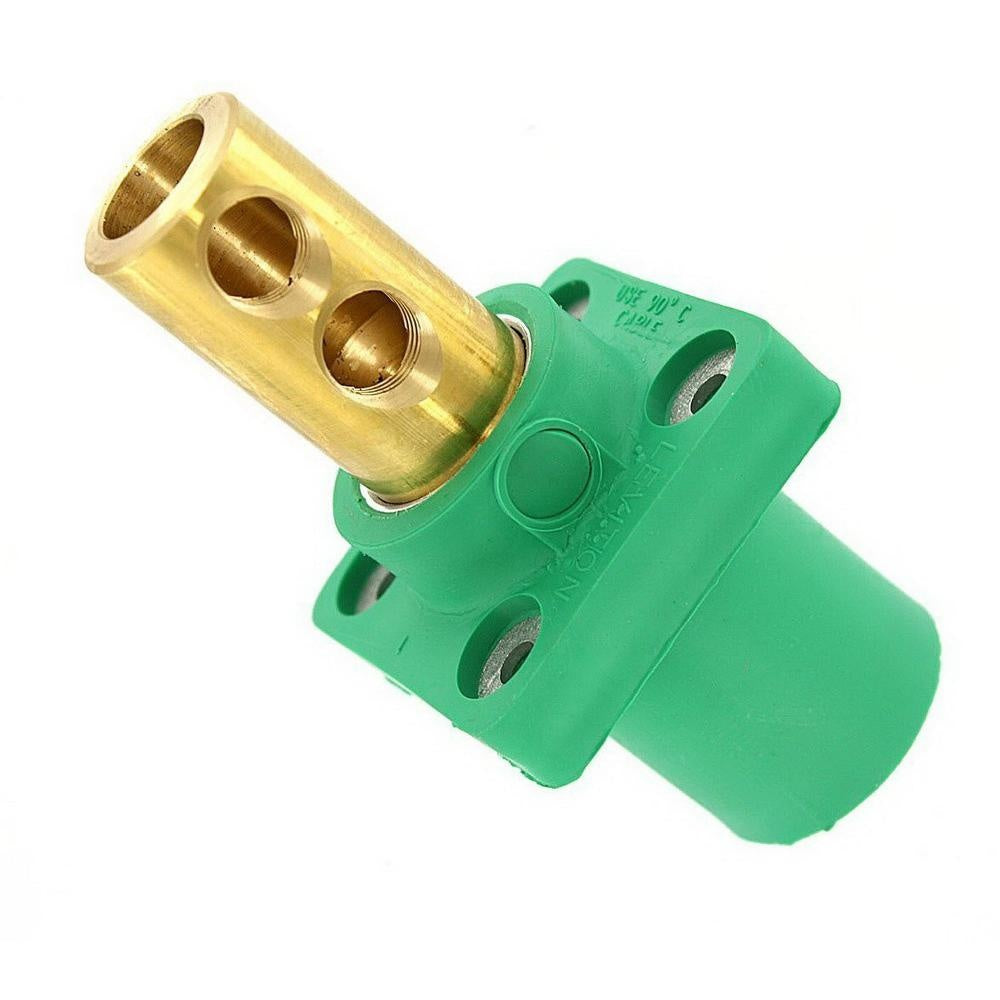

The Leviton 16R21-UG is a single pole, 90-degree cam type male taper nose receptacle. This 16 series receptacle is rated for 600 VAC and 400 A, and accepts 1/0 to 4/0 AWG wire. It features a double set screw connection, brass contact, and Santoprene TPV housing and is NEMA 3R rated for panel mounting.

• Intermateable and compatible with competitive cam type products can be retrofitted to existing locations and power distribution systems
• Shatter and crack proof, high durometer thermoplastic elastomer (TPV) or neoprene rubber

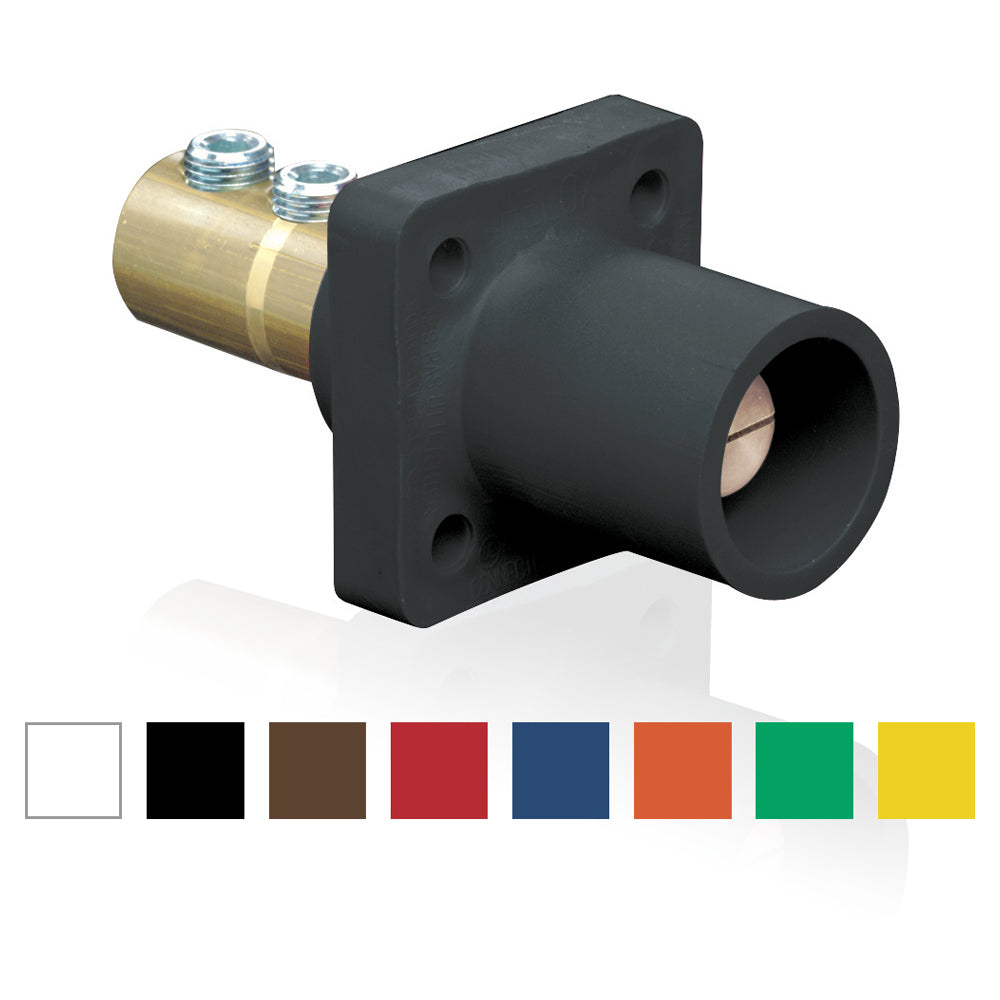

• Color coded insulating sleeves for fast and easy phase identification

Product Highlights

This cam-type male receptacle is ideal for commercial, navy shipbuilding, sports, entertainment, movie industry, welding, construction sites, and other temporary power applications.

Product Information

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: 16R21-UG
• Country of Origin: Mexico

Technical Specifications

• Amperage Rating: 400 A
• Application: Commercial, Navy Shipbuilding, Sports, Entertainment, Movie Industry, Welding, Construction Sites, Theme Parks, Carnival Equipment, Repair, Concert Venues, Convention Centers, Petrochemical, Manufacturing Plant Turnarounds, Motor, Generator Splices, Numerous Other Temporary Power Applications, Mining Operations and Industrial Applications
• Connection Type: Double Set Screw
• Contact Material: Brass
• Housing Material: Santoprene TPV
• Manufacturer Part Number: 16R21-UG
• Mounting Type: Panel
• NEMA Rating: NEMA 3R
• Series: 16 Series
• Standards/Approvals: UL 1691
• Type: 90 deg Cam Type Male Taper Nose
• Voltage Rating: 600 VAC
• Wire Size: 1/0 to 4/0 AWG
• Brand Name: Leviton
• Sub Brand: Rhino-Hide
• Max. Amperage: 400 Amp
• Max. Voltage: 600 Volt
• Cable Range: 2/0-4/0 AWG
• Gender: Male
• UL: 1691, 508 – 35k A / 600V Short Circuit Current Rating
• RoHS Compliant: Yes
• Amps: 400
• Volts AC: 600
• Material: Thermoplastic Vulcanizate (TPV)
• Country of Origin: Mexico
