Leviton 16R21-UE 16 Series Single Pole Cam Type Male Panel Receptacle 600 Volts 400 Amperes

Product Description

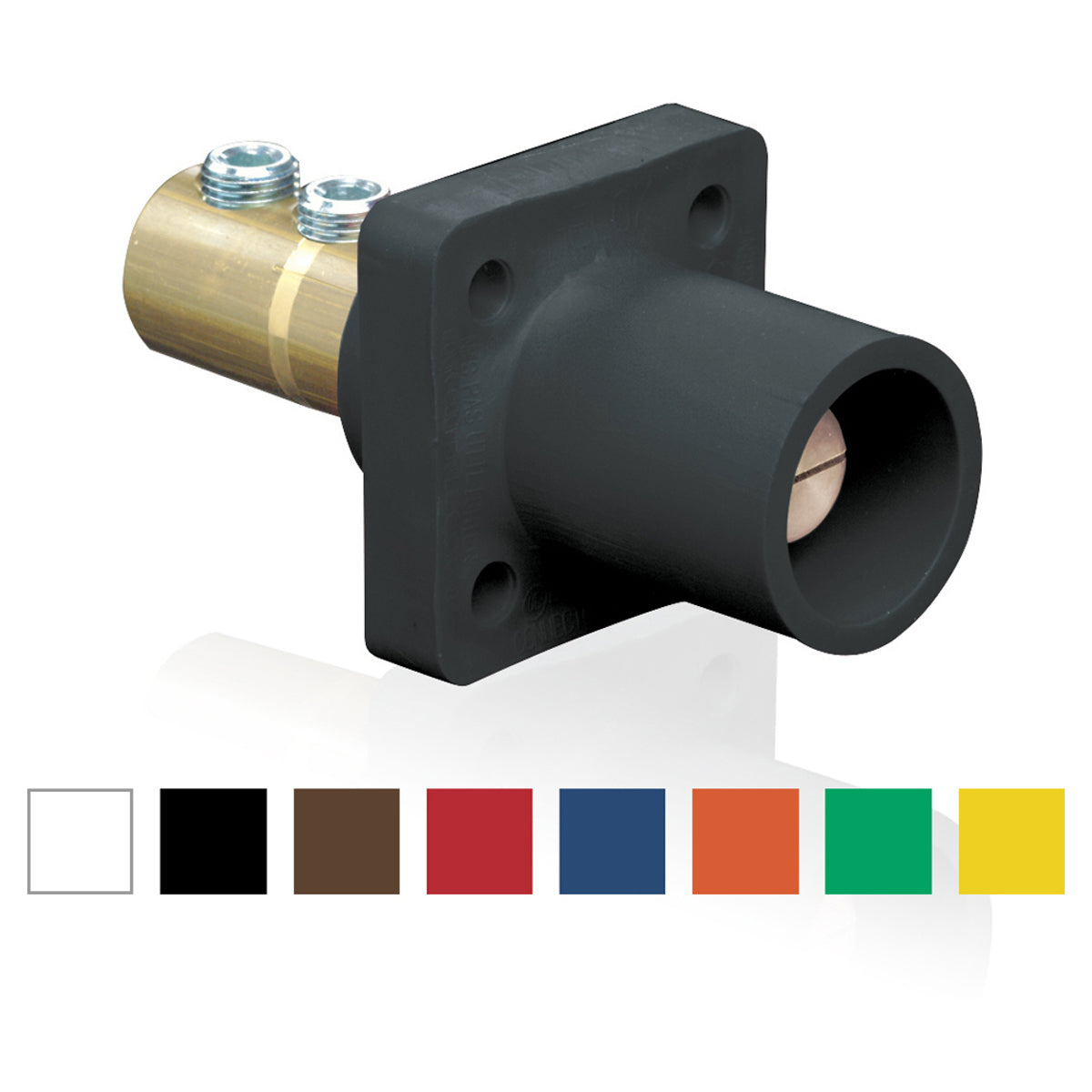

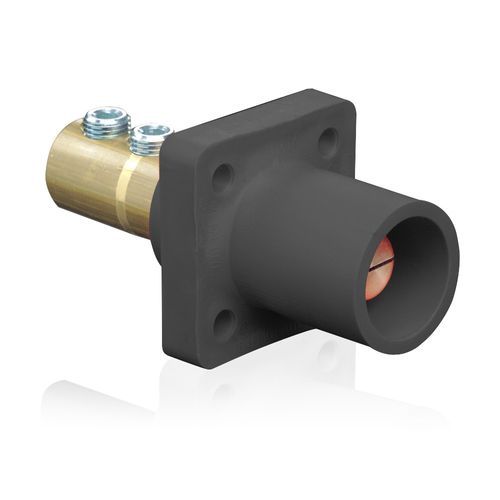

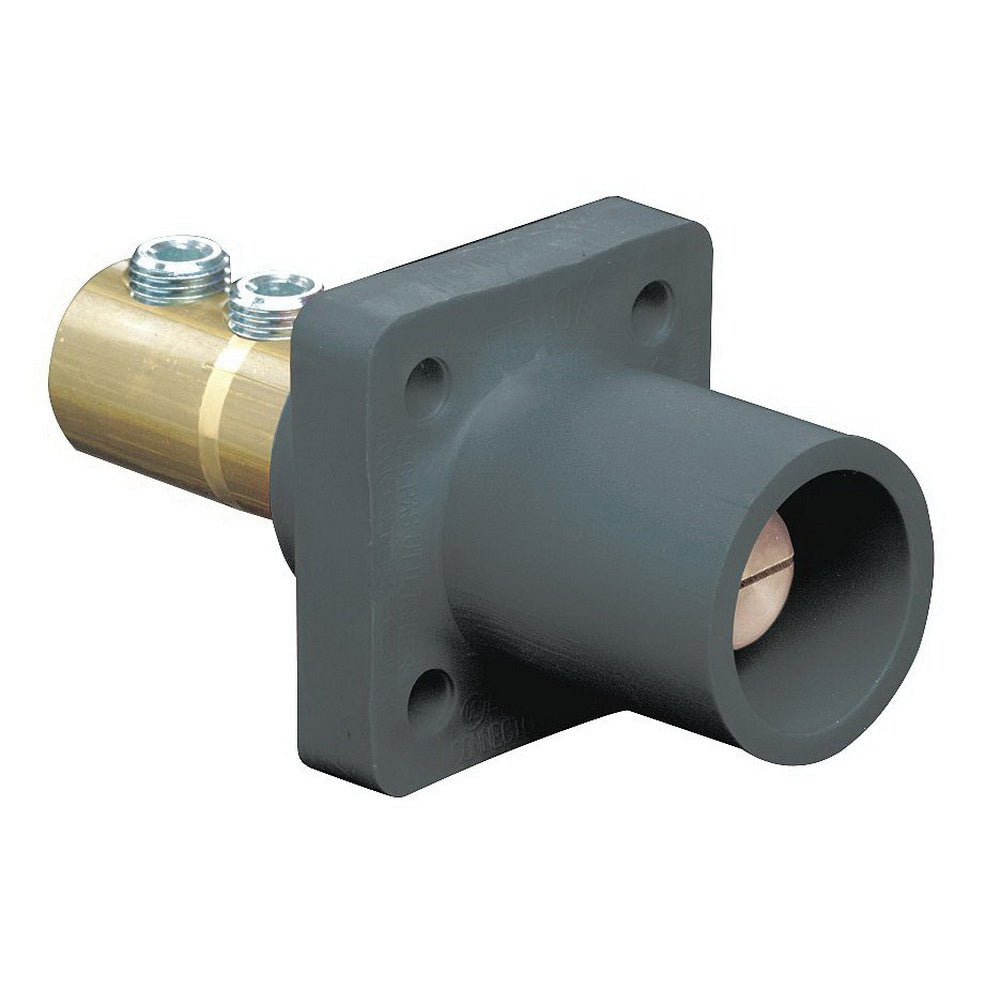

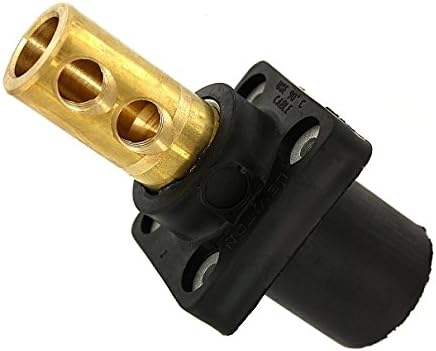

The LEVITON 16R21-UE is a 16 Series single pole cam type male panel receptacle. Rated up to 400 Amperes and 600 Volts, it features a taper nose and double set screw for secure connections. It is suitable for temporary electrical power applications, both indoor and outdoor.

• Male Panel Receptacle
• Taper Nose
• Double Set Screw

Product Highlights

The LEVITON 16R21-UE is ideal for concerts, movie making, and power distribution.

Product Information

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: 16R21-UE
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: 16R21-UE
• Manufacturer: Leviton
• Brand: Leviton
• Country of Origin: Mexico
• Made in USA: No
• Amperage Rating: 400 A
• Number of Poles: 1
• Special Features: Male Panel Receptacle, Taper Nose
• UPC: 078477716779
• GTIN: 00078477716779
• Item Type: 16 Series Single Pole Cam
• Voltage Rating: 600 V AC
• Connection Type: Double Set Screw
• Contact Material: Brass
• Housing Material: Santoprene TPV
• Mounting Type: Panel
• NEMA Rating: NEMA 3R
• Series: 16 Series
• Type: 90 deg Cam Type Male Taper Nose
• Wire Size: 1/0 to 4/0 AWG
• UNSPSC: 39121421
• Manufacturer Part Number: 16R21-UE
• Manufacturer Name: Leviton
• Mounting: Panel
• Material: Santoprene TPV Sleeve, Copper Wire Strain Relief
• Item Name: 90 Degree Male Receptacle
• Conductor Size: 1/0-4/0 AWG
• Standards: UL Listed, CSA Certified
• Sub Brand: Rhino-Hide
• Max. Amperage: 400 Amp
• Max. Voltage: 600 Volt
• Contacts: Brass
• Strain Relief: Copper Wire
• Cable Range: 2/0-4/0 AWG
• Gender: Male
• CSA Standard: 1691
• UL: 1691, 508 35k A / 600V Short Circuit Current Rating
• Model: 16R21-UE
• Global Trade Identification Number: 00078477716779
• Part Number: 16R21-UE
• Included Components: Device
• Unit Count: 1.0 Count
• Item Type Name: 16-Series Taper Nose, 90-Degree, Male Panel Receptacle, Cam-Type Connector, Black
• Compatible Devices: All
• Rated Voltage: 600V
• Color Family: Black
• No. of Poles: 1
• RoHS Compliant: Yes
