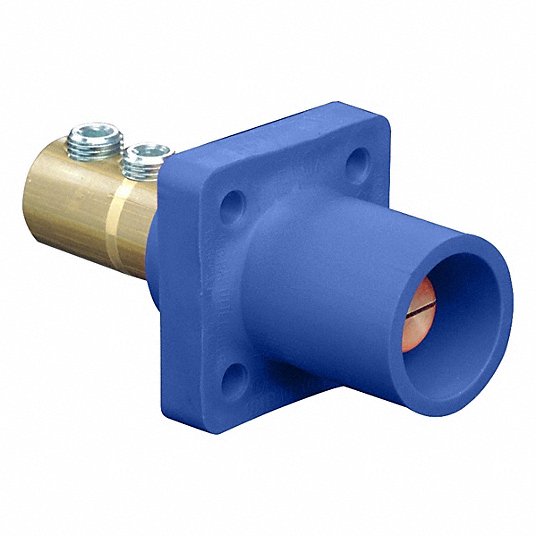

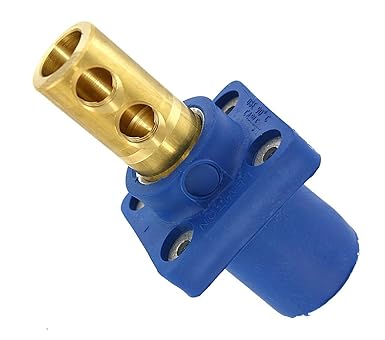

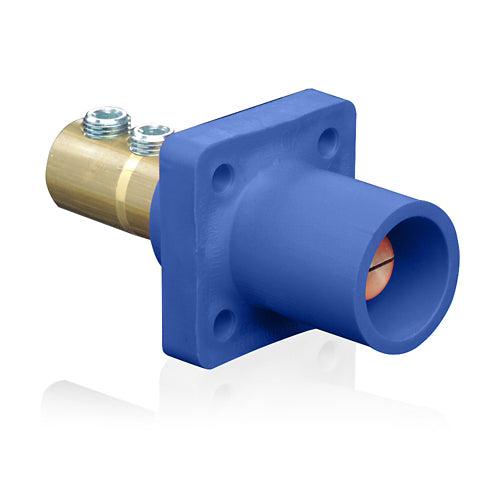

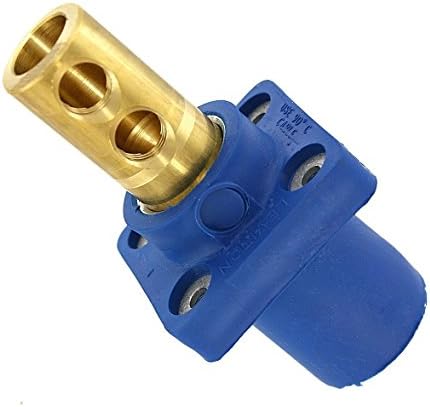

Leviton 16R21-UB 16 Series Single Pole Cam Type Male Panel Receptacle 400 Amperes

Product Description

The LEVITON 16R21-UB is a 16 Series single pole cam-type male panel receptacle designed for temporary electrical power in indoor and outdoor applications. It is rated up to 400 Amperes and 600 Volts. This receptacle features a taper nose and double set screw for secure connections.

• Intermateable and compatible with competitive cam type products
• Shatter and crack proof housing material

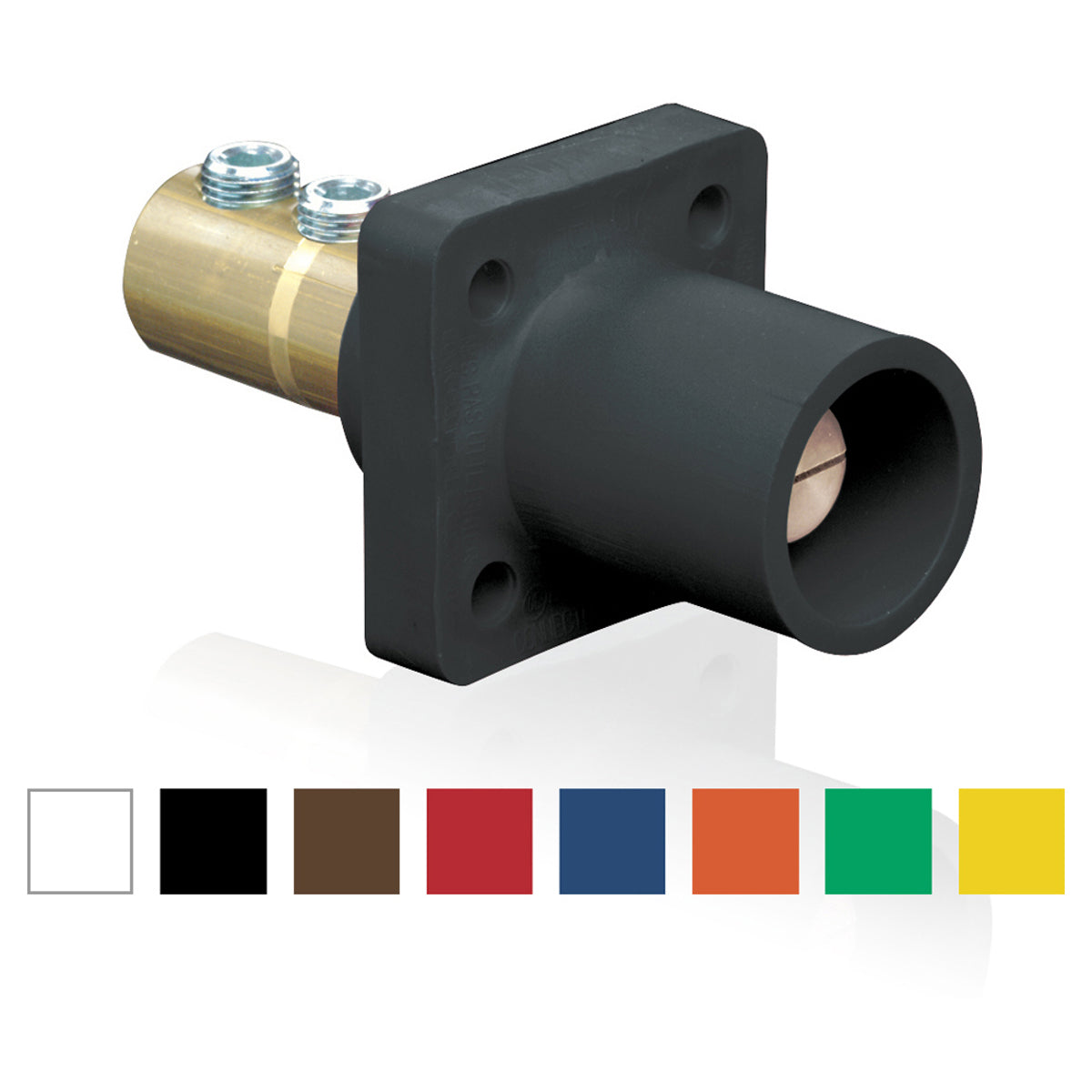

• Color-coded insulating sleeves for easy phase identification

Product Highlights

Ideal for entertainment, construction, and industrial applications requiring temporary power.

Product Information

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: 16R21-UB
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: 16R21-UB
• Manufacturer: Leviton
• Brand: Leviton
• Country of Origin: Mexico
• Made in USA: No
• Amperage Rating: 400 A
• Number of Poles: 1
• Special Features: Male Panel Receptacle, Taper Nose
• UPC: 078477716731
• GTIN: 00078477716731
• Item Type: 16 Series Single Pole Cam
• Voltage Rating: 600 VAC
• Connection Type: Double Set Screw
• Contact Material: Brass
• Housing Material: Santoprene TPV
• Mounting Type: Panel
• NEMA Rating: NEMA 3R
• Series: 16 Series
• Type: 90 deg Cam Type Male Taper Nose
• Wire Size: 1/0 to 4/0 AWG
• Max. Amperage: 400 Amp
• Max. Voltage: 600 Volt
• Cable Range: 2/0-4/0 AWG
• Gender: Male
• CSA Standard: 1691
• UL: 1691, 508 ">">– 35k A / 600V Short Circuit Current Rating
• RoHS Compliant: Yes
• Connector Type: Cam-type
• Rated Voltage: 600V
• Amps: 400
• Volts AC: 600
• Connection Orientation: Straight
• Current Rating: 400
• End Type: Taper
• Termination Type: Double Set Screw
• Wire Size Range: 2/0 AWG – 4/0 AWG
• Overall Length: 2.66
• Overall Width: 2.28
• Housing Color: Blue
