Leviton 16D33-UW 16 Series Single Pole Detachable Plug Taper Nose 600 Volts 400 Amperes

Product Description

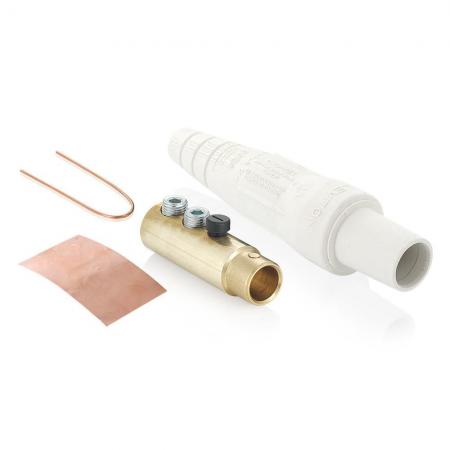

Leviton 16D33-UW is a single pole detachable plug designed for reliable connections in various applications. This plug supports a voltage rating of six hundred volts and an amperage rating of four hundred amperes. It accommodates wire sizes from two to four aught.

• Ideal for power distribution in construction and events
• Features a tapered nose for easy connection
• UL 1691 and CSA certified for safety

Product Highlights

This plug is built with a Santoprene housing and solid brass contacts for durability and effectiveness in high-demand situations.

Product Information

Standard Information

• Brand: Leviton
• MPN: 16D33-UW

Technical Specifications

• Amperage Rating: 400 A
• Voltage Rating: 600 VAC
• Wire Size Compatibility: 2/0 to 4/0 AWG
• Dimensions: 1.72 inches diameter x 6.85 inches length
• NEMA Rating: NEMA 3R
• Connection Type: Double Set Screw
• Material: Brass contacts and Santoprene housing
• Temperature Rating: 86 degrees Fahrenheit
