Leviton 16D33-UH 16 Series Single Pole Cam Type Female Detachable Plug Taper Nose 400 Amperes

Product Description

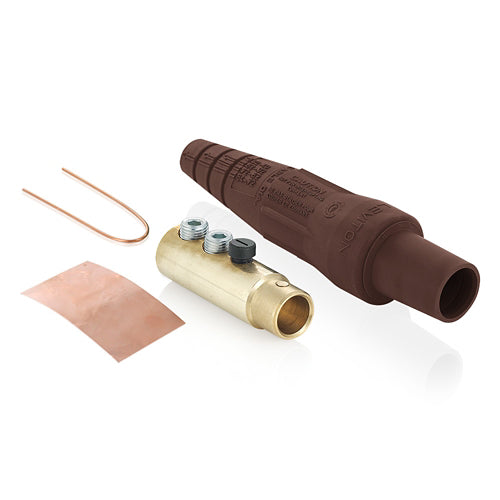

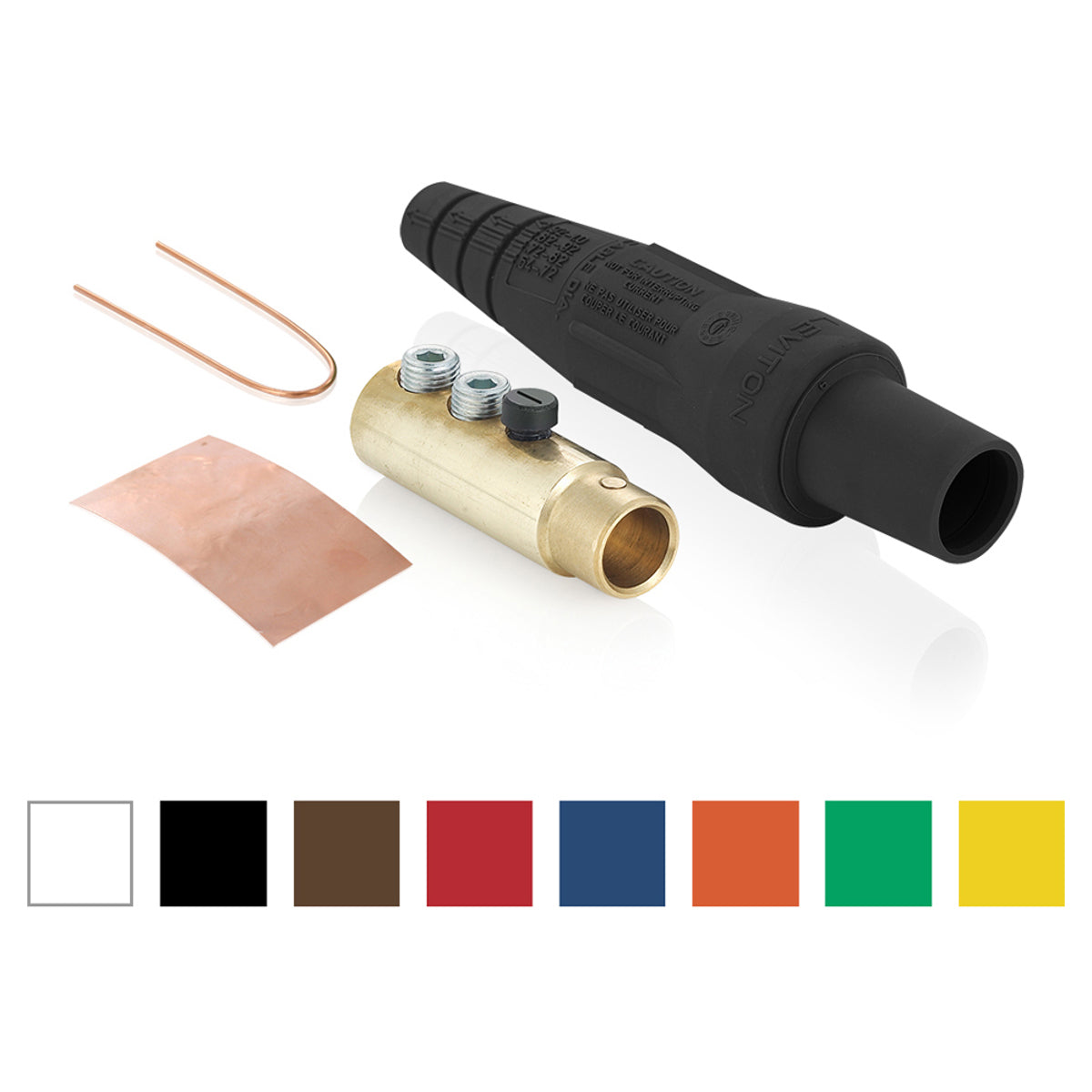

The LEVITON 16D33-UH is a 16 Series single pole cam type female detachable plug with a taper nose. Rated up to 400 Amperes and 600 Volts, it features a thermo-plastic screw and double set screw termination, accommodating a cable range of 1/0 to 4/0. It is suitable for commercial and industrial applications.

• ROHS Compliant
• Double Set Screw Termination
• Intermateable with competitive cam type products

Product Highlights

The Leviton 16D33-UH female plug is designed for durability and superior service in demanding conditions. It is ideal for power distribution in concerts, movie making, and other applications.

Product Information

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: 16D33-UH
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: 16D33-UH
• Manufacturer: Leviton
• Brand: Leviton
• Country of Origin: Mexico
• Made in USA: No
• Amperage Rating: 400 A
• Application: Commercial/Industrial
• Number of Poles: 1
• Special Features: ROHS COMPLIANT
• UPC: 078477715857
• GTIN: 00078477715857
• Item Type: FEMALE DETACHABLE PLUG
• Voltage Rating: 600 VAC/VDC
• Cross Reference Products: HBL400FBN
• UNSPSC: 39121421
• Connection Type: Double Set Screw
• Contact Material: Brass
• Housing Material: Santoprene TPV
• Mounting Type: Threaded
• NEMA Rating: NEMA 3R
• Series: 16 Series
• Type: 1-Pole Cam Type Taper Nose
• Wire Size: 2 to 4/0 AWG
• Manufacturer Item Status: Active
• Brand Name: Leviton
• Alternative Part Number: 13220554
• Amperage Rating UOM: A
• Country: USA
• Country Of Origin: MX
• IDEA Index ID: 13220554
• Temperature Rating UOM: deg F
• Voltage Rating UOM: VAC
• Wire Size UOM: AWG
• IGCC: 4586
• Vendor: 78477
• Max. Amperage: 400 Amp
• Max. Voltage: 600 Volt
• Contacts: Brass
• Strain Relief: Copper Wire
• Cable Range: 2/0 – 4/0 AWG
• Gender: Female
• CSA Standard: 1691
• UL: 1691, 508 – 35k A / 600V Short Circuit Current Rating
• No. of Poles: 1
• Connector Gender: Female
• Product Name: Female Plug, 2/0 - 4/0 AWG, Double Set Screw Termination
• Product Type: Connector
• Connector Type: Double Set Screw
• Standards/Approvals: RoHS Compliant|UL 1691|CSA Certified
