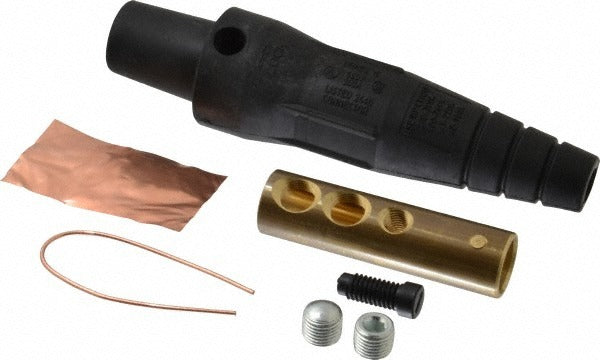

Leviton 16D31-UE Cam Female Connector 300A 600V 2-2/0 Awg

Product Description

The LEVITON 16D31-UE is a single-pole, female cam-style plug connector rated for 300 amps at 600 volts. It accepts wire sizes from 2 AWG to 2/0 AWG and uses a double set screw termination method for a secure, vibration-resistant connection. Built to NEMA 3R standards, it is suitable for outdoor and wet-location use where protection from rain and sleet is required. The overall length is 6.85 inches. Electricians and industrial maintenance technicians install this connector in temporary power distribution, generator hookups, and other high-current feeder applications where quick-connect cam-style fittings are specified.

This connector is designed for use in high-ampacity single-pole cam connector systems commonly found in temporary power distribution panels, rental generators, entertainment industry power, and industrial plant maintenance scenarios. The NEMA 3R enclosure rating makes it appropriate for outdoor service entrances and protected exterior installations. The double set screw termination accommodates the range of conductor sizes typical in 300-amp feeder work, from No. 2 through 2/0 AWG copper or aluminum conductors as permitted by local code.

Key Features

• 300-amp, 600-volt rating suitable for high-current feeder and temporary power applications
• Double set screw termination secures conductors from 2 AWG to 2/0 AWG
• NEMA 3R rating provides protection for outdoor and rain-exposed installations
• Female cam-style single-pole design for quick connect and disconnect under load where permitted
• Overall length of 6.85 inches accommodates standard cam connector housings
• Listed to UL 1691 and CSA standards for verified safety compliance

Compatibility

Designed as an OEM-style replacement or new-installation single-pole cam connector for use in 300-amp, 600-volt single-pole cam connector systems. No specific compatible model numbers were provided in the product data.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize and lock out the circuit before making any terminations. Strip conductors to the manufacturer-recommended length, insert fully into the set screw barrel, and tighten both set screws to secure the conductor. Inspect the housing and contacts for damage before placing the connector into service.
