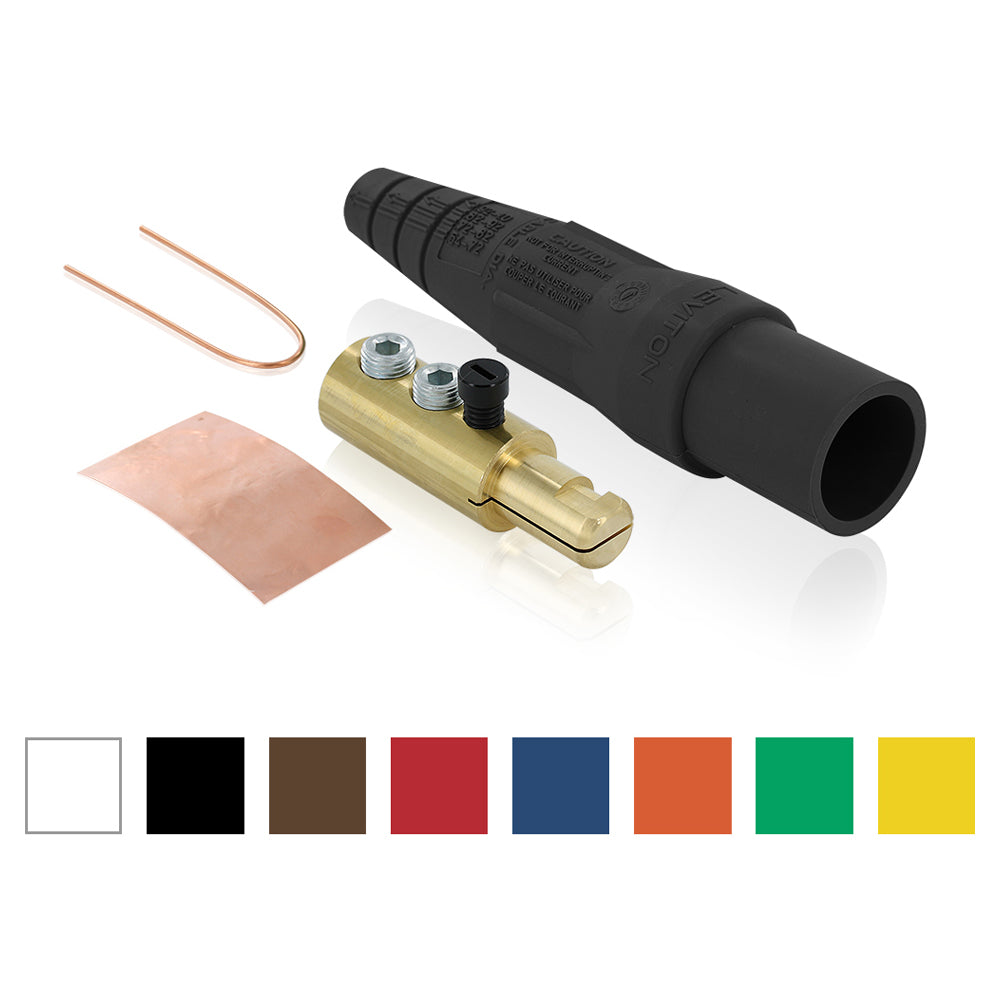

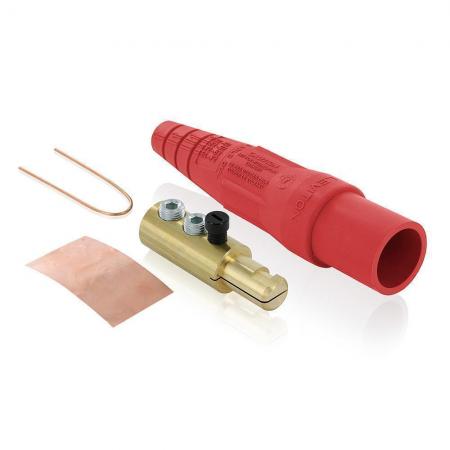

Leviton 16D24-UR 16 Series Single Pole Cam Type Male Detachable Plug 600 VAC 400 Amperes Continuous

Product Description

The Leviton 16D24-UR is a single pole cam type male detachable plug. This component is rated for six hundred volts and can handle up to four hundred amperes of continuous current. It fits wire sizes from two to four-aught AWG. The plug features a tapered nose design and is equipped with double set screws for secure connections.

• UL and CSA certified for safety and reliability
• Constructed with durable Santoprene TPV housing
• Intermateable with other cam type plugs for ease of use

Product Highlights

This detachable male plug is ideal for industrial applications where reliable power connections are essential. It is suitable for use in sound stages, movie production, and various other power distribution environments.

Product Information

Standard Information

• Manufacturer: Leviton
• Made in USA: No

Technical Specifications

• Voltage Rating: 600 VAC
• Amperage Rating: 400 A
• Connection Type: Double Set Screw
• Contact Material: Brass
• Housing Material: Santoprene TPV
• NEMA Rating: NEMA 3R
• Wire Size: 2 to 4/0 AWG
• Series: 16 Series
