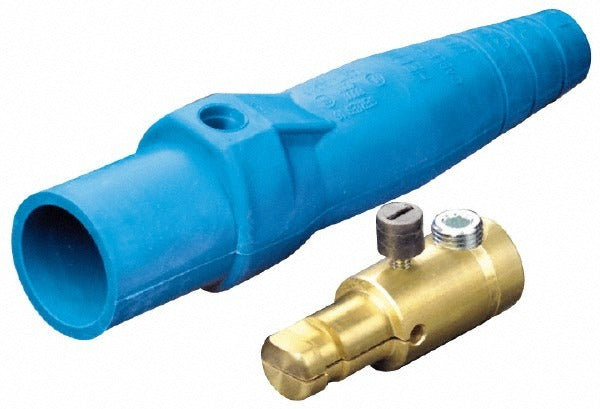

Leviton 16D23-UG Single Pole Cam Plug 400A 600V

Product Description

The LEVITON 16D23-UG is a male single pole cam-style plug connector rated for 400 amps at 600 volts. It accepts wire sizes from 1/0 to 4/0 AWG and uses a single set screw termination method for a secure, low-resistance connection. The connector carries a NEMA 3R rating, making it suitable for use in wet or outdoor-accessible locations where protection from rain and sleet is required. At 7.01 inches in overall length and weighing 0.9 pounds, this plug is built for demanding temporary and permanent power distribution applications. Licensed electricians handling high-ampacity connections in industrial, commercial, or utility work are the primary installers.

This cam connector is used in high-current power distribution applications including generator connections, load banks, portable power systems, and temporary power setups at commercial and industrial job sites. The NEMA 3R enclosure rating makes it appropriate for outdoor installations where the connector may be exposed to rain. The green color coding identifies this connector in accordance with cam connector color-coding conventions used in distribution systems. It is sold individually.

Key Features

• 400 amp continuous rating suitable for high-ampacity power distribution
• 600 volt rating supports standard commercial and industrial supply voltages
• Single set screw termination accommodates 1/0 to 4/0 AWG conductors
• NEMA 3R rated for outdoor and rain-exposed installation locations
• Cam-style locking body provides positive, vibration-resistant mating
• CSA Listed and UL Listed to standard 1691

Compatibility

Designed for use with standard single pole cam connector systems rated at 400 amps and 600 volts. Compatible mating bodies and connectors must conform to cam-style single pole connector configurations. Verify color coding and amperage rating of all mating components before installation.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize and lock out the circuit before making or breaking any cam connector connection. Ensure the conductor is properly stripped and seated fully in the barrel before tightening the set screw to the connector manufacturer's specification. Do not exceed the 4/0 AWG maximum wire size or the 400 amp continuous current rating.
