LEVITON 16775I ODS10-IDW INFR OCCPNCY SNSORVLT 120/277V

Product Description

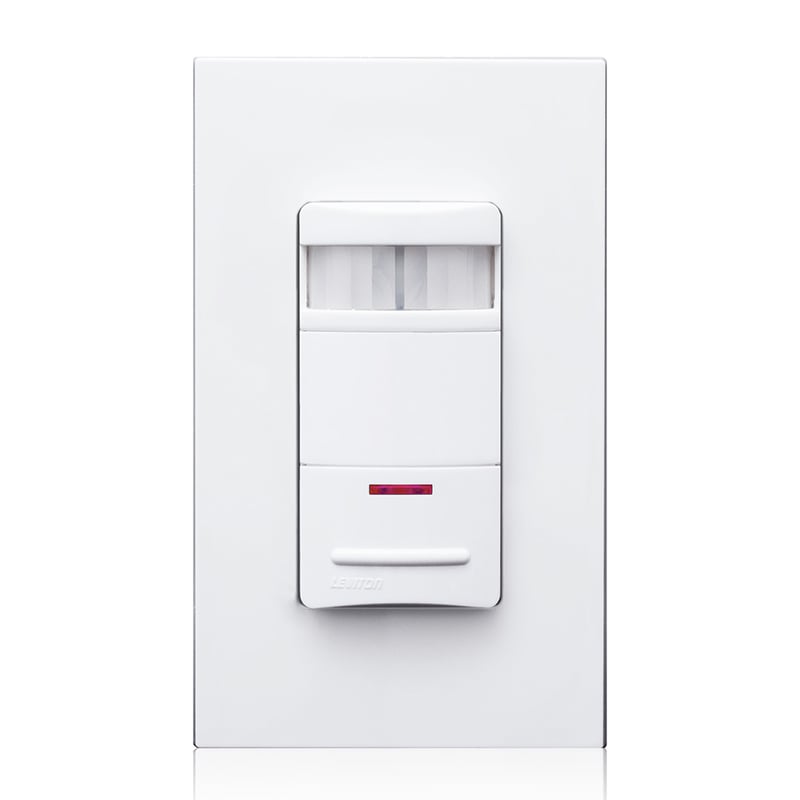

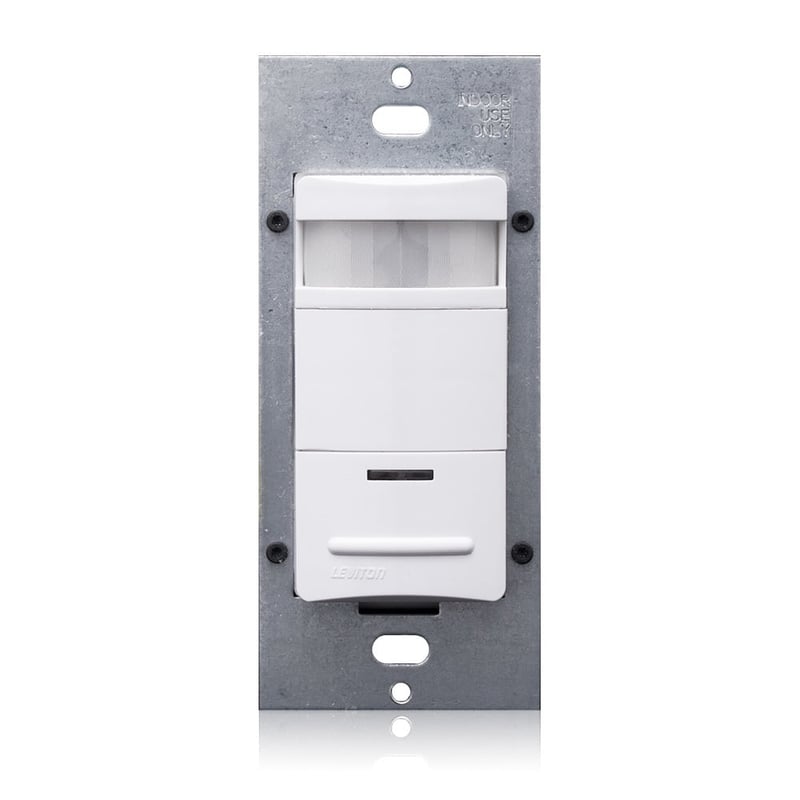

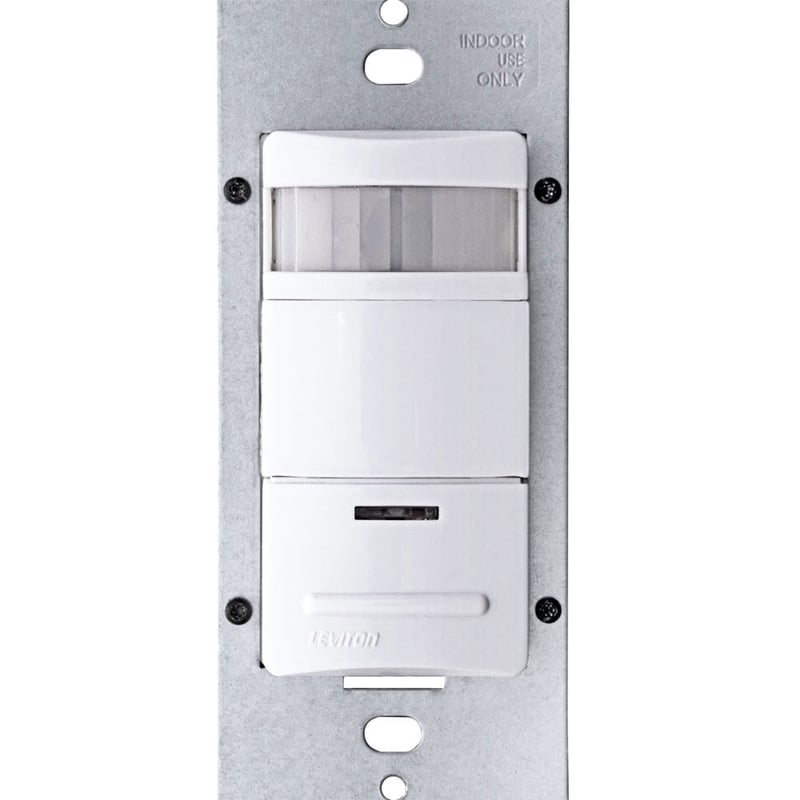

The LEVITON ODS10-IDW is a Decora Wall Switch Occupancy Sensor designed for both commercial and residential use. It operates at a voltage range of 120 to 277 volts and manages lighting effectively by using passive infrared technology. The sensor automatically turns lights on when motion is detected and off when no motion is present.

• Field of view covers up to 2100 square feet.
• Manual wall switch operation is possible.
• Time delay settings can be adjusted from thirty seconds to thirty minutes.

Product Highlights

This occupancy sensor fits into standard wall boxes and does not require a neutral wire for installation. It is suitable for a variety of settings, including offices, classrooms, and hallways, due to its extensive coverage and reliable detection capabilities.

Product Information

Standard Information

• Brand: LEVITON
• MPN: 16775I
• UPC: 07847701018

Technical Specifications

• Application: Commercial
• Power Consumption: 100 @ 120V; 250 @ 277V
• Supply Voltage: 120/230/277 VAC
• Frequency Rating: 50/60 HZ
• Mounting: Wall
• Environmental Conditions: Operating Temperature (0 to +50 DEG C); Storage Temperature (-10 to +85 DEG C); Humidity (20% to 90% Non-Condensing)
• Dimensions: 46 H x 1.75 W x 1.85 D inches
