Product Description

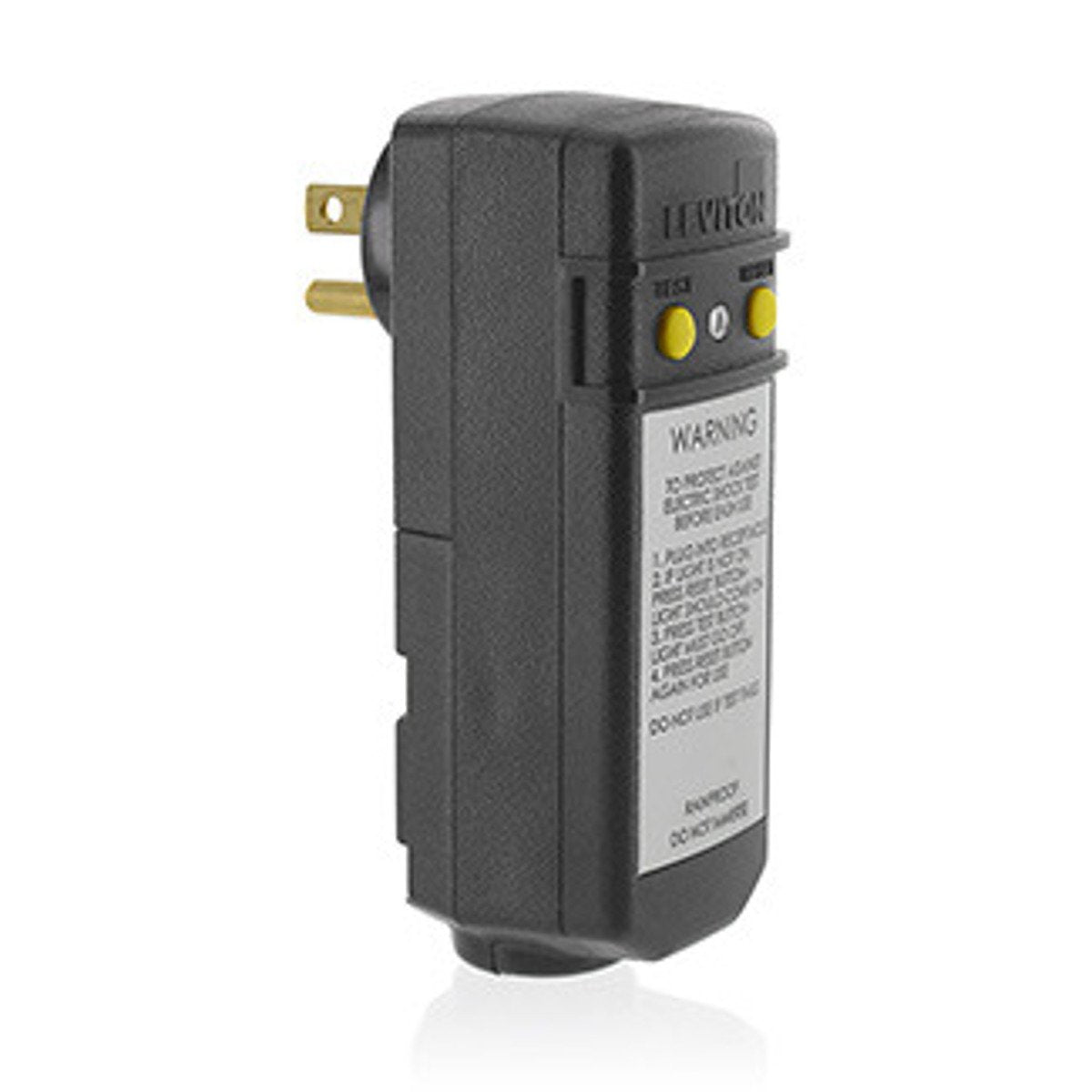

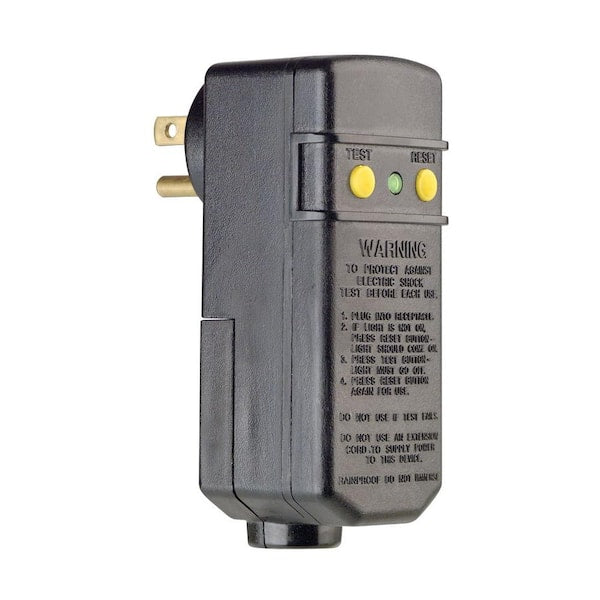

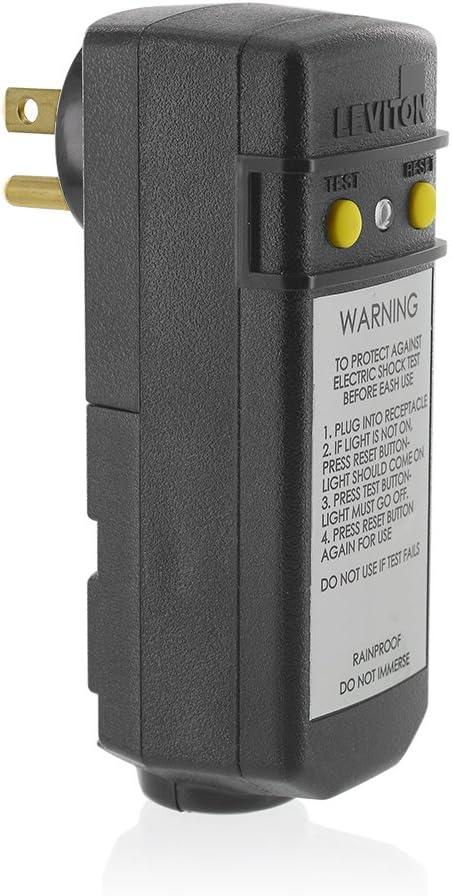

The LEVITON 16693 GFCI Right Angle Plug is an automatic reset GFCI device. Fully OSHA compliant, it is suitable for job sites and temporary power applications such as recreation vehicles, marine vehicles, and portable generators. It provides ground fault and open neutral protection, keeping cords snug against the wall.
- Automatic reset GFCI device
- Fully OSHA compliant for job sites
- Provides ground fault and open neutral protection
Product Highlights
This compact, grounded GFCI plug is ideal for commercial and industrial applications requiring reliable ground fault protection.
Product Information
Standard Information
-
Brand: LEVITON
-
Manufacturer Part Number: 16693
-
Country of Origin: China
Technical Specifications
-
NEMA: 5-15P,WD-6
-
Type: Automatic Reset
-
Brand: Leviton
-
Width: 1.675 in
-
Height: 4.482 Inch
-
Length: 1.729 Inch
-
Voltage: 120 Volt
-
Amperage: 15 Amp
-
Material: Nylon
-
Standard: ANSI C-73
-
Grounding: GFCI Ground Fault
-
Blade Type: Brass
-
Horsepower: 3/4 hp
-
Trip Point: 5mA Plus Or Minus 1mA
-
Wire Count: 3
-
Applications: Commercial and Industrial
-
Body Material: Polycarbonate
-
Terminal Size: 18-12 AWG
-
Number of Poles: 2 Pole
-
Number of Wires: 3 Wire
-
Contact Material: Brass
-
Interrupt Rating: 2 KAMP
-
Flamability Class: Rated V-2 Per UL 94
-
Temperature Rating: -35 degrees C to 66 degrees C
-
Operating Temperature: -35 degrees C
-
Environmental Conditions: UL 94 Requirements, V2 Rated Flammability
-
Catalog Number: 16693
-
Manufacturer: Leviton
-
Amperage Rating: 15 A
-
Voltage Rating: 120 VAC
-
Frequency Rating: 60 Hz
-
Cord Diameter: 0.33 to 0.597 in
-
Dimensions: 1.729 in L x 1.675 in W x 4.482 in H
-
Terminal Type: Blade
-
NEMA Rating: NEMA 5-15P
-
RoHS Compliant: Yes
-
Current Interrupting: 2 kA
-
Pole: 2
-
Trip Level: 5mA plus or minus 1mA
-
Wire: 3
-
CSA C22.2: File LR-57811
-
NOM: 057
-
UL 943: Class A (GFCI)
-
UL Listed: E-48380
-
Grade: Marine
-
Mounting Type: Cable
-
Primary Type: Straight Blade
-
Termination: screw
-
Wire Size: 12-18 AWG
