Leviton 16441-W Decora Plus Single Receptacle 20 Amp 250 Volt NEMA 6-20R

Product Description

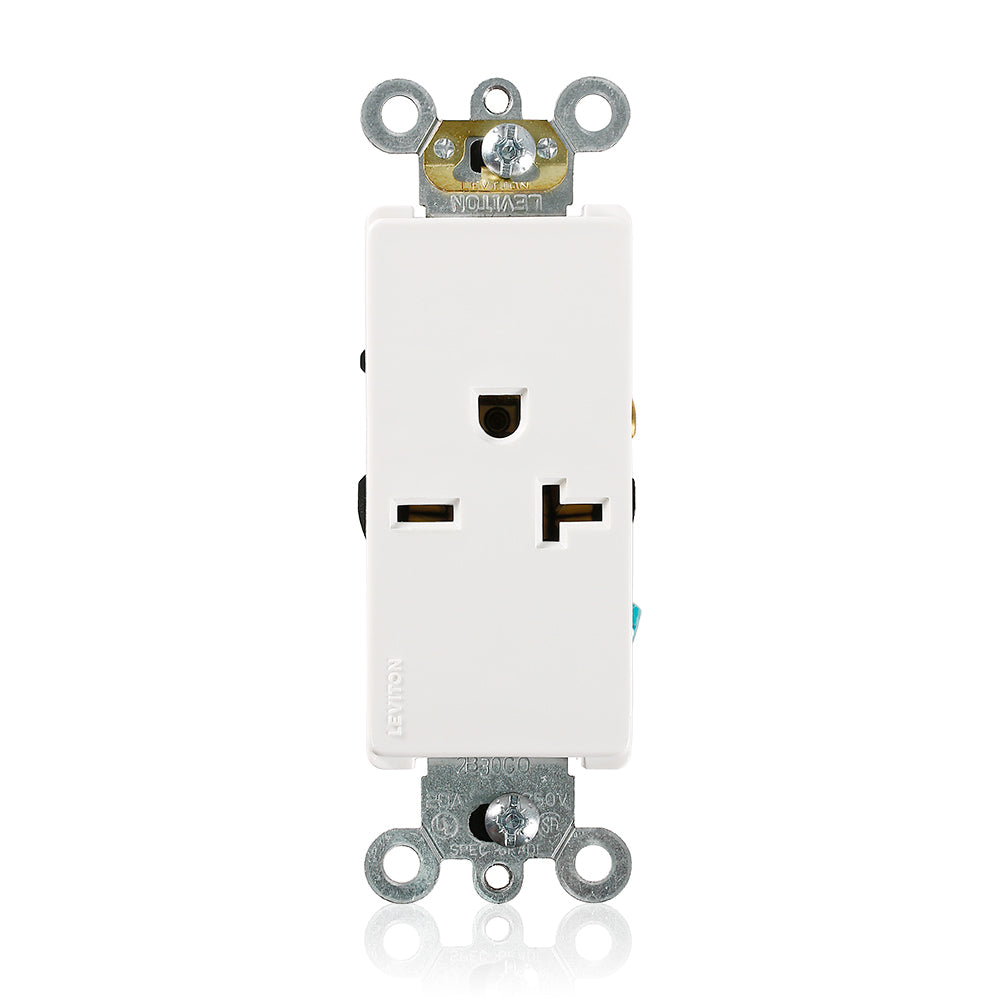

Leviton 16441-W is a Decora Plus single receptacle rated for twenty amps at two hundred fifty volts, compliant with NEMA 6-20R specifications. This commercial-grade electrical device is designed for side wiring and features a self-grounding mechanism for enhanced safety. The construction includes thermoplastic material, ensuring durability in demanding environments.

• Rated for 20 Amps and 250 Volts
• Compliant with NEMA 6-20R standard
• Self-grounding and side wired for easy installation

Product Highlights

This receptacle is suitable for commercial applications including hotels, schools, and hospitals, ensuring reliable power access.

Product Information

Standard Information

• Manufacturer: Leviton
• Catalog Number: 16441-W

Technical Specifications

• Amperage: 20 A
• Voltage Rating: 250 VAC
• NEMA Rating: 6-20R
• Horsepower Rating: 2 hp
• Number of Wires: 3
• Number of Poles: 2
• Mounting Type: Wall Box
• Temperature Rating: -40 to +60 degrees Celsius
• Wire Size Compatibility: 14-10 AWG
• Material: Thermoplastic
