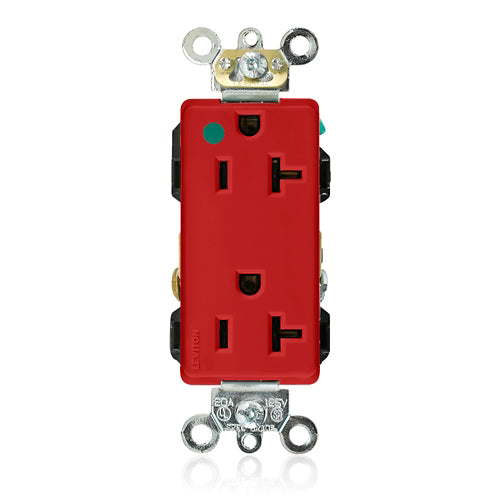

Leviton 16362-hgr 20A Hospital Grade Duplex Receptacle

Product Description

The LEVITON 16362-hgr is a 20 amp, 125 volt hospital grade duplex receptacle designed for demanding commercial and institutional electrical installations. Rated NEMA 5-20R and built to a 2-pole, 3-wire configuration, this self-grounding outlet meets the extra heavy-duty requirements of hospital grade listings. The smooth Decora Plus face profile integrates cleanly into standard Decora wallplate systems. The red body color is the recognized industry indicator for critical branch circuits in healthcare facilities, making identification straightforward during inspections and service calls. Licensed electricians are the primary installers for this device.

This receptacle is suited for hospital, clinic, and other healthcare facility wiring where hospital grade certification is required on patient care receptacles and critical branch circuits. It also sees use in laboratories, data centers, and other facilities that specify hospital grade devices for added reliability and ground integrity. Both back-wire and side-wire termination options are supported, providing flexibility during rough-in and device installation in various box configurations.

Key Features

• Hospital grade listing for use on critical branch circuits in healthcare and institutional settings
• Self-grounding design eliminates need for a separate grounding clip when used with compatible metal boxes
• Accepts back-wire or side-wire connections for installation flexibility
• NEMA 5-20R configuration accepts both 15 amp and 20 amp plug blades
• Smooth Decora Plus face compatible with standard Decora wallplates
• Red body color identifies critical branch circuit receptacles per healthcare wiring conventions

Compatibility

Designed as an OEM-style hospital grade replacement or new-installation receptacle for NEMA 5-20R applications in standard single-gang electrical boxes.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. Always shut off the branch circuit breaker and verify the circuit is de-energized with a non-contact voltage tester before wiring. Torque all screw terminals to the value marked on the device or listed in the installation instructions. Hospital grade receptacles on patient care branch circuits are subject to additional testing and inspection requirements under NFPA 99.

Technical Specifications

• Amperage: 20 amps
• Voltage: 125 volts
• NEMA Configuration: 5-20R
• Poles: 2-pole
• Wires: 3-wire
• Wiring Method: Back wire or side wire
• Grounding: Self-grounding
• Grade: Hospital grade
• Color: Red
• Face Style: Decora Plus smooth face

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: 16362-hgr
