Leviton 16362-HGG Decora Plus Duplex Receptacle 20 A 125 V (Each)

Product Description

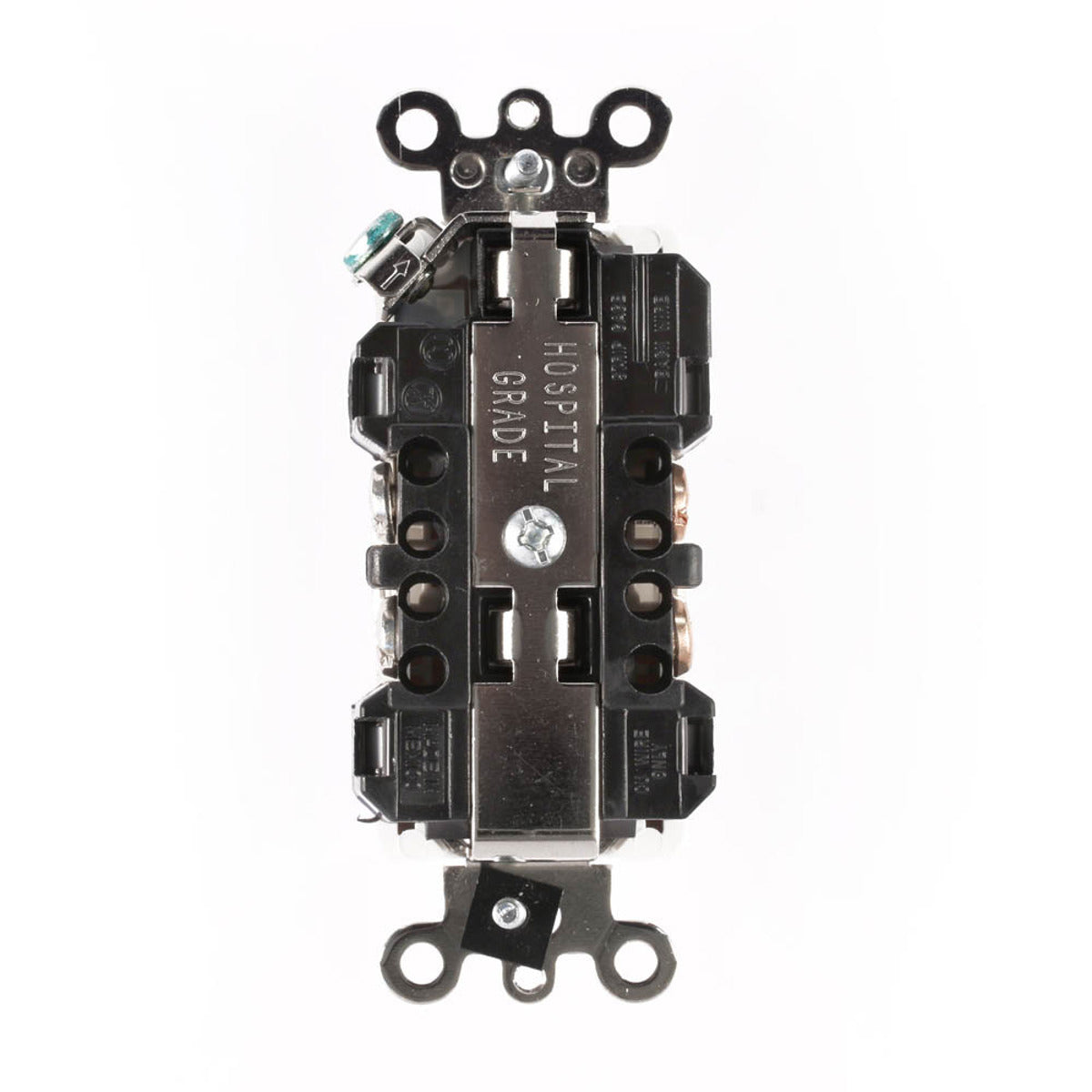

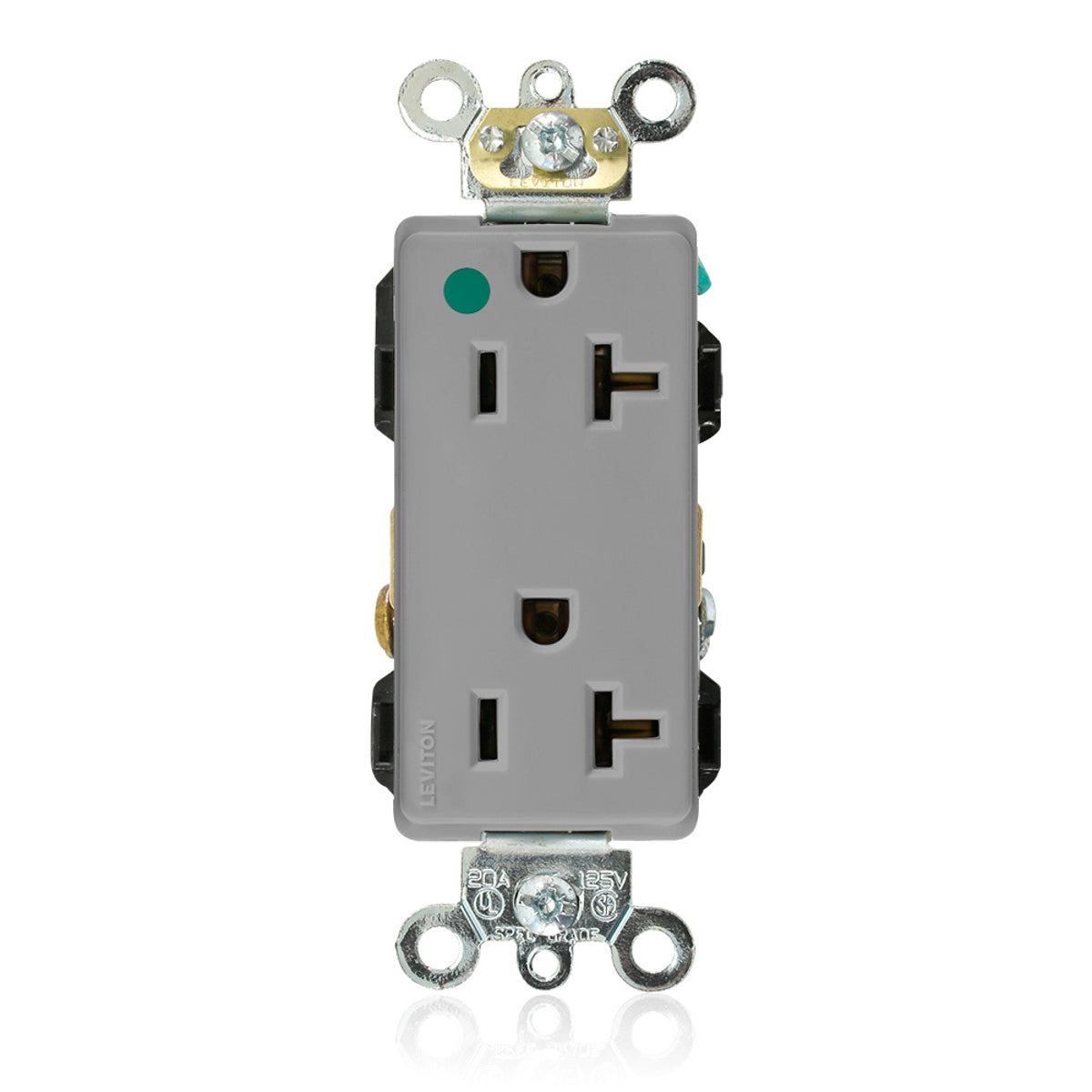

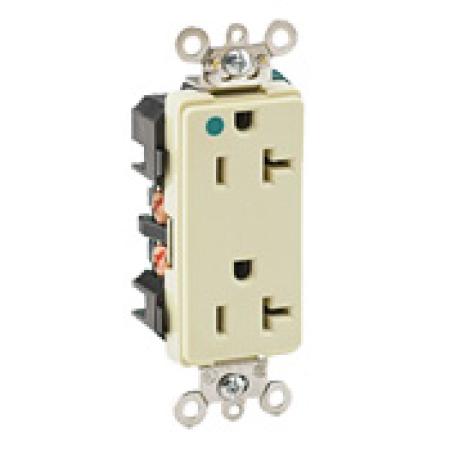

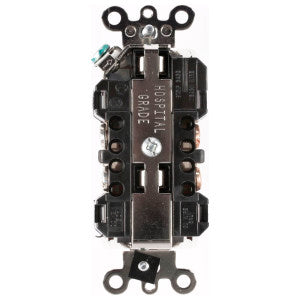

Leviton 16362-HGG is a Decora Plus extra heavy-duty hospital-grade duplex receptacle rated 20 A, 125 V, NEMA 5-20R. The self-grounding device accepts back or side wiring and accommodates 14-10 AWG conductors. Constructed of nylon with brass triple-wipe contacts and a zinc-plated steel strap, it is rated for -40 to 60 deg C operation and meets UL498HG, CSA C22.2 and NEMA/ANSI standards for commercial and hospital installations.

• Extra heavy-duty hospital-grade Decora Plus duplex receptacle, NEMA 5-20R, 20 A 125 V
• Self-grounding with back or side wire terminals; accepts 14-10 AWG conductors
• Nylon construction, brass triple-wipe contacts, 2000 V dielectric withstand and -40 to 60 deg C rating

Product Highlights

Hospital-grade Decora Plus duplex receptacle, 20 A 125 V, self-grounding, back/side wired for commercial and healthcare installations.

Product Information

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: 16362-HGG
• Country of Origin: Mexico

Technical Specifications

• Manufacturer: Leviton
• Manufacturer Part Number: 16362-HGG
• Brand: Leviton
• Product Type: Decora Plus Duplex Receptacle
• Sub Brand: Decora Plus
• Amperage Rating: 20 A
• Voltage Rating: 125 V
• NEMA Rating: 5-20R
• Number of Poles: 2
• Number of Wires: 3
• Wire Size: 14-10 AWG
• Connection Type: Back or side wire (self-grounding)
• Mounting Type: Wall
• Material: Nylon
• Operating Temperature: -40 to 60 deg C
• Dielectric Withstand: 2000 V per UL498
• Flammability Rating: UL94 V-2
• Standards/Certifications: NEMA WD-1/WD-6; ANSI C-73; NOM 057; CSA C22.2 No. 42 (File 152105); UL498HG (File E13399)
• Grade: Extra heavy-duty hospital grade
• Grounding: Self-grounding
• Terminal Type: Back/side wire
• UPC: 078477818787
• Country of Origin: Mexico
